LOWLANDER HD MK2 & WIDEBODY MANURE SPREADER – INSTRUCTION & SPARES MANUAL
Page 58

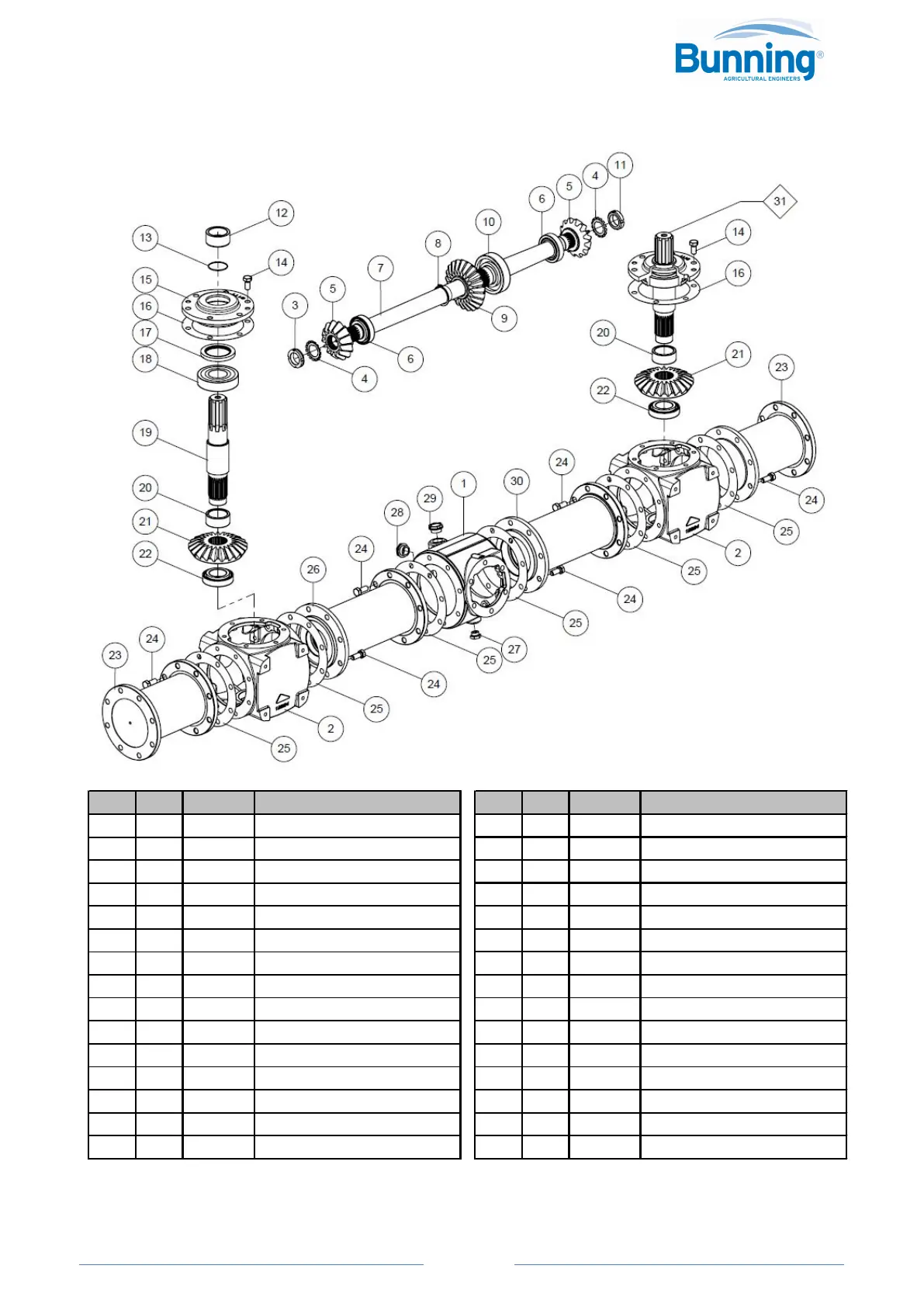

4.10 GEARBOX SRT18-1000/590/520 BACK GEARBOX – B3511 ALL HBD MACHINES
KEY QTY
DESCRIPTION KEY QTY
DESCRIPTION
1 1 B3401 CASING 16 2 B3490 GASKET
2 2 B3418 AUGER GEAR CASE 17 2 SL195 SEAL
3 1 B3510 NUT LH THREAD 18 2 BR405 BEARING
4 2 B3520 WASHER 19 2 B3444 SHAFT
5 2 B3459 PINION GEAR 20 2 B3480 SPACER
6 2 BR175 BEARING 21 2 B3469 CROWN GEAR
7 1 B3449R CROSS SHAFT 22 2 BR180 BEARING
8 1 B4020 CIRCLIP 23 2 B3413 OUTER CASE SECTION
9 1 B3464 PINION GEAR 24 48 73125 BOLT M14x35
10 1 BR410 BEARING 25 6 B3492 GASKET
11 1 B3512 NUT 26 1 B3415R INNER CASE SECTION
12 2 B3482 SLEEVE 27 1 B3990 DRAIN BUNG Ø1/2"
13 2 B3939 O RING 28 1 B3996 SIGHT GLASS
14 12 73124 BOLT M14x30 29 1 B3998 BREATHER PLUG Ø1"
15 2 B3420 TOP PLATE 30 1 B3416R INNER CASE SECTION
