LOWLANDER HD MK2 & WIDEBODY MANURE SPREADER – INSTRUCTION & SPARES MANUAL
Page 59

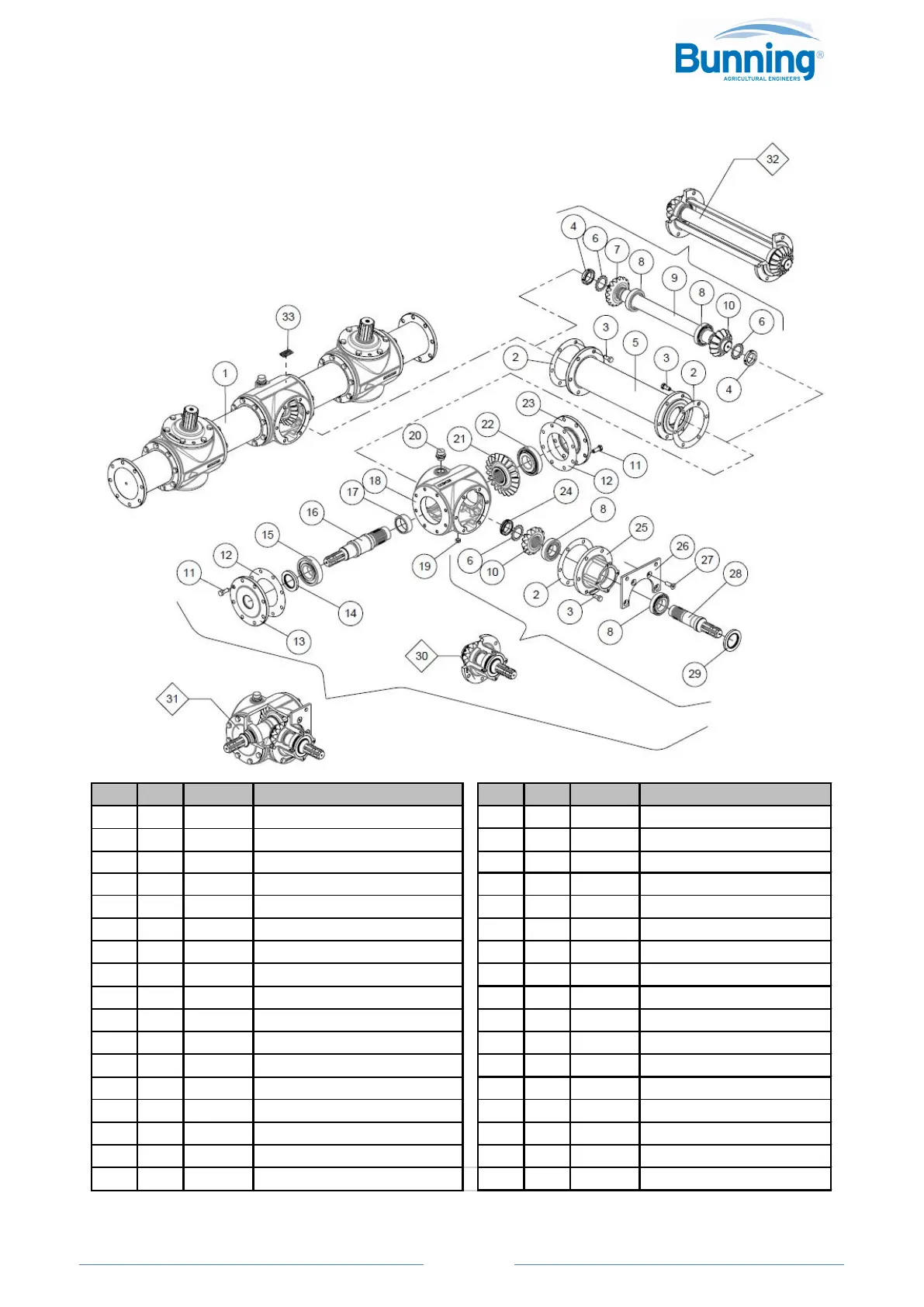

4.11 GEARBOX SRT20-1000/590/520 – B3188 WB HBD MACHINES OPTION
KEY QTY
DESCRIPTION KEY QTY
DESCRIPTION
1 1 B3189 BACK GEARBOX (SEE Pg 60) 18 1 B3701 CENTRAL HOUSING
2 3 B3714 GASKET 19 1 B3993 OIL PLUG Ø1/2"
3 14 73125
4 2 B3709 RIGHT THREADED RING 21 1 B3707 GEAR
5 1 B3729 SPACER L = 570 22 1 BR156 BEARING
6 3 B3705 WASHER 23 1 B3732 BLIND FLANGE
7 1 B3472 BEVEL PINION 24 1 B3704 LEFT THREADED RING
8 4 BR185 BEARING 25 1 B3719 HUB
9 1 B3447 SHAFT 26 1 B3733 SUPPORT PLATE
10 2 B3706 BEVEL PINION 27 4 73128 BOLT M14x45
11 16 73127 BOLT, HEX-HD M14x40 28 1 B3722 INPUT SHAFT
12 2 B3718 GASKET 29 1 SL190 OIL SEAL DL
13 1 B3730 FLANGE 30 1 B3725 COMPLETE HUB
14 1 SL180 OIL SEAL DL 31 1 B3734 COMPLETE GEARBOX
15 1 BR412 BEARING 32 1 B3735 COMPLETE SPACER
16 1 B3731 OUTPUT SHAFT 33 1 IDENTIFICATION PLATE
17 1 B3713 SPACER
