LOWLANDER HD MK2 & WIDEBODY MANURE SPREADER – INSTRUCTION & SPARES MANUAL
Page 60

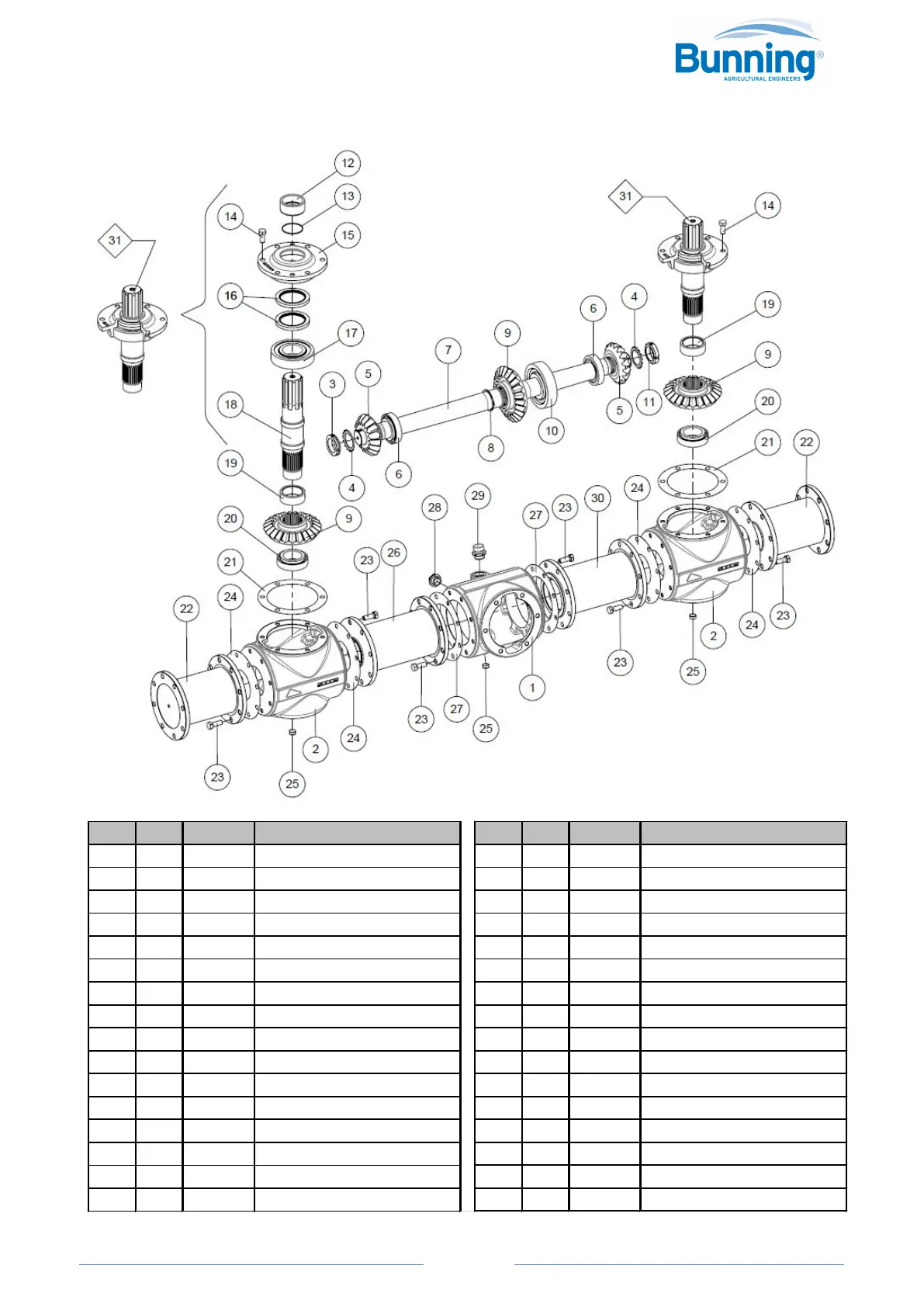

4.12 GEARBOX SRT20-1000/590/520 BACK GEARBOX – B3189 WB HBD MACHINES OPTION
KEY QTY
DESCRIPTION KEY QTY
DESCRIPTION
1 1 B3425 CENTRAL CASING 17 2 BR415 BEARING
2 2 B3426 LATERAL CASING 18 2 B3712 SHAFT
3 1 B3704 NUT LH THREAD 19 2 B3713 SPACER
4 2 B3705 WASHER 20 2 BR232 BEARING
5 2 B3472 PINION GEAR 21 2 B3714 GASKET
6 2 BR185 BEARING 22 2 B3726 OUTER CASE SECTION
7 1 B3443 CROSS SHAFT L=1011 23 48 73127 BOLT M14x40
8 1 B4021 CIRCLIP 24 4 B3716 GASKET
9 3 B3473 CROWN GEAR 25 3 B3993 DRAIN BUNG Ø1/2"
10 1 BR418 BEARING 26 1 B3727 INNER CASE SECTION RH
11 1 B3709 NUT RH THREAD 27 2 B3493 GASKET
12 2 B3710 SPACER SLEEVE 28 1 B3996 SIGHT GLASS Ø1"
13 2 B3937 O RING 29 1 B3989 BREATHER PLUG Ø1"
14 12 73125 BOLT M14x35 30 1 B3728 INNER CASE SECTION LH
15 2 B3711 TOP PLATE 31 2 B3723 COMPLETE OUTPUT
16 4 SL198 SEAL DL
