LOWLANDER HD MK2 & WIDEBODY MANURE SPREADER – INSTRUCTION & SPARES MANUAL
Page 67

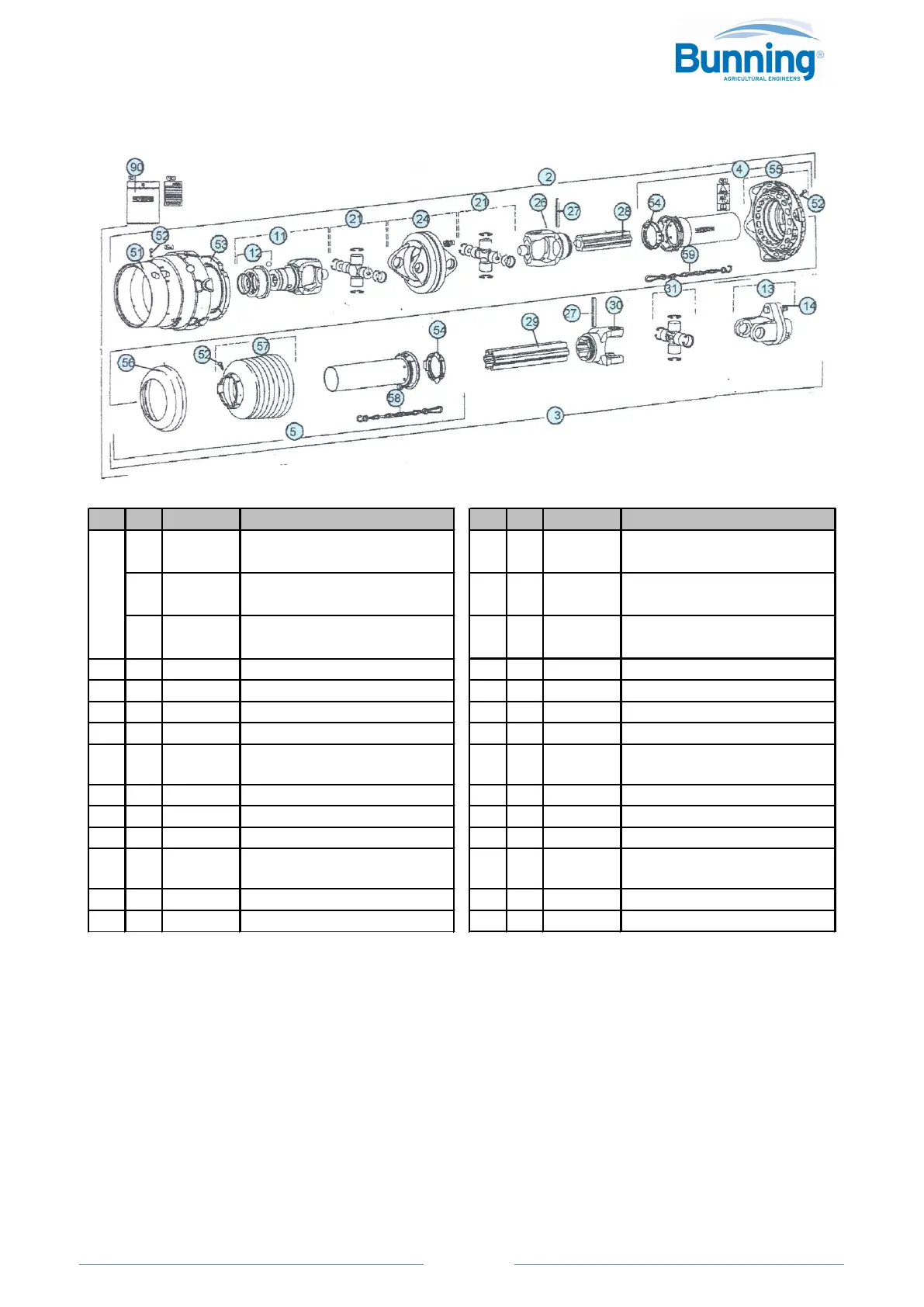

5.7 WALTERSCHEID WIDE ANGLE PTO SHAFT PARTS
KEY QTY PART No. DESCRIPTION KEY QTY PART No. DESCRIPTION
1 43005
W/A P.T.O SHAFT COMPLETE
21 SPLINE
29 1 43302 OUTER TUBE S5 PROFILE
1 43006
W/A P.T.O SHAFT COMPLETE
6 SPLINE
30 1 43315 YOKE TO S5 OUTER TUBE
1 43007
W/A P.T.O SHAFT COMPLETE
20 SPLINE
31 1 43340 JOURNAL KIT
11 1 43360 W/A YOKE TO 21 SPLINE 51 1 43474 W/A GUARD CONE
1 43361 W/A YOKE TO 6 SPLINE 52 10 43490 SCREW
11 43362 W/A YOKE TO 20 SPLINE 53 1 43475 W/A BEARING RING
12 1 43322 AS - LOCK SIZE C (AG118) 54 1 43450 INNER TUBE BEARING RING
13 1 43374
SHEAR-BOLT CLUTCH TO
55 1 43476 W/A FLEXIBLE GUARD
14 1 B1311 SHEAR-BOLT GRADE 6.8 56 1 43452 REINFORCING COLLAR
21 2 43367 W/A JOURNAL KIT 57 1 43451 CONE FOR I NNER TUBE
24 1 43365 W/A CENTRE BODY 58 1 43448 SAFETY CHAIN 400
26 1 43366
W/A YOKE TO S4 INNER
59 1 43449 SAFETY CHAIN 600
27 2 42030 ROLL PIN 90 1 43002 W/S INSTRUCTION MANUAL
28 1 43301/1 INNER TUBE S4GA PROFILE 1 43469 GUARD COMPLETE
1
To Next Page
