LOWLANDER HD MK2 & WIDEBODY MANURE SPREADER – INSTRUCTION & SPARES MANUAL
Page 73

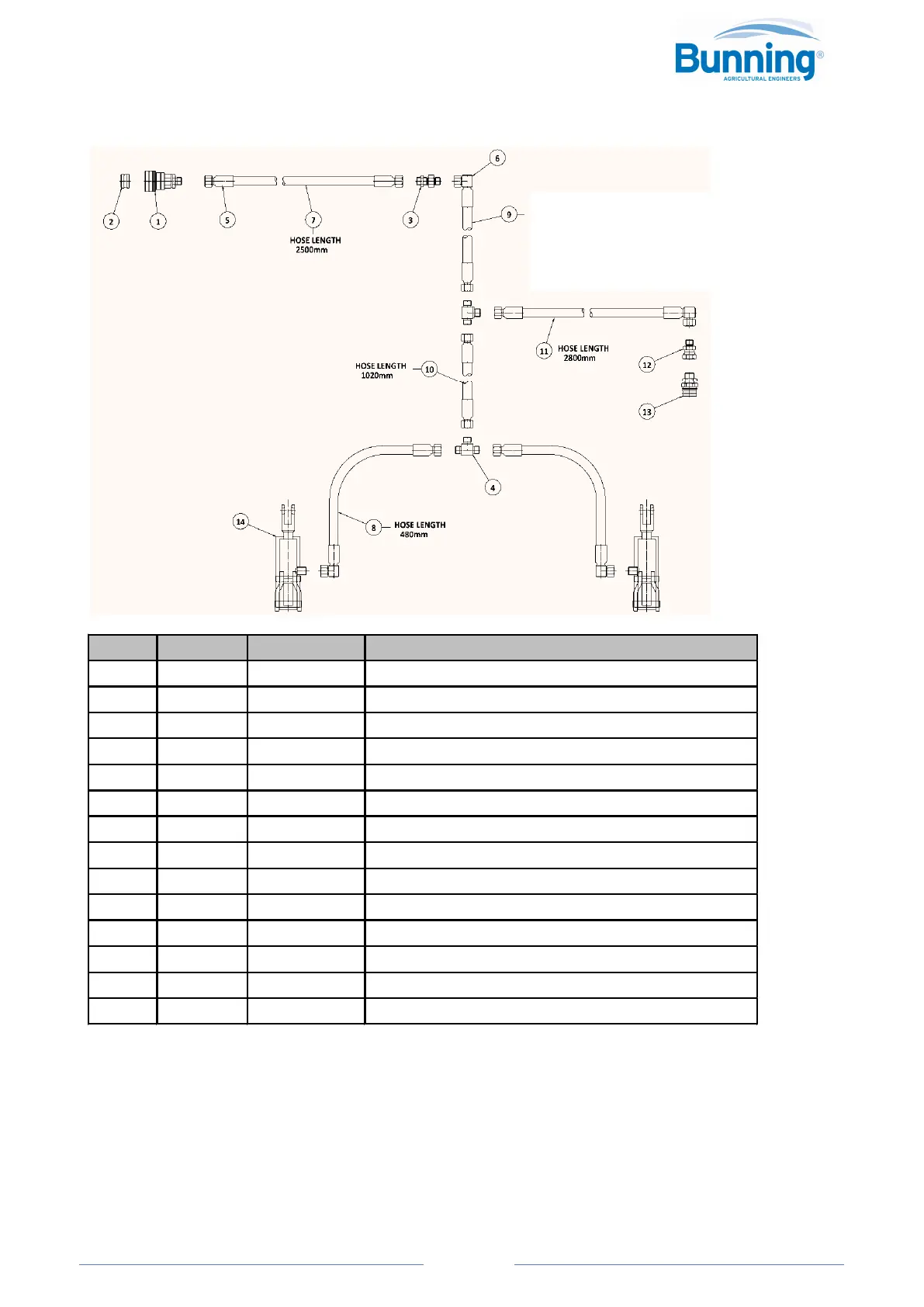

6.2.4 HYDRAULIC BRAKE CIRCUIT & CLEVIS DRAWBAR
KEY QTY PART No. DESCRIPTION
1 1 51568 COUPLING 3/8 FEMALE SELF SEAL
2 1 51583-1 DUMMY 3/8 MALE
3 1 51463 3/8"-3/8" NPT BULHKHEAD
4 2 51447 3/8"-3/8"-3/8" NPT MALE TEE
5 8 51037 HOSE END DIA3/8"-3/8" BSP FEMALE
6 4 51111 HOSE END DIA3/8"-3/8" NPT 90 DEG FEM
7 1 B4462 INTER-CONNECTING HOSE
8 2 B4454 AXLE HOSE
9 1 B4458 LONG HOSE
10 1 HOSE DIA3/8" BORE 2 WIRE x 1020
11 1 HOSE DIA3/8" BORE 2 WIRE x 2800
12 1 51644 ADAPTOR 3/8" MALE-M20x1.5 FEM
13 1 51569 COUPLING 3/8 MALE SELF SEAL
14 REF BRAKE ACTUATOR HYDRAULIC
150HD & 175HD – 6860mm
180 WIDEBODY – 7315mm
