LOWLANDER HD MK2 & WIDEBODY MANURE SPREADER – INSTRUCTION & SPARES MANUAL
Page 74

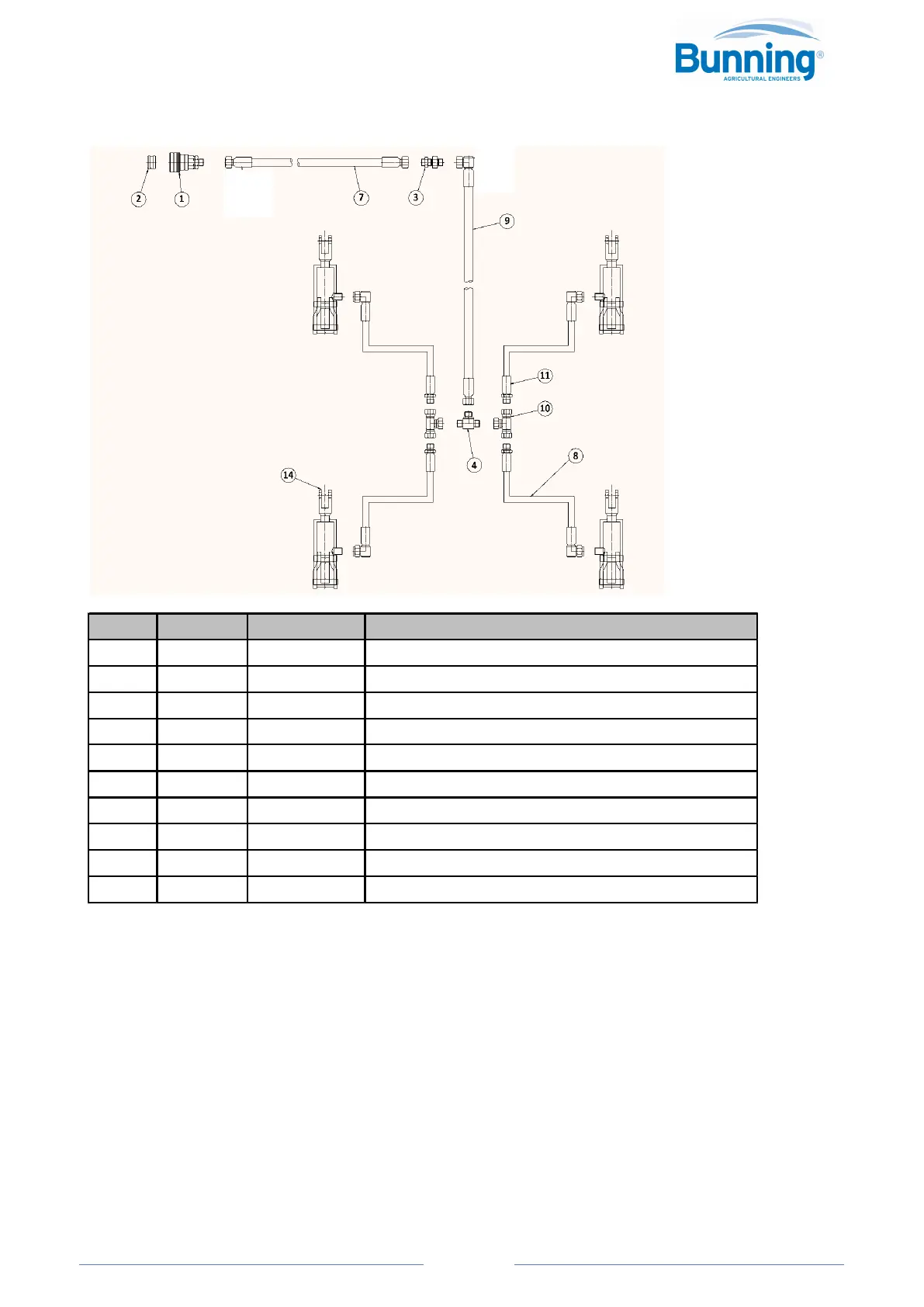

6.2.5 HYDRAULIC BRAKE CIRCUIT TANDEM AXLE 230 WIDEBODY
KEY QTY PART No. DESCRIPTION
1 1 51568 COUPLING 3/8 FEMALE SELF SEAL
2 1 51583-1 DUMMY 3/8 MALE
3 1 51463 3/8"-3/8" NPT BULHKHEAD
4 2 51447 3/8"-3/8"-3/8" NPT MALE TEE
7 1 B4462 INTER-CONNECTING HOSE
8 4 B4454 AXLE HOSE
9 1 B4458 LONG HOSE
10 2 51457 TEE 3/8 NPT FEMALE
11 4 52310 HOSE END DIA3/8-3/8 NTP MALE
14 REF BRAKE ACTUATOR HYDRAULIC
