snap ring
slide ring
seal
float
indicator
sampling
valve for DPD-
measurement
nut
water outlet
inlet ball valve
water inlet
drilling for
flow switch

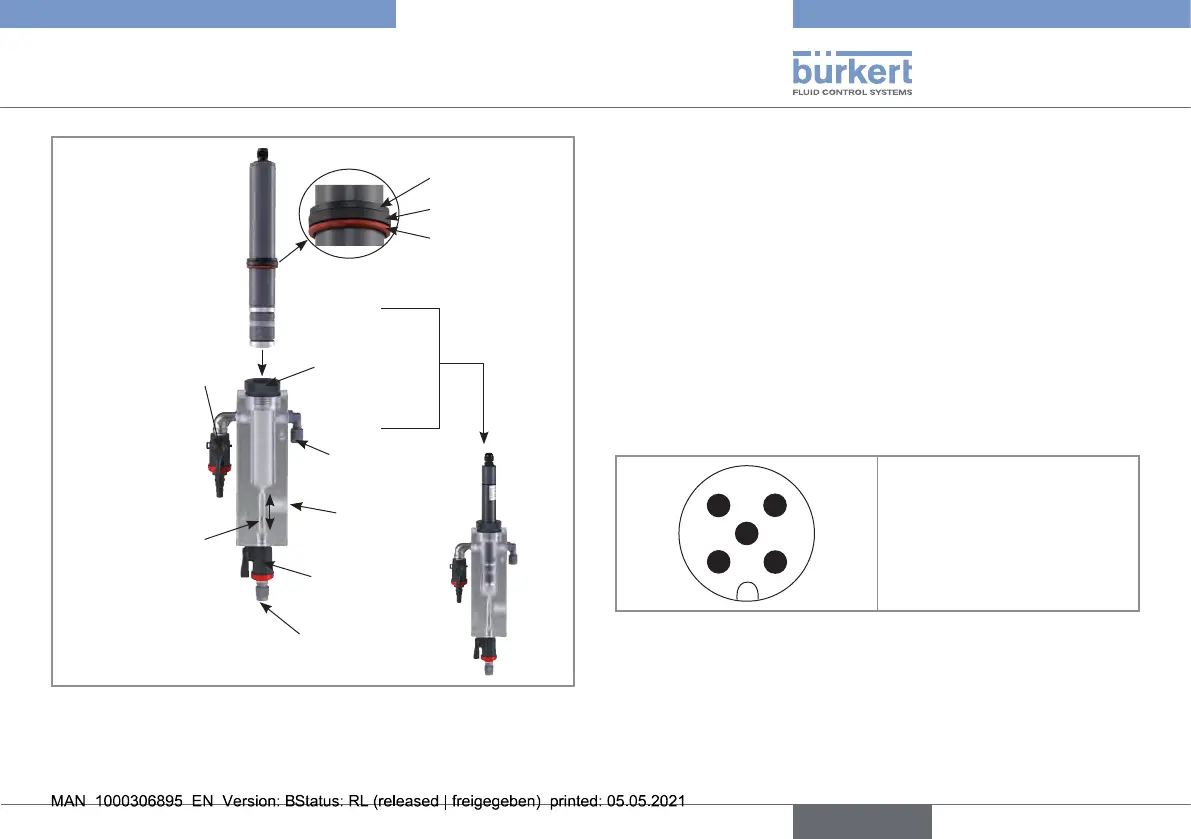

Fig. 3 : Description of the installation of the sensor into the
analytical measurement chamber type 8200
7.6. Wiring the sensor
7.6.1. Wiring a chlorine sensor with 5-pin
M12 male fixed connector
The chlorine sensor has a 4...20 mA current output and is equipped
with a 5-pin M12 male fixed connector.
The sensor is electrically fed by the remote controller type 8619 the
sensor is connected to.
→ To connect the chlorine sensor to the remote controller type 8619,
please refer to the Operating instructions of the remote controller.
1 2
4 3
5
1: not connected
2: V+
3: 0 V DC
4: not connected
5: not connected
Fig. 4 : Pin assignment of the 5-pin M12 male fixed connector
19
Installation and wiring
Type 8232
english
