Technical data
Type 8710, 8711, 8713, 8715
6.3. Conformity to standards and
directives
The device conforms to the EC directives through the following standards:
• EMC: EN 61000-6-2, EN 61000-6-3
The MFM / MFC UL devices conform to the following standards:
• UL 61010-1
• CAN/CSA-C22.2 n° 61010-1.
6.4. Mechanical data
The device may be mounted in a horizontal or vertical position: see the
calibration plate and/or the calibration protocol.
Type Base block material Material of the
housing
Port
connections
8700,
8710
Stainless steel
1.4305
Polycarbonate (PC)
or sheet stainless
steel 1.4301
G 1/4, NPT
1/4, flange
8701,
8711
Stainless steel
1.4305 or aluminium
Polycarbonate (PC)
or sheet stainless
steel 1.4301
G 1/4, NPT
1/4, flange
8703,
8713
Stainless steel
1.4305 or aluminium
Sheet stainless
steel 1.4301
G 1/4, NPT
1/4, flange
8705,
8715
Stainless steel
1.4305
Sheet stainless
steel 1.4301
G 1/4, NPT
1/4, flange
Sealing material FKM, FFKM, EPDM (see name plate)
Other parts in contact with fluids, proportional valve: 1.4310, 1.4113
and 1.4305.
6.5. Dimensions
4,5
0
10
97
107
28
2x M4
20
0
12,5
30
43,5
84
115,5
A
Fieldbus versions:
CANopen, DeviceNet = 18
PROFIBUS DP = 16,5

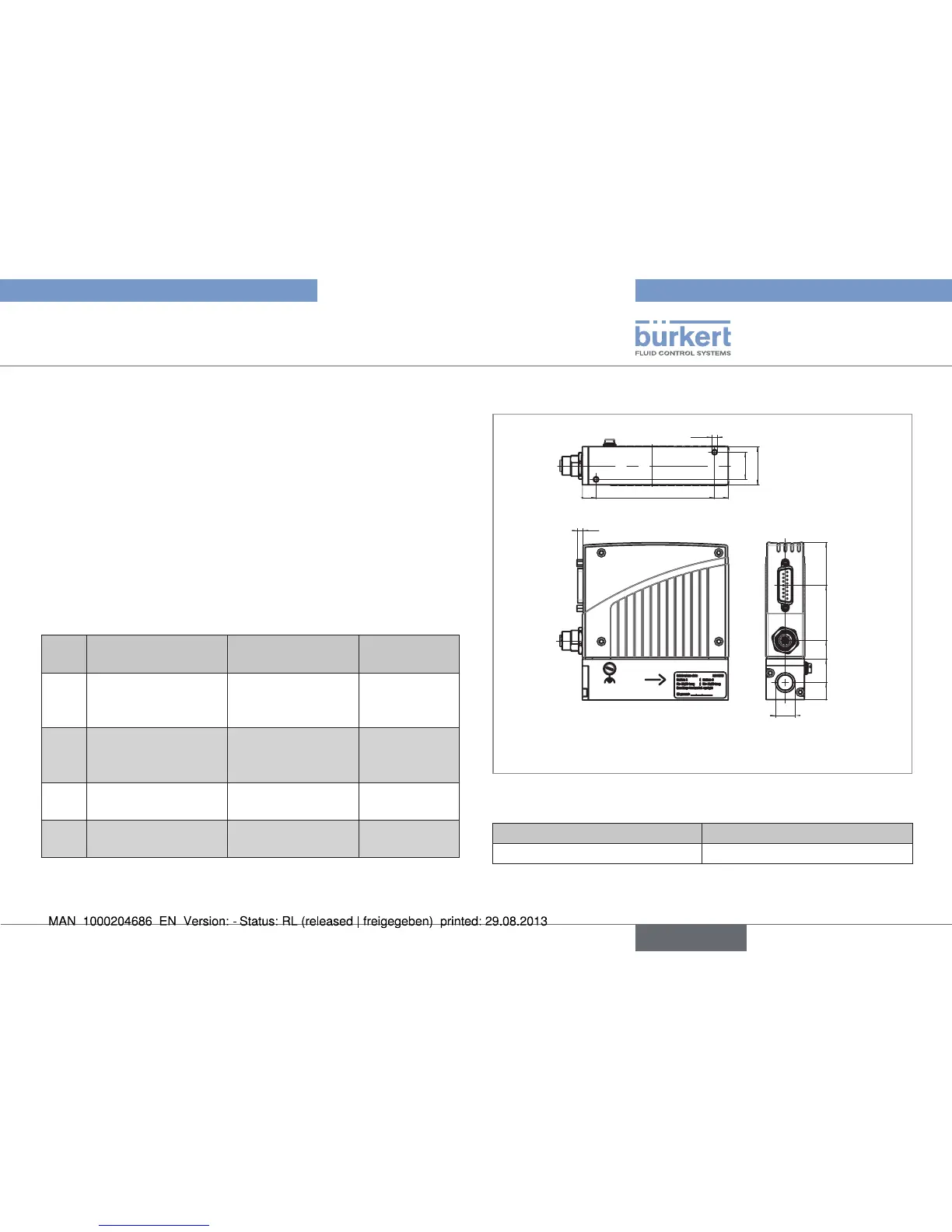

Fig. 5: Dimensions of MFM types 8700 and 8701 and MFC
types 8710 and 8711
Weight aluminium (kg) Weight stainless steel (kg)
ca. 0.8 ca. 1.1
