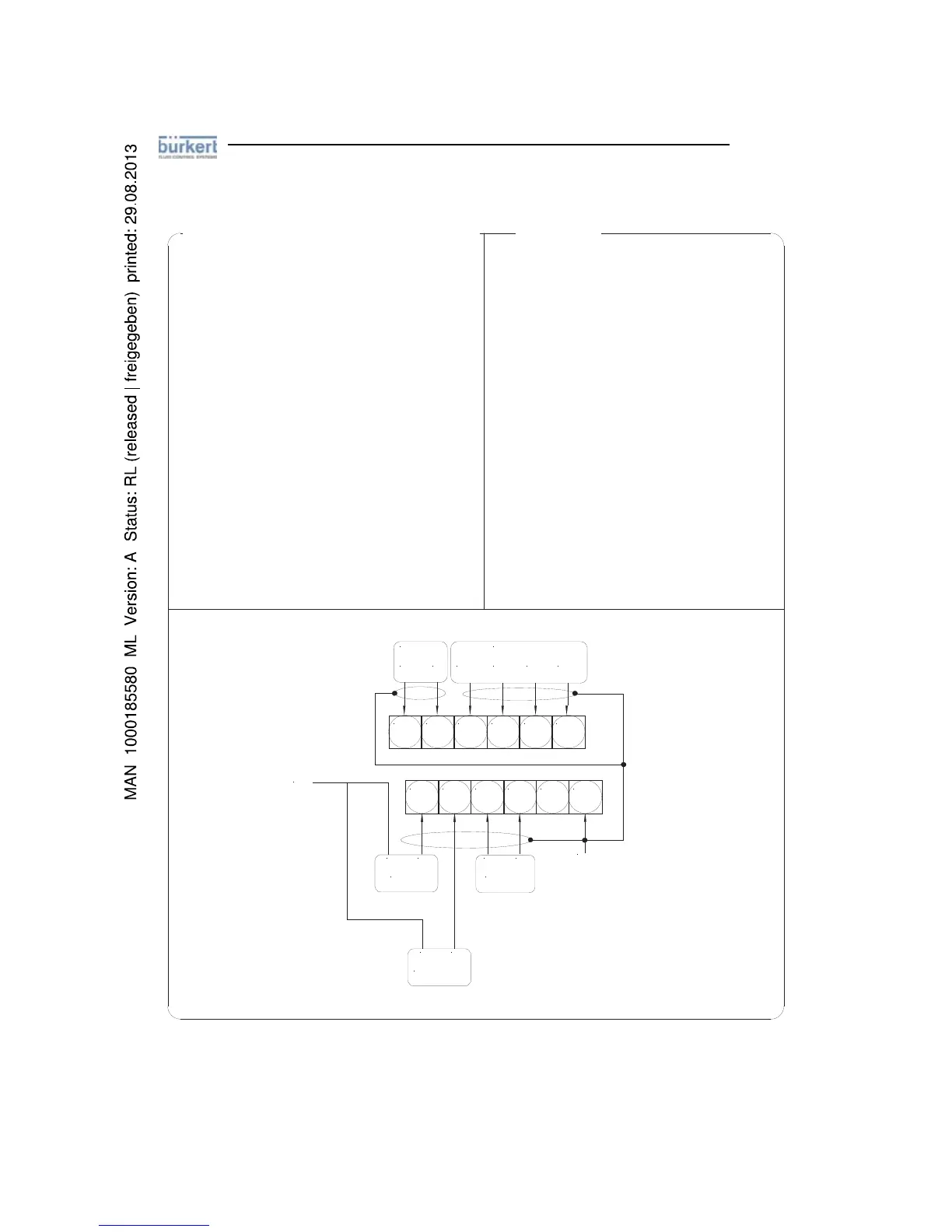

OPTIONAL MODULES
OPTIONAL MODULES (NO RELÈ MODULES)
 ME200: 2 configurable on/off outputs + 1
on/off input
 ME201: 1 configurable on/off output + 1
high frequency output + 1 on/off input
 ME202: 1 4-20mA output + 2 configurable
on/off output + 1 on/off input
 ME203: 1 RS232 port + 2 configurable
on/off outputs + 1 on/off input
 ME204: 1 RS232 port + 2 configurable
on/off outputs + 1 4-20mA output + 1
on/off input
 ME220, ME221, ME222: data logger, see
the related manual
 PROFIBUS DP, HART and Modbus, see
the related manuals
SH: Cable shield, electrically connected to
ground and to the housing
CTS: Input terminal of the signal “CLEAR TO
SEND” of the RS232 port
RD: Input terminal of the signal “RECEIVE
DATA” RS232 port
TD: Output terminal of the signal “TRANSMIT
DATA” of the RS232 port
SG: Terminal “SIGNAL GROUND” common to
all signals of the RS232 port
C: Terminal connected with the on/off output
transistor COLLECTOR
E: Terminal connected with the on/off output
transistor EMITTER
21 22 23 24 25 26
27 28 29 30 31 32
OUT 3
E C
CTS RD
TD
SG
RS 232
- +
INP2
E C
OUT 4
SH
- +
4-20mA
20
(M1)
LEGEND
