Burkert SE56 - Transmitter Access; Flags and Led Interpretation

SE 56
18
M1
M3
1 2 3 4 5 6 7 8 9 10
11 12 13 14 15 16 17 18 19 20
LOCK
TRANSMITTER ACCESS

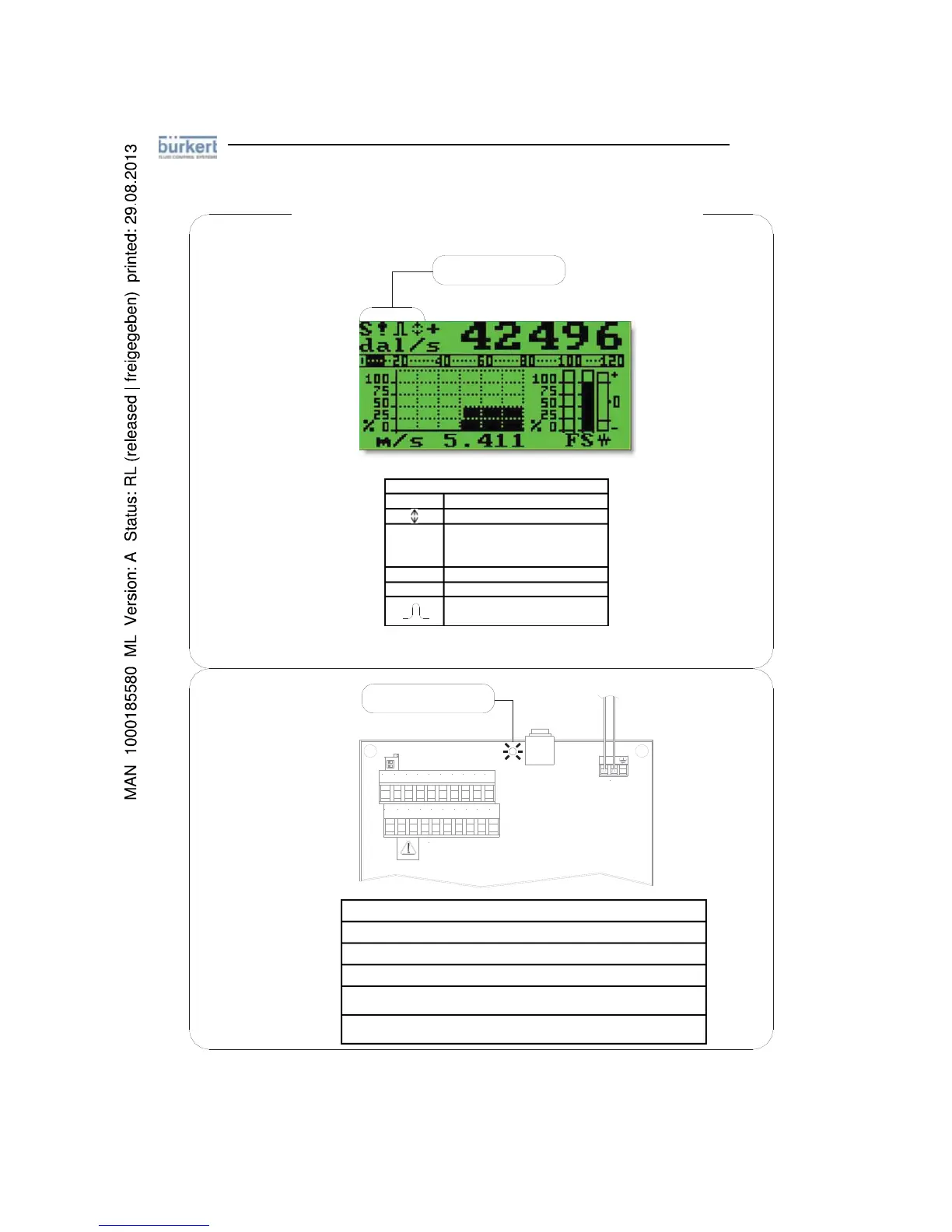

FLAGS AND LED INTERPRETATION
FLAGS INTERPRETATION
FLAG DESCRIPTION
Alarm max/min activated
!
- Interruption coils circuit
- Signal error
- Empty pipe
C Calibration runnin
g
S Simulation
Pulse output saturation
(reduce TIME of the PULSE )
LED
LED INTERPRETATION
PERMANENT LIGHT: initialization
FLASHING LIGHT (1 sec.): normal function
FLASHING LIGHT (<1 sec.): alarm active
The LED si
g
nals the real alarm status only if the display visualizes
one of the visualization pages
A
TTENTION: The LED is not visible in the panel-mounted version
of the transmitter
FLAGS
