from remote input 1
start batch from remote input 2 consent mode to batch enable

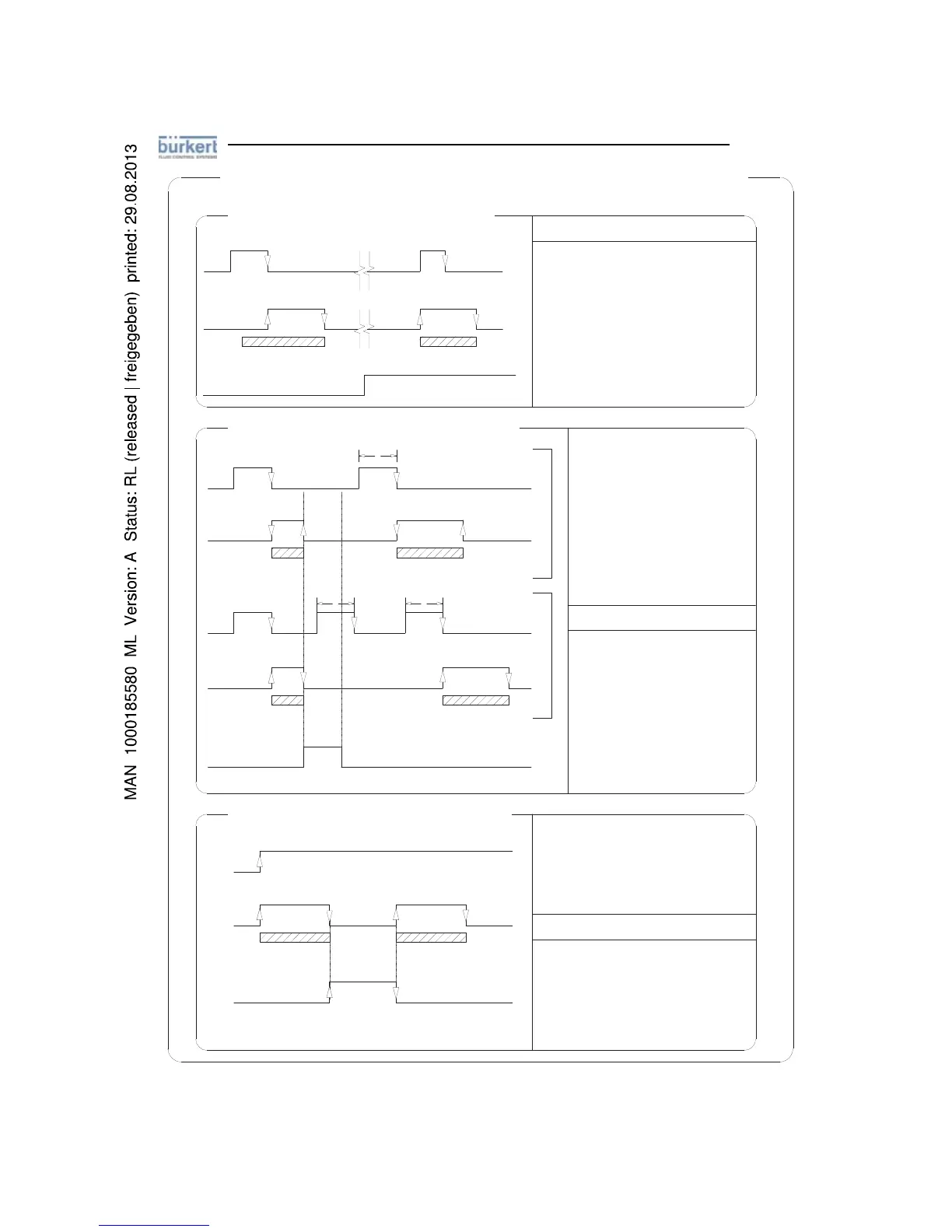

OPERATION STAGE ON INPUT 1 AND 2 (BATCH FUNCTION)
Necessary conditions for enabling the function
POS. 5.10 ENABLED
POS. 6.1 or 6.4 on BATCH
POS. 5.10 ENABLED function of
formula selection 00/01 assigned to input 2
(optional)
The signal block for the totalizer always
interrupts the batch. By re-energizing
input it is 2 possible to get 2 results:
1) T< 1Sec = restart interrupted
batch
2) T between 1 and 4 sec = reset
interrupted batch. Note: will be
necessary to give a new start
impulse to the input 2 (T< 1Sec)
to begin a new batch
Necessary conditions for enabling the
function
POS. 5.6 ENABLED (Block
totalizer)
POS. 6.1 or 6.4 on END BATCH
POS. 5.10 ENABLED (Batch
function for input 2 (optional))
POS. 5.2 ENABLED (P+)
The signal block for the totalizer (Input 1
signal) always stops the batch. With the T2
reset function enabled through the stopping of
the input 1 signal the batch totalizer goes to
zero. With the totalizer at zero a new pulse on
Input 2 will restart a new batch.
Necessary conditions for enabling the function
POS. 5.6 ENABLED (Block totalizer)
POS. 5.11 ENABLED Batch function
assigned to input 2 (optional)
POS. 12.7 ENABLED (consent mode)
POS. 5.2 ENABLED (P+)
3-40V
0-1.5V
Start
Opening
valve
Closing
valve
Opening
valve
Closing
valve
BATCH FORMULA 00 BATCH FORMULA 01
BATCH FORMULA 00
BATCH FORMULA 01
3-40V
INPUT 2
OUTPUT
INPUT 1
3-40
