Burkert TopControl ON/OFF User Manual

36
Top Control ON/OFF
english

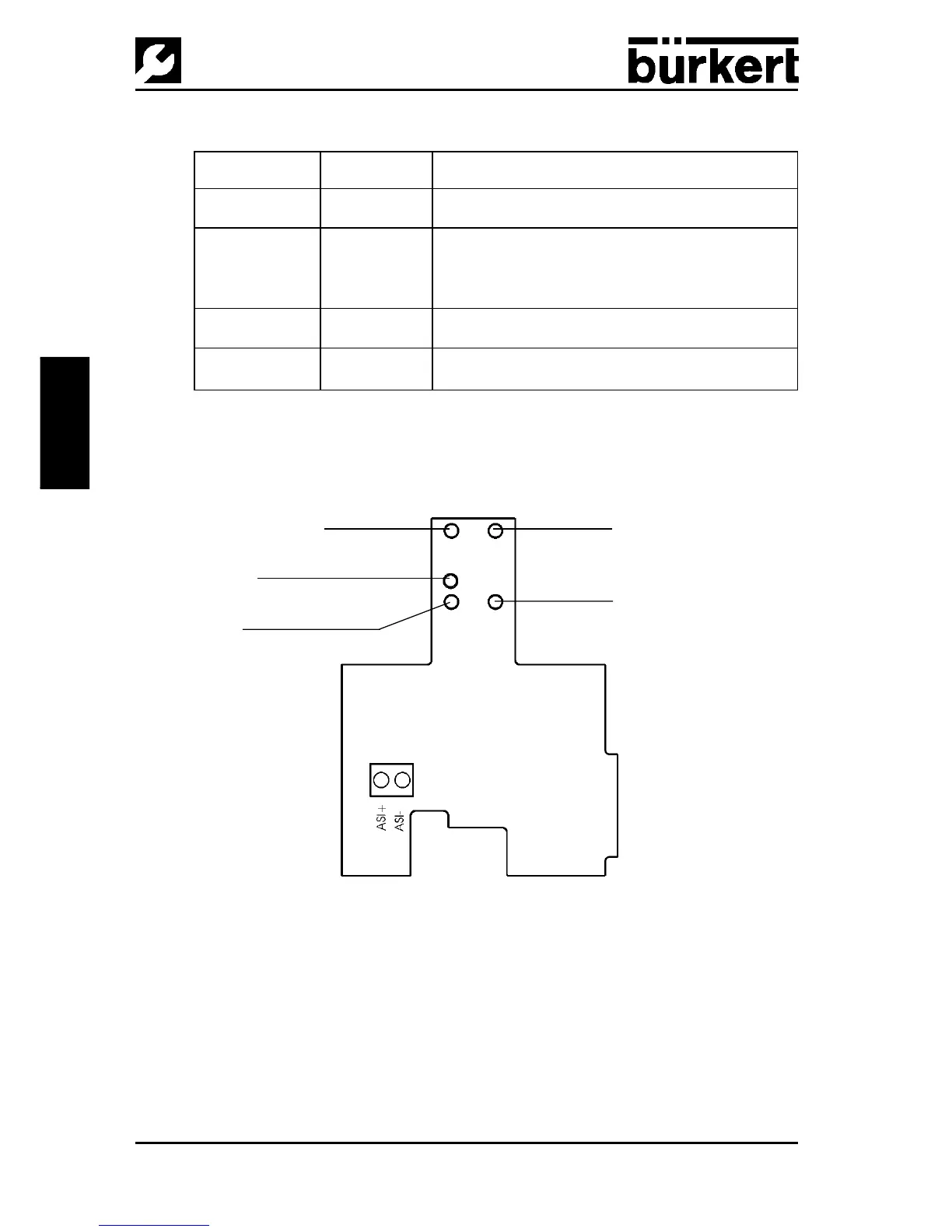

Fig. 3: Circuit board of the TopControl ON/OFF, AS interface variant
Status display:
LED1 (green) LED2 (red) Status signalled
off off POWER OFF
off on No data traffic
(watchdog expired at slave adress not
equal to 0)
on off ok
blinking on Slaveadress equal to 00
(yellow)
Valve supplied with power
(yellow)
Limit switch 1 tripped
(Upper limit position
reached)
(green)
Status display LED 1 ASI bus
(red)
Status display LED 2 ASI bus
(yellow)
Limit switch 2 tripped
(Lower limit position
reached)
