Operating Instructions No. 803 925

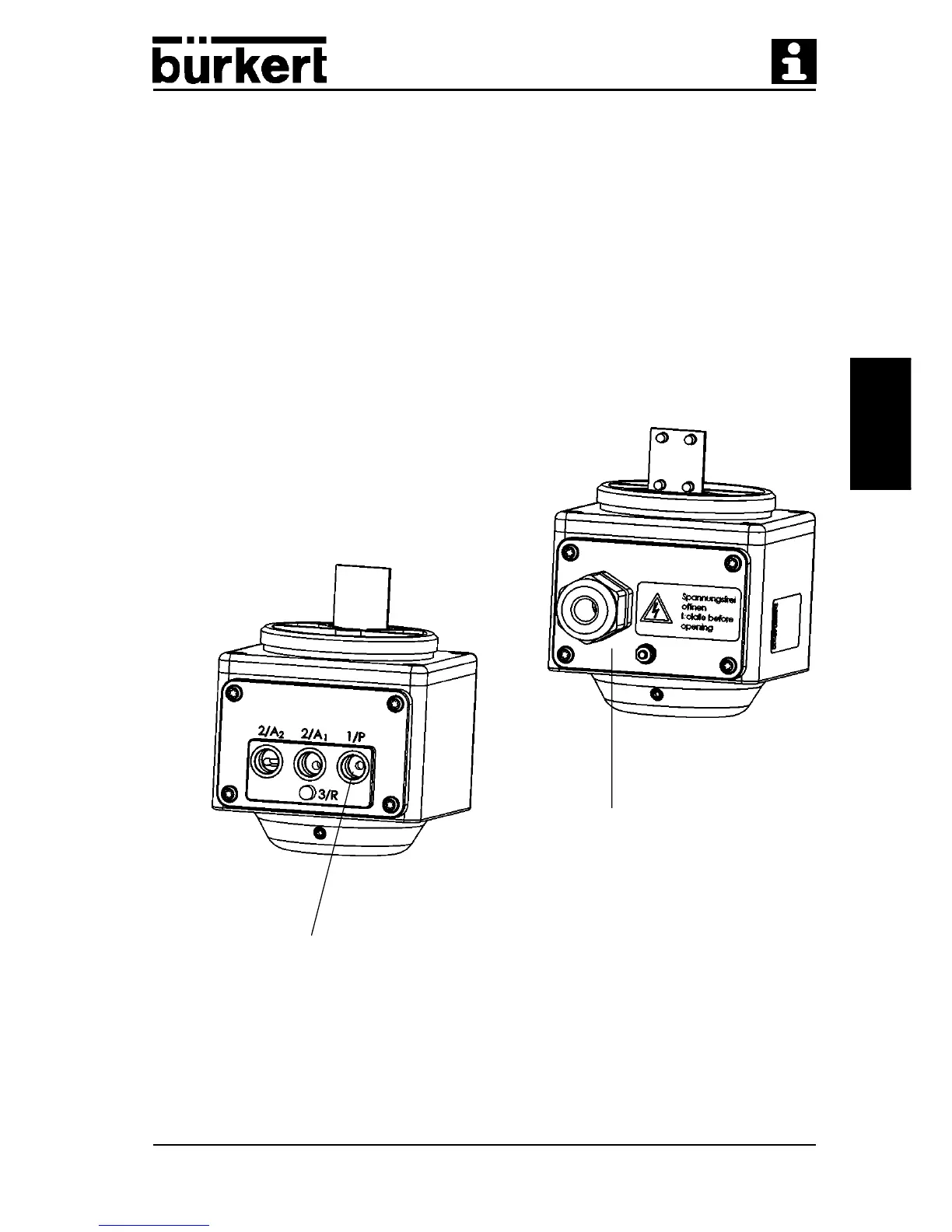

Fig. 1: 3-D view of TopControl, cover removed
Compressed air feed connection
(Beschriftung: 1/P)
Electrical connection module
2 DESIGN AND FUNCTION OF THE TOP
CONTROL
ON/OFF
The Top
Control
ON/OFF is designed for the operation of pneumatically
actuated process valves. It can be combined with various types of valve from
the Bürkert process valve range (see the data sheets for the types 2000,
2001, 2002, 2012, 2030, 2031, 2031K, 2652, 2655 and 2658). The Top
Control
and the process valve are connected together using an adapter. An integrated
system consisting of feedback, control and valve function is thereby created.
Various electrical and pneumatic connection variants are available.
