Burkert TopControl ON/OFF - Bus Drive Via as Interface

Operating Instructions No. 803 925 35
english
Programming data:
I/O configuration: B hex (1 output, 2 inputs)
ID code: F hex (see under for pin configuration)
3.6.2 Bus drive via AS interface
Data bit D3 D2 D1 D0
Signal Input Input not used Output
proximity proximity control valve(s)
switch 1 switch 2
Value 0 Position not Position not not used Control valve(s)
reached reached off
Value 1 Position Position not used Control valve(s)
reached reached on

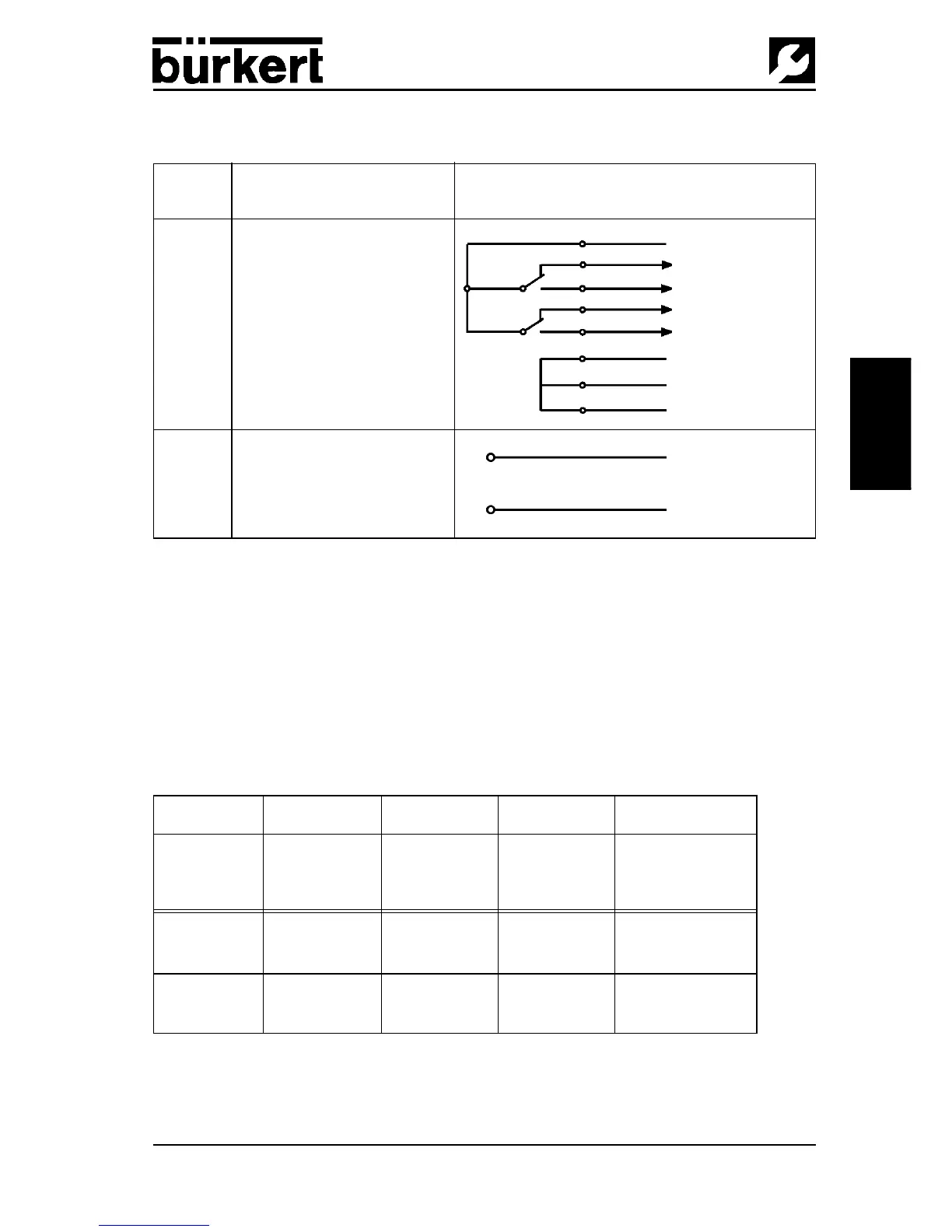

110 V and 230 V variant with mechanical limit switches
Terminal Connection External circuit
No.
1 Supply for limit switch
2 Supply for limit switch
3 Output, limit switch 1 (NO)
4 Output, limit switch 1 (NC)
5 Output for common pole
6 Output, limit switch 2 (NO)
7 Output, limit switch 2 (NC)
8 Valve drive N
9 Valve drive L1
10 Valve drive N
L1
NC1 (max. 5 A)
NO1 (max. 5 A)
NC2 (max. 5 A)
NO2 (max. 5 A)
Output common pole
N
1
4
7
6
5
S2
S1
9
10
L1
2
3
8
N
N
