4 | Transport
/ 44
0870S03226_VRD 2072-3108_-
The vacuum pump can be lifted by the eye bolts.
Danger of severe injury!
Suspended load.
• Never walk, stand and work below suspended loads!
• The eye bolts (EB) must be in perfect condition and completely screwed into the ma-
chine and hand-tightened!
Damage to the vacuum system!
If the vacuum pump is already filled with oil.
Tilting a vacuum pump that is already filled with oil can cause large amounts of oil to
enter the cylinder. If the vacuum pump is started while there are excessive amounts of
oil in the cylinder, this will damage the sliders, resulting in a total damage of the vacu-
um pump.
• Drain the oil before transport if transport in horizontal orientation is not possible.

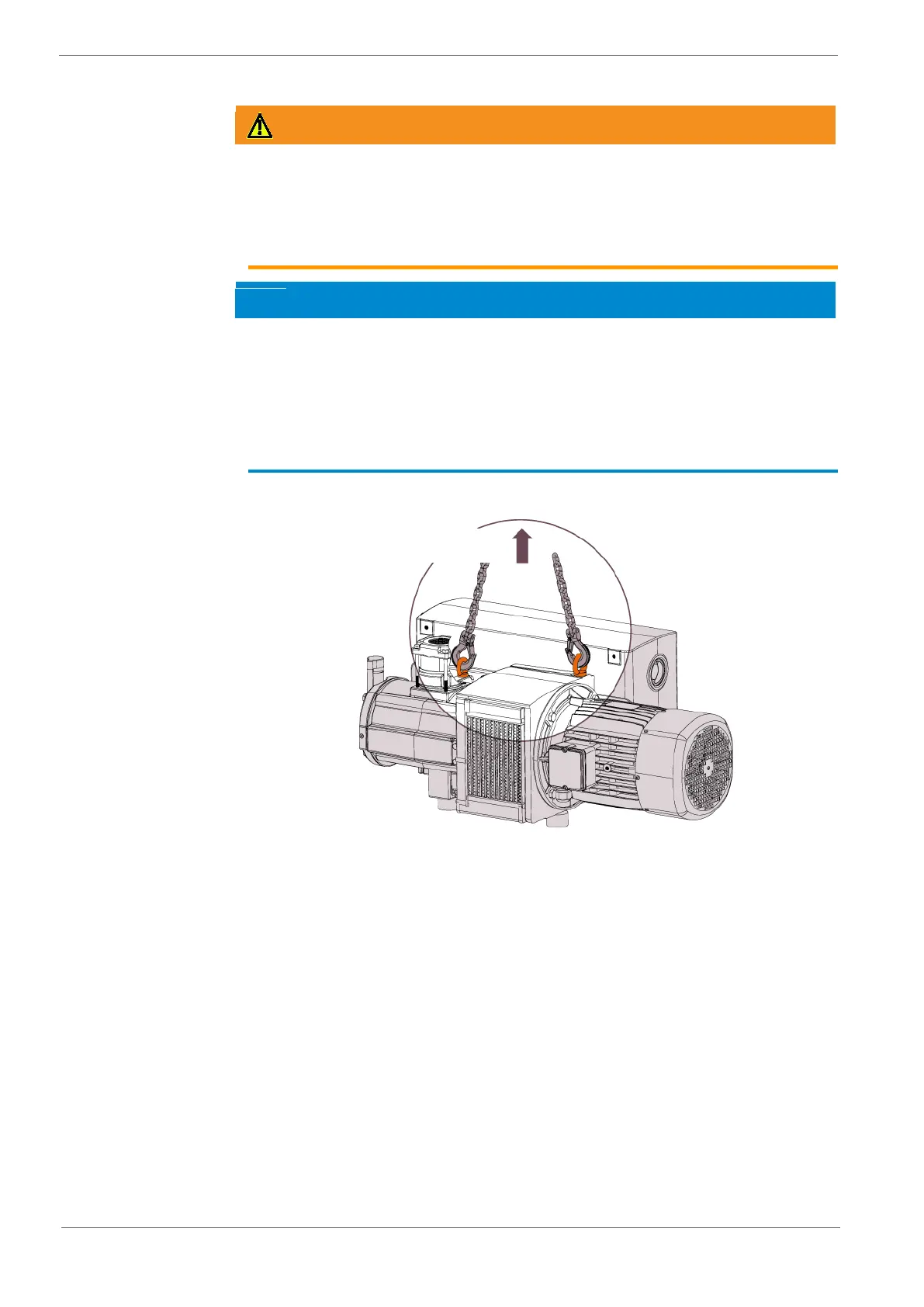

Fig. 5 : Transport of the vacuum pump on the eye bolts
Weight of the machine:
see technical data or see name plate (NP)
