6 Installation
6.1 Installation

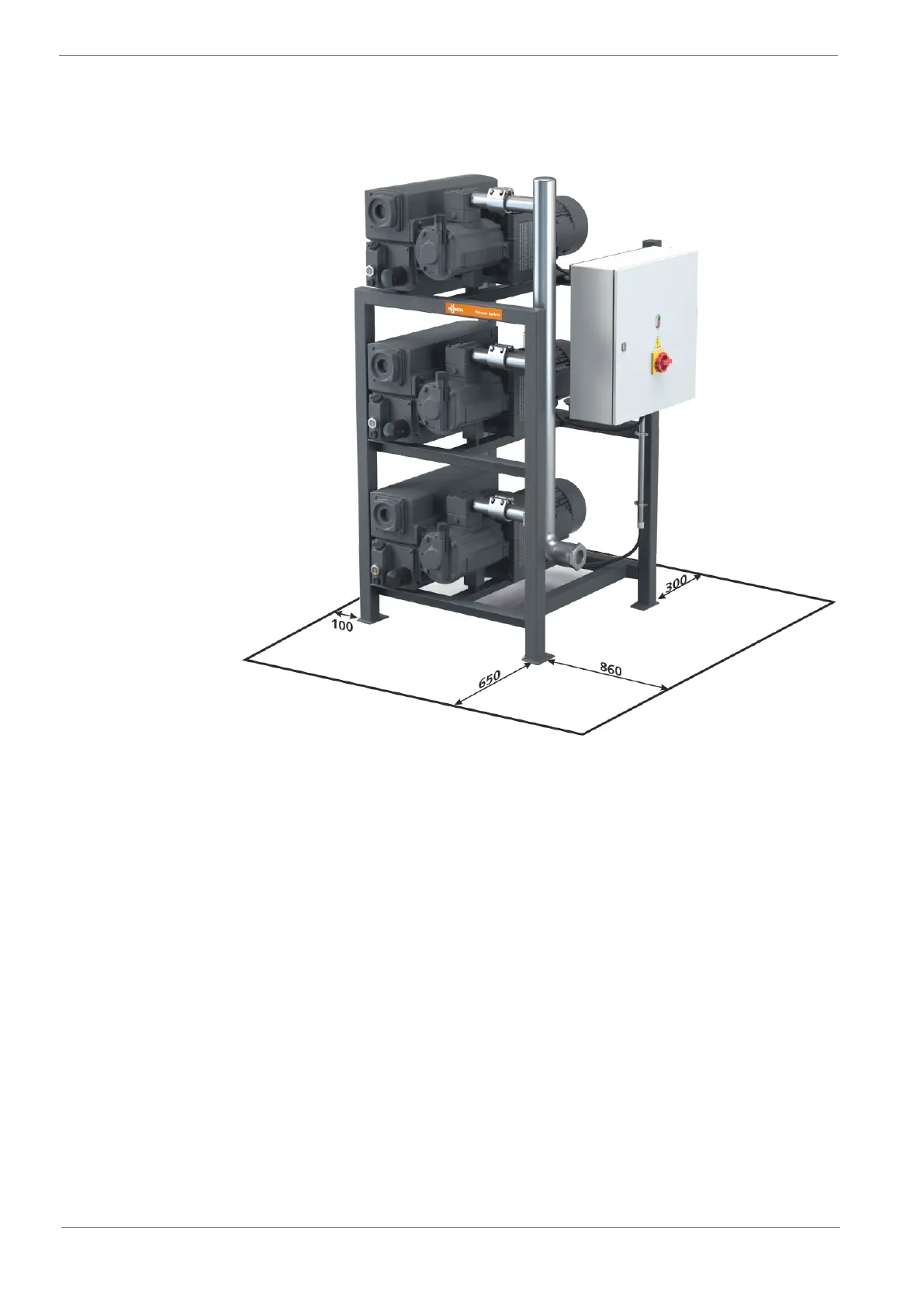

Fig. 6 : Installation environment
• Ensure that the vacuum system is set up horizontally (deviation 1° max.) and anchor it
in the ground with four bolts if necessary.
• Technical data must be complied with.
• The ambiance conditions must meet the protection class of the vacuum pump.
• The installation site must be vented so that sufficient cooling of the vacuum system is
ensured.
• Ensure that the ventilation openings (inlets and outlets) are not covered and that the
cooling air can flow unhindered.
• Sufficient space for maintenance work must be ensured.
• Visibility of the oil sight glass (OSG, Fig. 2) must be ensured at all times.
• Check the oil level and top up oil if necessary (for more information, see topping up
with oil (chap. 7.1.1).
• Ensure that all covers, safety devices, etc. are installed.
