Feed the brine hose and cable from the floating
switch through the borehole.
Position and adjust the softening column with control
valve behind the cabinet.

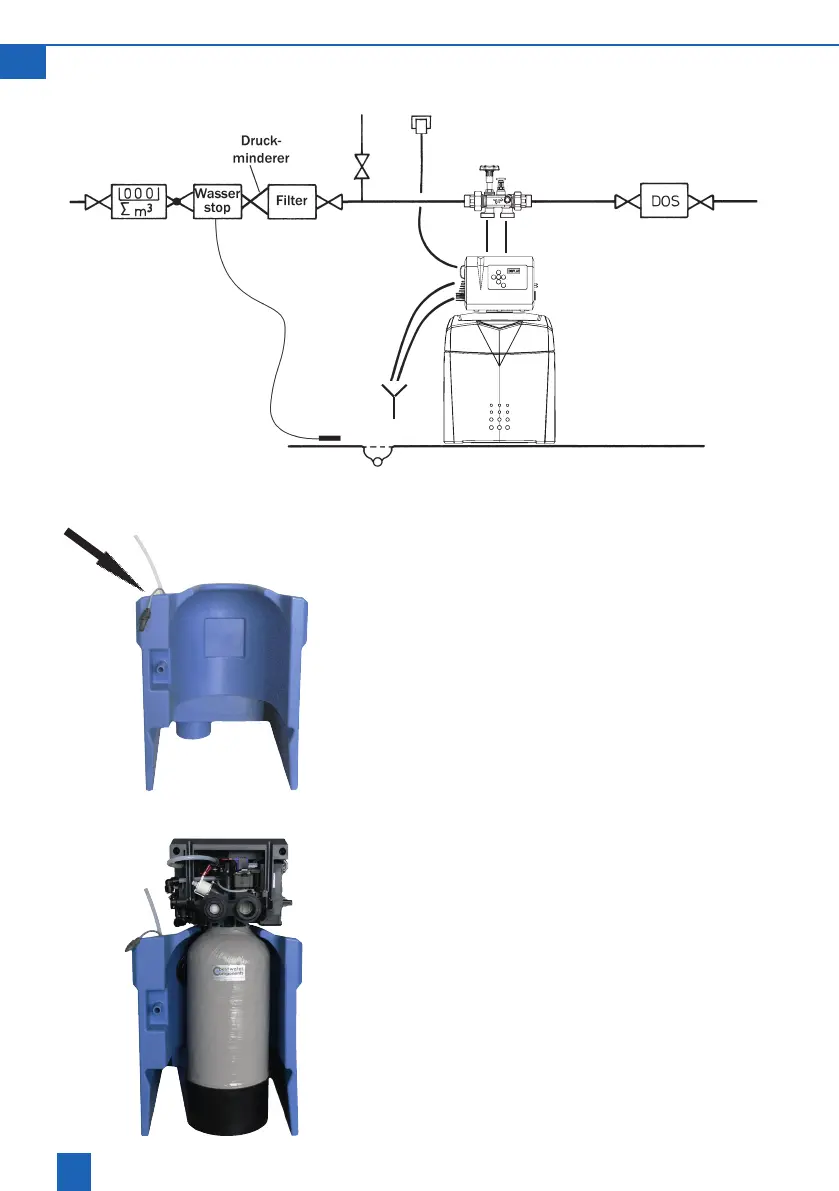

Installation diagram
6 Installation
Floor drain
Water stop
Pressure reducing valve
Dosing units
Optional
Depending on operating
conditions
