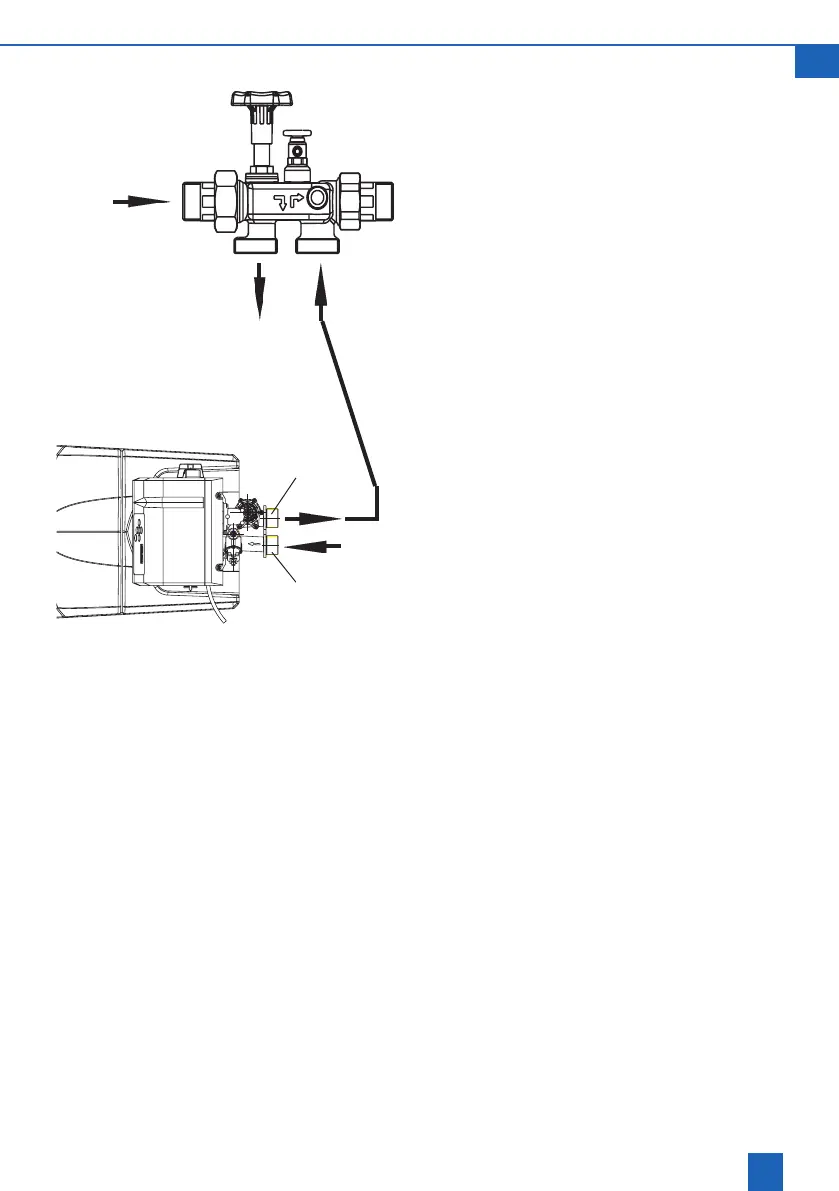

Connect the system following the diagram shown
at the side.
A bypass is integrated into Multiblock X.
It is possible to install the system in pipes running
both horizontally or vertically.
Please refer to the separate installation and opera-
ting instructions for Multiblock X and connection set
DN 32/32 as otherwise the warranty will be invalid
in case of failure.
Rinse off any dirt particles by opening the hand
valve on the Multiblock module.
Pay attention to the arrows indicating the direction
of flow when connecting the system.
Connect the corrugated hose to the Multiblock outlet
and join to the hard water inlet (8).
Connect the corrugated hose to the Multiblock inlet
and seal to the soft water outlet (7).
7
8
Outlet
to 8
Multiblock X
Inlet
to 7
