4.6 Wiring

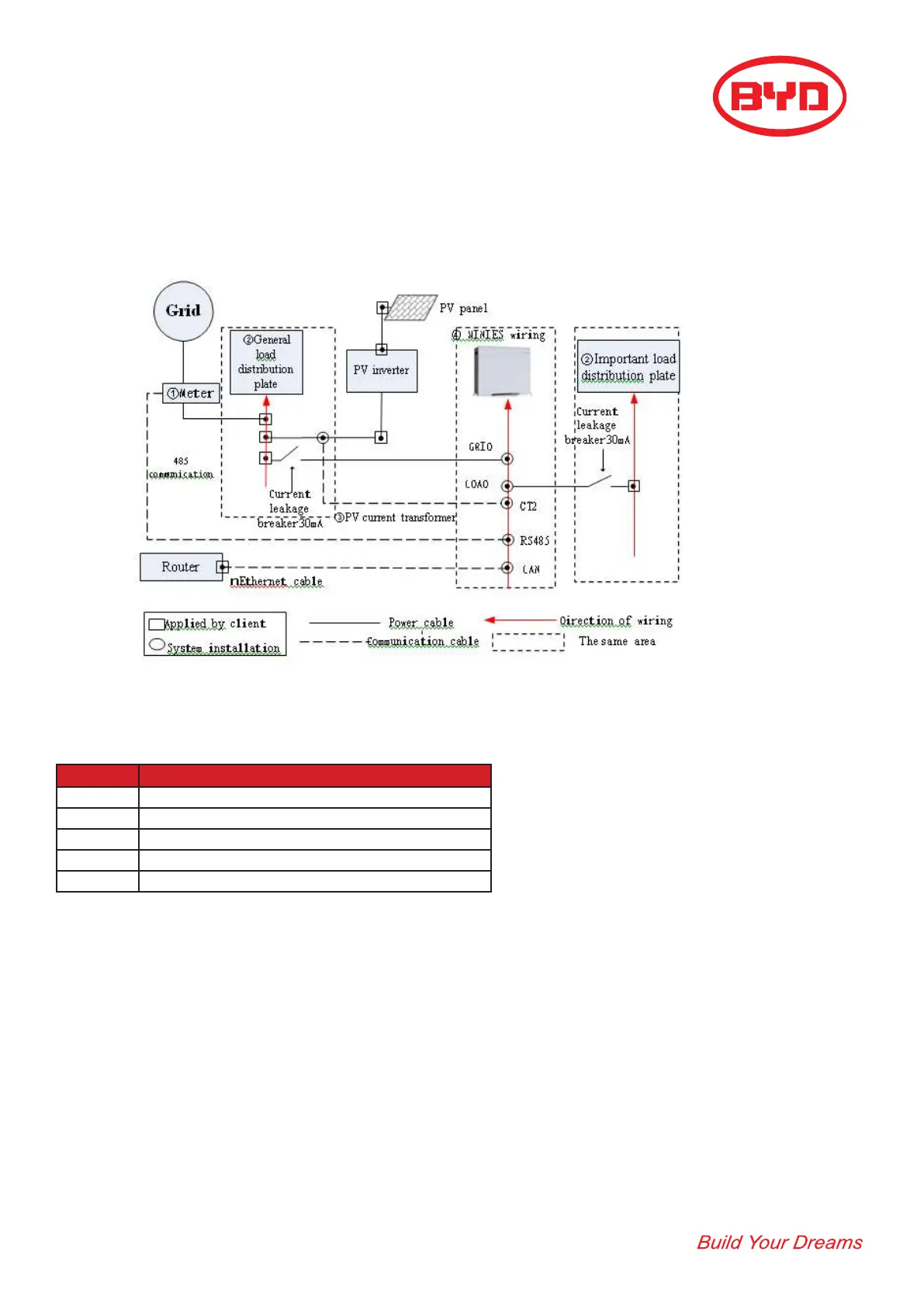

4.6.1 Wiring Diagram
4.6.2 Wiring Criteria
Item Step Content
1 Meter wiring
2 General and important load distribution plate wiring
3 Installing current transformer
4 Mini ES wiring
5 Connecting the Ethernet cable to the router
• When paving the cables, the cable needs to keep right in the corner. Try and make the
communication cable the shortest length and keep the distance to the power cable.
• The electric wire and cable must pass through a suitable containment.
• In order to reduce the transient electromagnetic interference of the output voltage, the
power cable and signal cable should be put in different containment.
• Cables should be wired in a neat manner.
•
