4.6.4 General and Important Load Distribution Plate Wiring

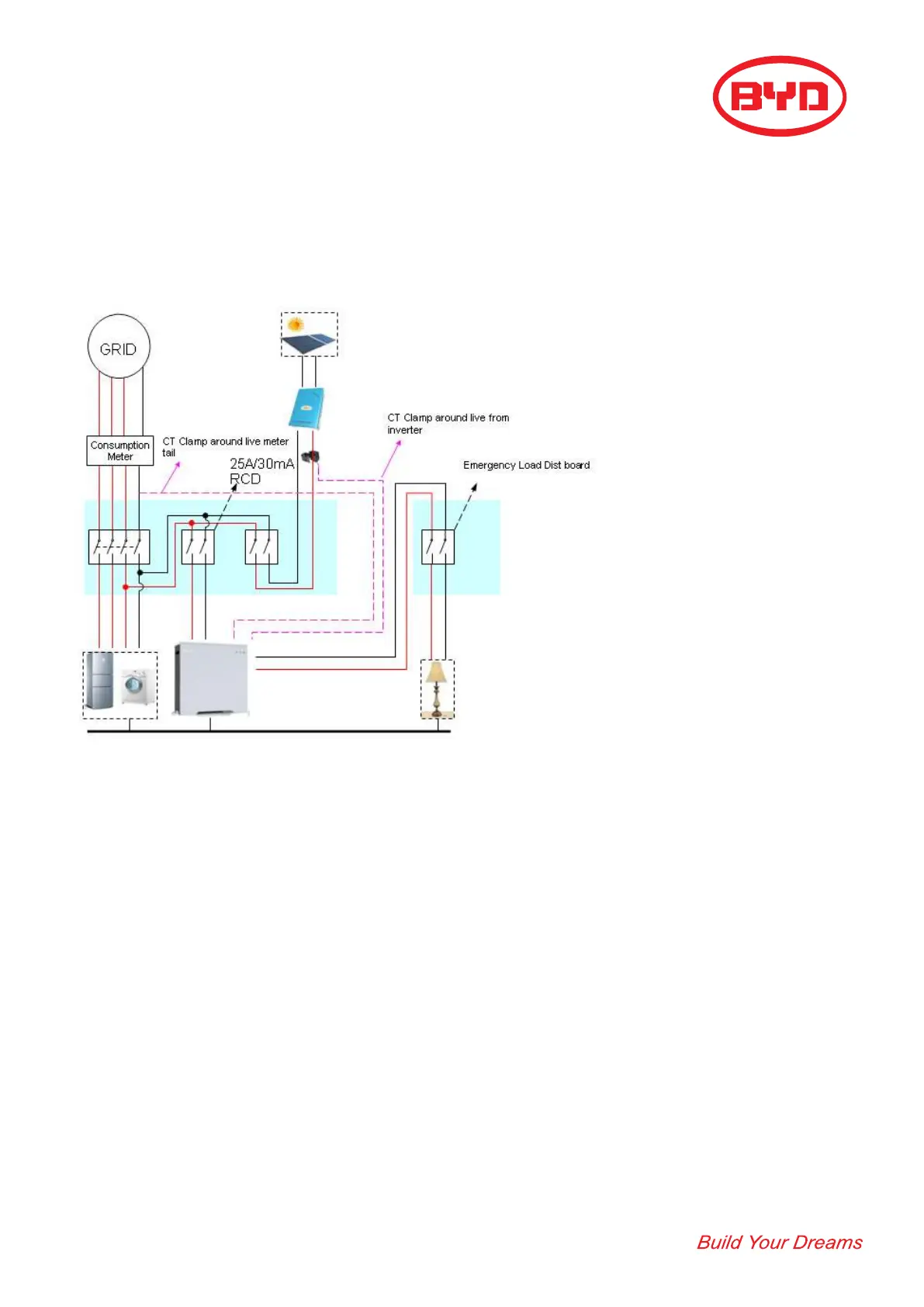

Distribution plate wiring: please wire according to the following diagram:
> Related tools: cross screwdriver, wire stripper, wire crimpers
Requirement:
• There must be a maximal limited current 32A, 30mA current leakage protection breaker
between the room grid and energy storage system.
• There must be a maximal limited current 16A, 30mA current leakage protection breaker
between the important distribution plate and energy storage system.
• You must check the wiring according to manual after installation.
• The installation must be undertaken by a competant person in line with the
requirements of BS7671
Electric leakage protection
In order to prevent the electric leakage phenomenon caused by the system fault or damage, there
must be an electric leakage breaker between the input cable and the output cable in the system.
