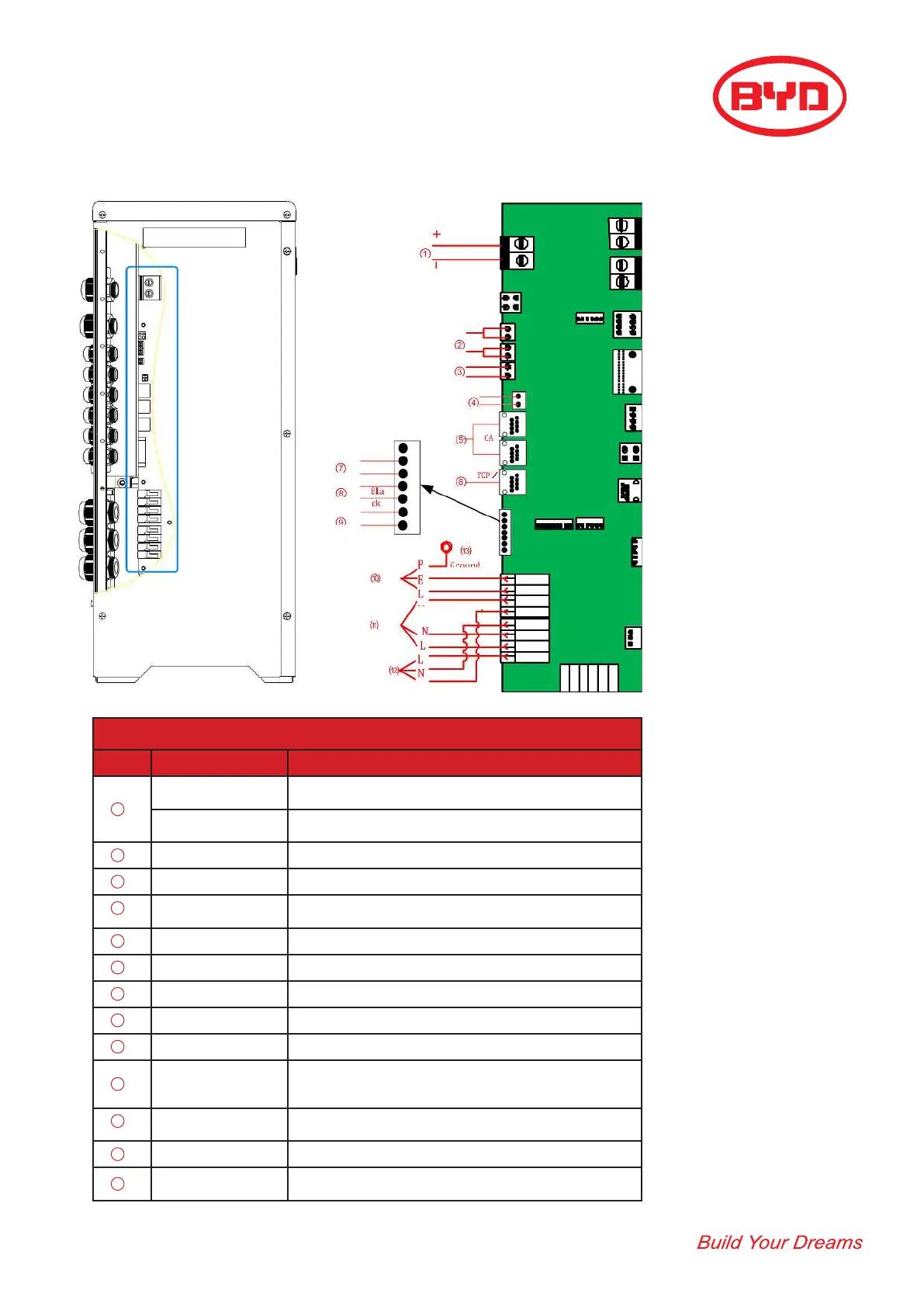

The internal interface:
The position needs to wire is marked by “*”
Item Name Description
1
Battery power wiring
Reserved (only product which is authorised by BYD could
connect)
Charger power wiring
Reserved (only product which is authorised by BYD could
connect)
2
12V source Reserved (forbid)
3
*
RS485 Connecting to meter communication interface
4
RS485
Remote control interface, HMI interface (local debugging
interface)
5
CAN Reserved (forbid)
6
*
TCP/IP Connecting to customers interface
7
CT3 Reserved (forbid)
8
*
CT2 Current transformer interface
9
CT1 Reserved (forbid)
10
GRID
Connecting to the 30mA current leakage protection breaker
which is in the general load distribution plate, the earth line to
the shell of MiniES
11
LOAD
Connecting to the 30mA current leakage protection breaker
which is in the general load distribution plate,
12
SOLAR Reserved (forbid)
13
EARTH
The grid cable has the earth line, connect the earth line to the
shell of MiniES
