4 Loading Material
4.2 Loading Fanfold Labels
2
6
3
4
5
7
1

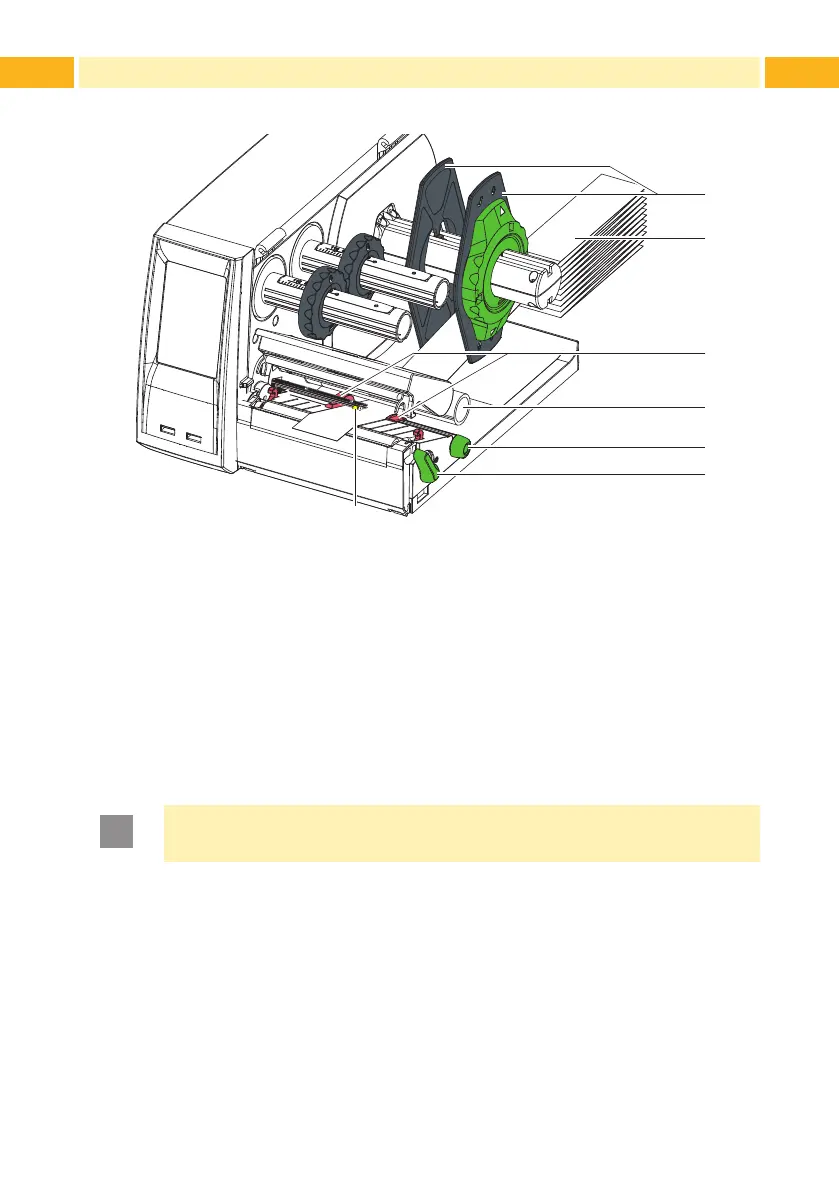

Fig. 8 Loading Fanfold Labels
1. Position label stack (2) behind the printer.
2. Guide material below the roll retainer (1) to the printing unit. Ensure that
the printing side of the labels is visible from above.
3. Turn lever (6) counterclockwise to open printhead.
4. If the printer is equipped with a cutter or perforation cutter, fold it down.
5. Position guides (3) by turning the knob (5) so that they are several milli-
meters wider than the material.
6. Position material below the belt roller (4) and guide it through the print unit.
Attention!
Guide material through the print unit below the label sensor (7).
7. Move guides (3) closely to the edges of the material without clamping the
material.
8. Adjust label sensor ( 4.3 on page 17).
9. If the printer is equipped with a cutter/perforation cutter, guide material
through the cutter and fold cutter back to the printing unit.
10. Press printhead down and turn lever (6) clockwise to lock the printhead.
