4 Loading Material
4.1 Loading Label Rolls
4.1.1 Adjusting the Roll Retainer
Label rolls are supplied with different diameters. The roll retainer can hold label rolls with a core diameter of 38 - 75
mm,or76mmwiththedetachableadapterstted.
1
2
3
2
4
5

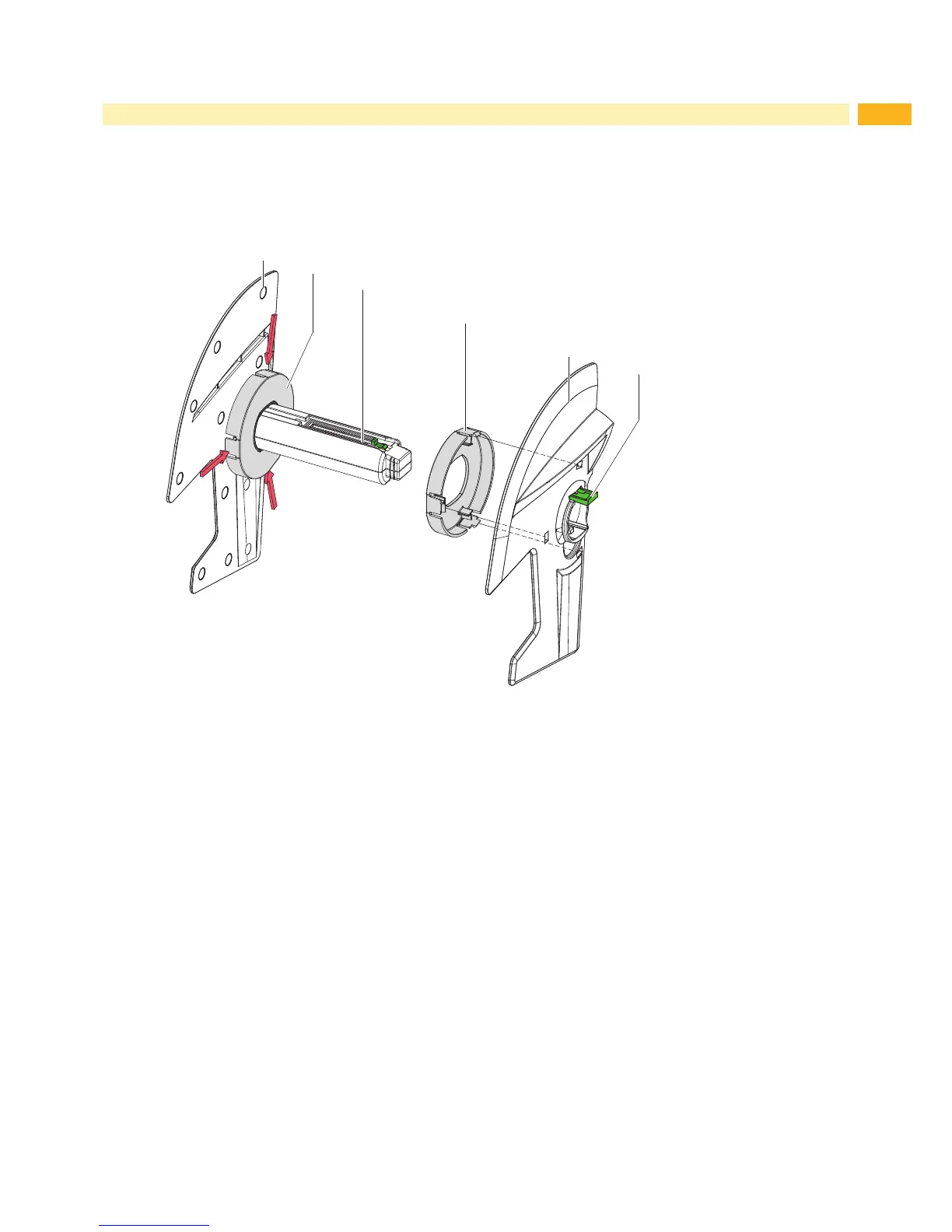

Figure 9 Adapting the roll retainer
Dismounting the adapter
 Open the cover and remove the roll retainer (3) with the margin stops (1,4) from the printer.
 Press the lever (5) and remove the margin stop (4) from the roll retainer (3).
 Presstheadapter(2)inat3pressurepointasshowninthegure,andremoveit.
Mounting the adapter
 Push the adapter (2) on until it slots into place.
