4.2 Loading Fanfold Media
1
5
4
3
2
6

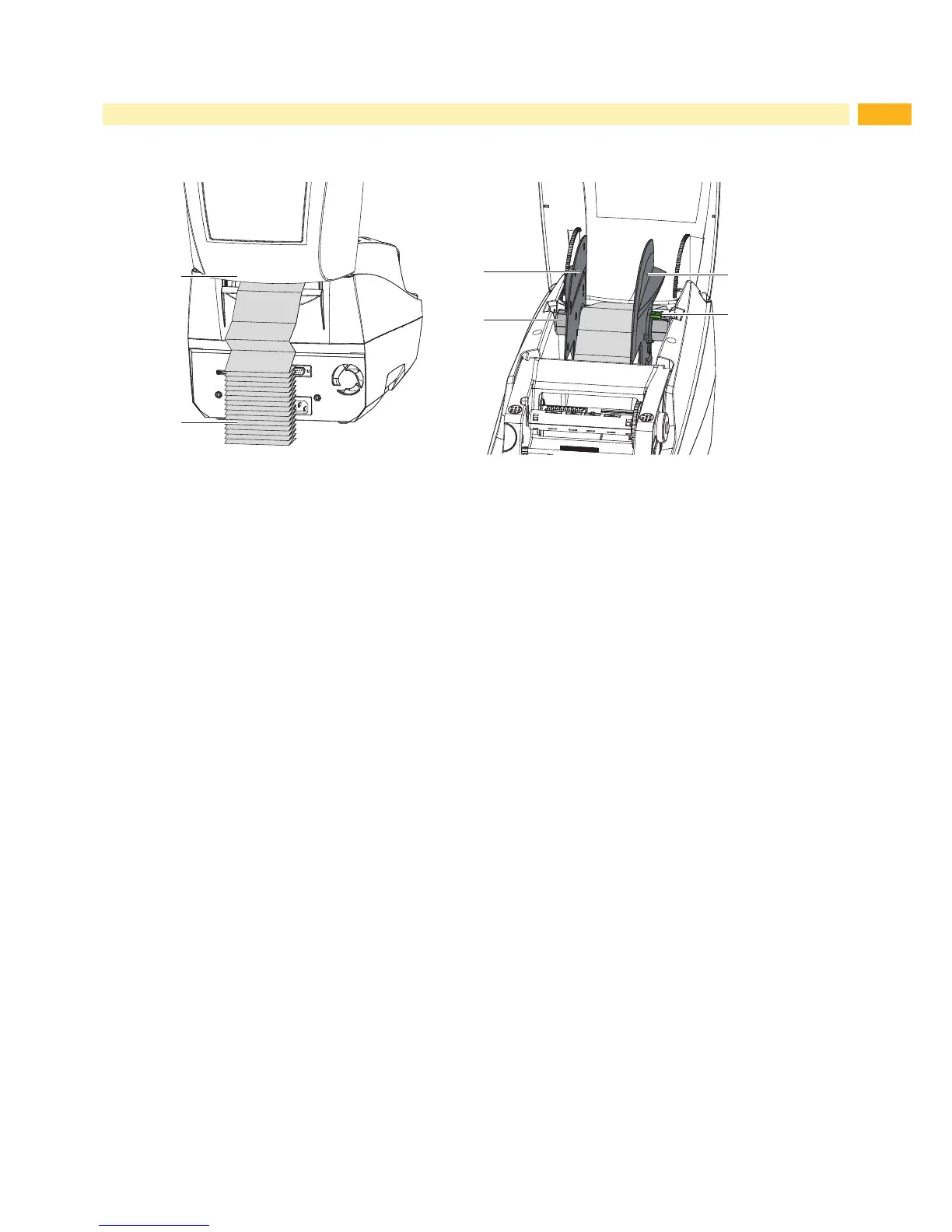

Figure 12 Loading fanfold labels
Stack the labels (2) behind the printer. Ensure that the labels on the strip are facing upwards.
Open the cover and unlock and lower the control panel.
Feed the media underneath the cover (1) into the printer.
Remove the adapters from the margin stops 4.1.1 on page 11 and place the roll retainer with margin stops
into the printer.
Feed the labels between the margin stops (3, 5) over the roll retainer (4).
Push down the lever (6) and slide the margin stops (3,5) against the label edges.
The labels are centered automatically.
Insert the labels into the transport module 4.1.3 on page 12.
