8.2 Device Dimensions
Feed direction
Gap sensors
Reectivesensor
Printhead
Peel-off edge
Cut edge
Tear bar

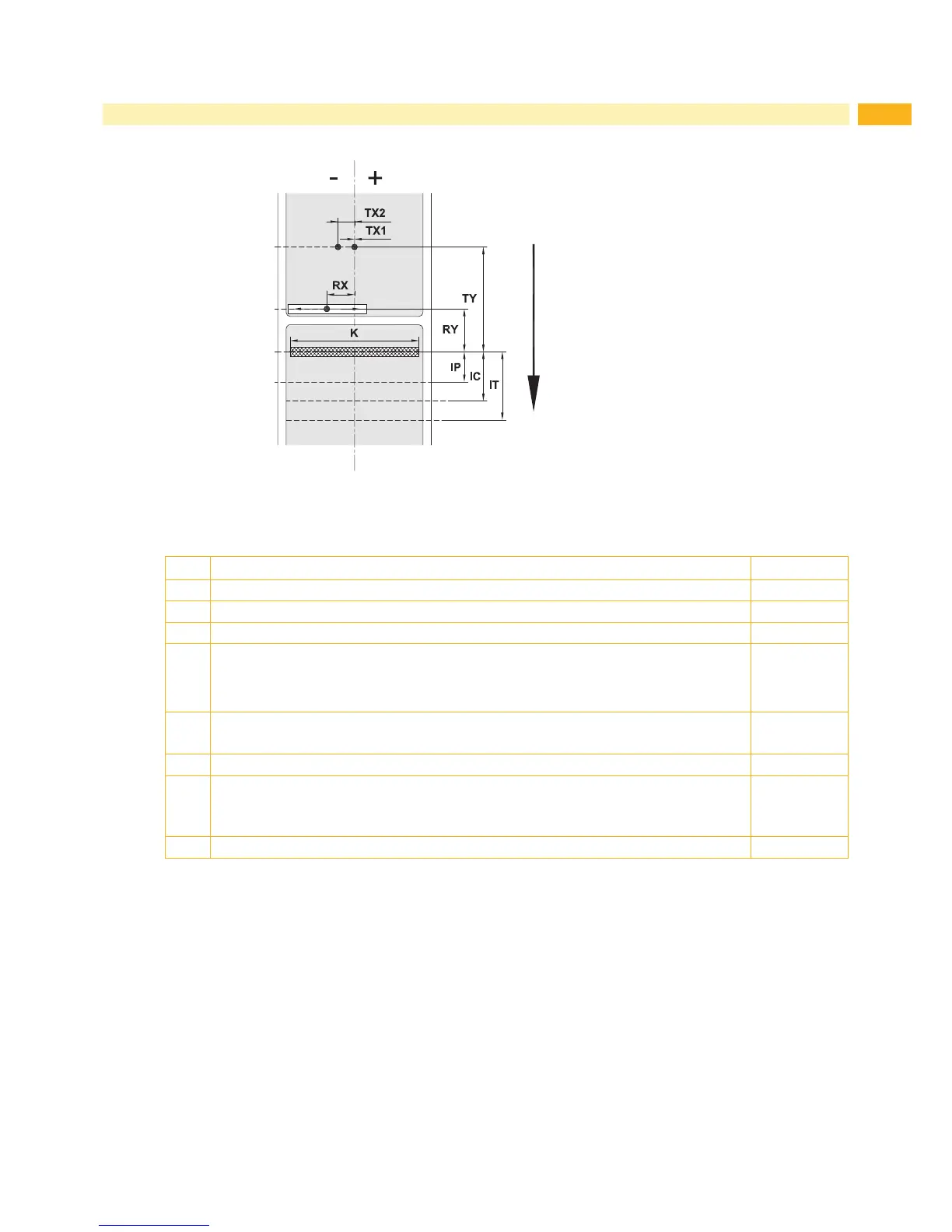

Figure 24 Device dimensions
Dim. Designation Dim. in mm
IP Distance printhead - peel-off edge 13,2
IC Distance printhead - cut edge 17,5
IT Distance printhead - tear bar 24,0
K
Print width with printhead 4.3/200
with printhead 4.3/300
with printhead 4/300
with printhead 4/600
104,0
108,4
105,6
105,6
RX
Distancereectivesensor-middleofpapertrack
i.e.permissibledistanceofreexorcut-outmarksfromthemiddleofthematerial
-56 - +10
RY
Distancereectivesensor-printhead 16,0
TX Distance gap sensor - middle of paper track
TX1 : Sensor for single and multi-lane labels with an odd number of lanes.
TX2 : Sensor for multi-lane labels with an even number of lanes.
0
-10
TY Distance gap sensor - printhead 56,5
Table 9 Device dimensions
