CAB MACH 4.3S/200B User Manual

6 6
2 Installation

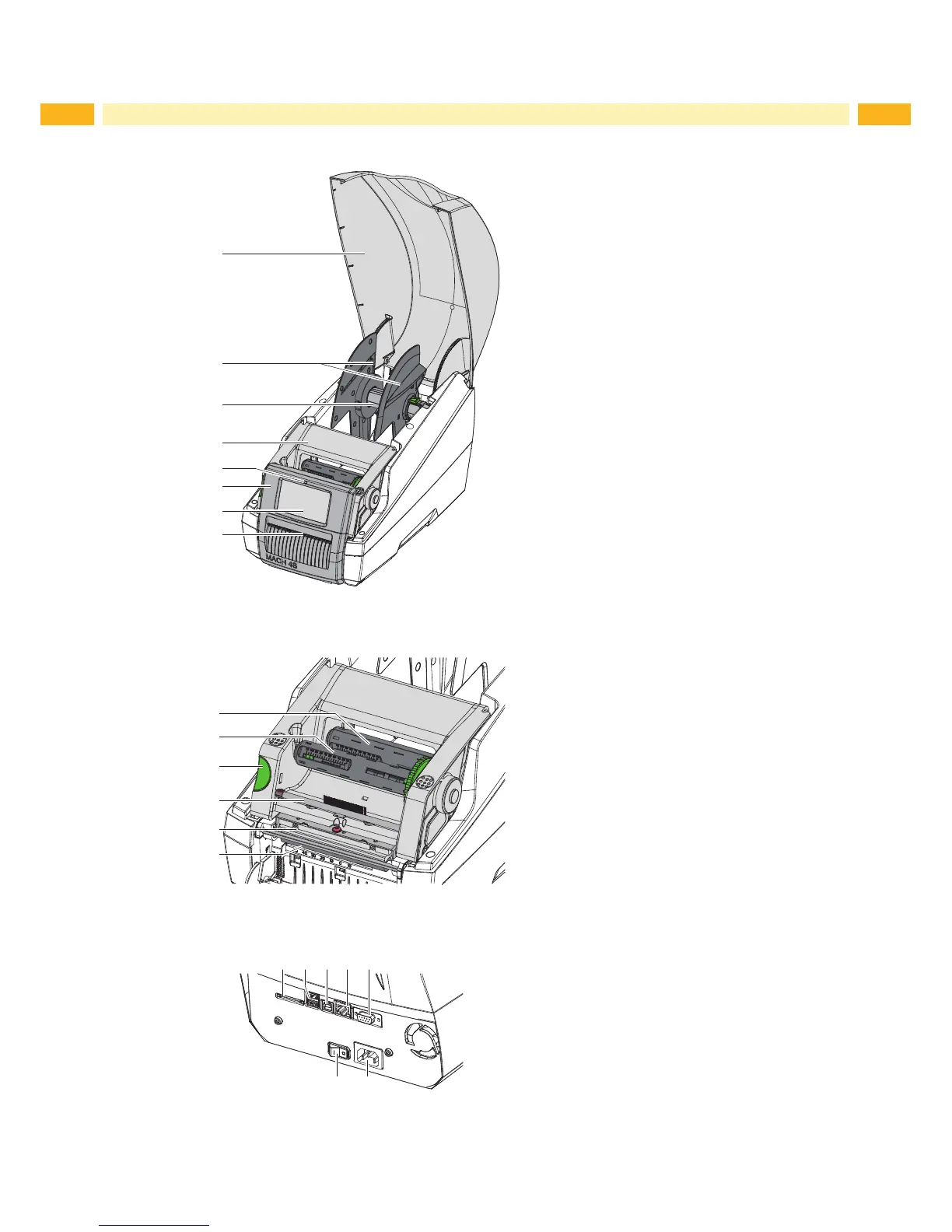

2.1 Device Overview
1
8
7
6
5
4
3
2
1 Cover
2 Margin stop
3 Roll retainer
4 Print module
5 LED "Power on"
6 Control panel
7 Touchscreen display
8 Label outlet
Figure 1 Overview
9
14
13
12
11
10
9 Ribbon unwinder core
10 Ribbon rewinder core
11 Release button
12 Ribbondeection
13 Printhead
14 Print roller
Figure 2 Print module
15
21
16 17 18 19
20
15 Slot for SD card
16 2 USB master ports for keyboard,
scanner, USB memory stick, Bluetooth adapter
or service key
17 USB full-speed slave port
18 Ethernet 10/100 Base-T
19 Serial RS-232 port
20 Power switch
21 Power connection jack
Figure 3 Connections
