3 Adjustments
3.2.2 Adjusting the Printhead Position
In order to achieve the best possible print image the following printhead settings are necessary:
• Align the heating line with the highest point of the print roller. Density of the print image is the greatest at this
point.
• Set the parallelism of horizontal lines with the edge of the label.
Attention!
Risk of damage.
Attempting to adjust the printhead when the xing screws (1) are tight can lead to defects at the printhead
assembly.
Always loosen the xing screws (1) before adjusting the printhead.
1
2
5
3
4

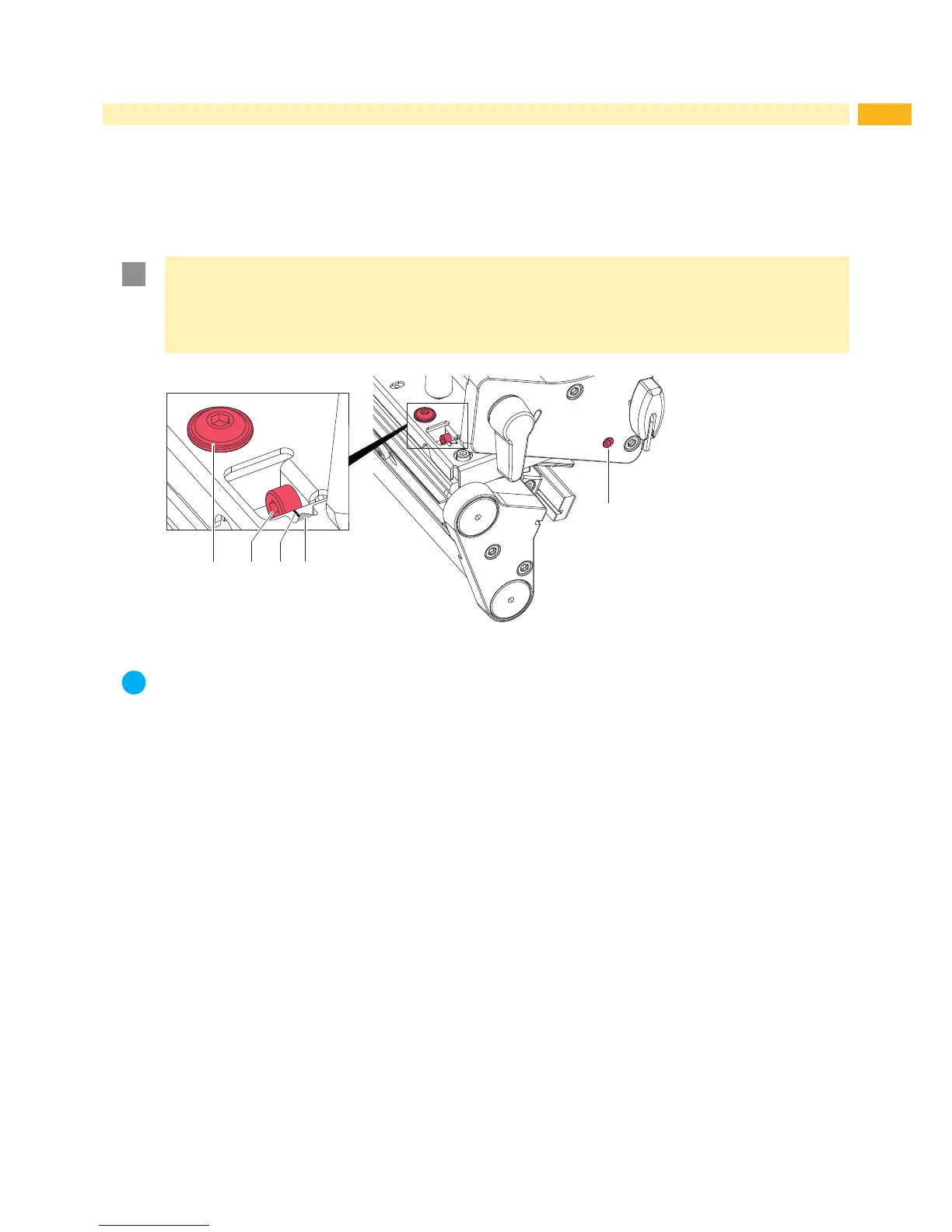

Fig. 15 Adjusting the printhead position
Note!
Open and close the printhead after each step of the adjustment.
1. Loosen the screw (1) about a quarter turn.
2. Align the mark (2) on the carrier plate to the pointer (4) in the printhead carriage by turning the screw (2).
3. Check the printhead alignment with the test function Test grid ( Conguration Manual) or a similar pattern.
4. If horizontal lines are not parallel to the label edges, adjust the parallelism with the screw (2).
5. Set the best possible image quality by turning the eccentric (5).
Differences in the density between the two sides are still permissible.
6. Tighten the screw (1).
7. Continue with the adjustment of the printhead pressure 3.2.3 on page 22.
