CAB SQUIX Service Manual

24 24
3 Adjustments
3.3 Adjusting the Belt Tension at the Main Drive Motor
Danger!
Risk of death via electric shock!
 Before opening the housing cover, disconnect the device from the mains supply and wait at least one
minute until the power supply unit has discharged.
1
1
1
2
3

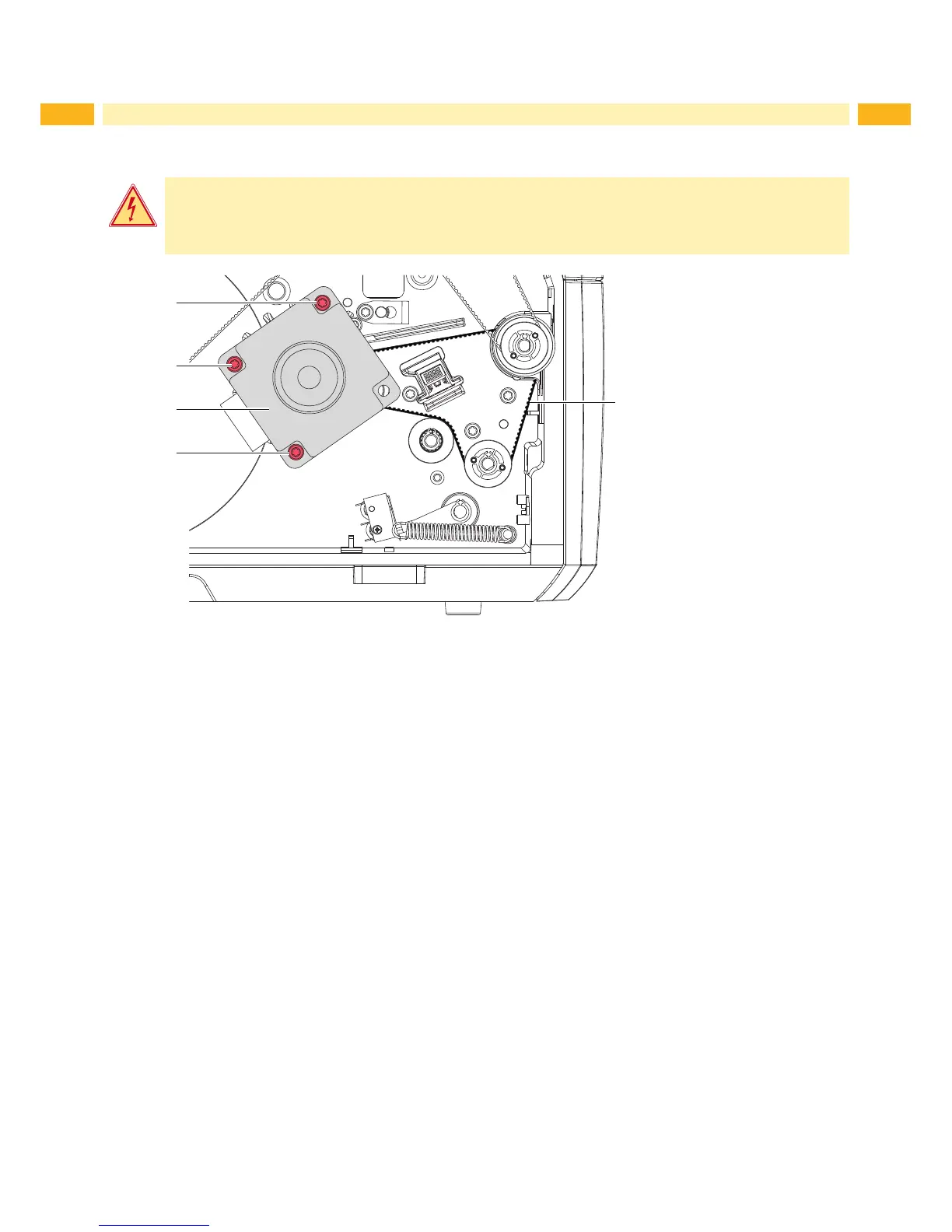

Fig. 18 Adjusting the belt tension
1. Unplug the printer from the electrical outlet.
2. Remove the rear cover.
3. Loosen the three xing screws (1) of the motor (2).
4. Swivel the motor (2) in such a way that the toothed belt (3) is tensioned tightly and tighten the xing screws (1) in
this position of the motor.

CAB SQUIX Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Print Resolution	300 dpi
Max Print Speed	300 mm/s
Display	LCD
Interfaces	USB, Ethernet, Serial (RS232), USB Host
Memory	64 MB RAM
Media Sensors	Reflective, transmissive
Label Length	5 to 4000 mm
Keyboard	Optional
Supported Materials	Paper, plastic, textile
