Appendix B
Charge Algorithms
The C7000-C series battery analyzer uses two different algorithms to charge a
battery: a constant current (CC) method for NiCd and NIMH batteries and a
constant current/constant voltage (CC/CV) method for Li-ion, Li-Ph and SLA
batteries.
NiCd and NIMH batteries

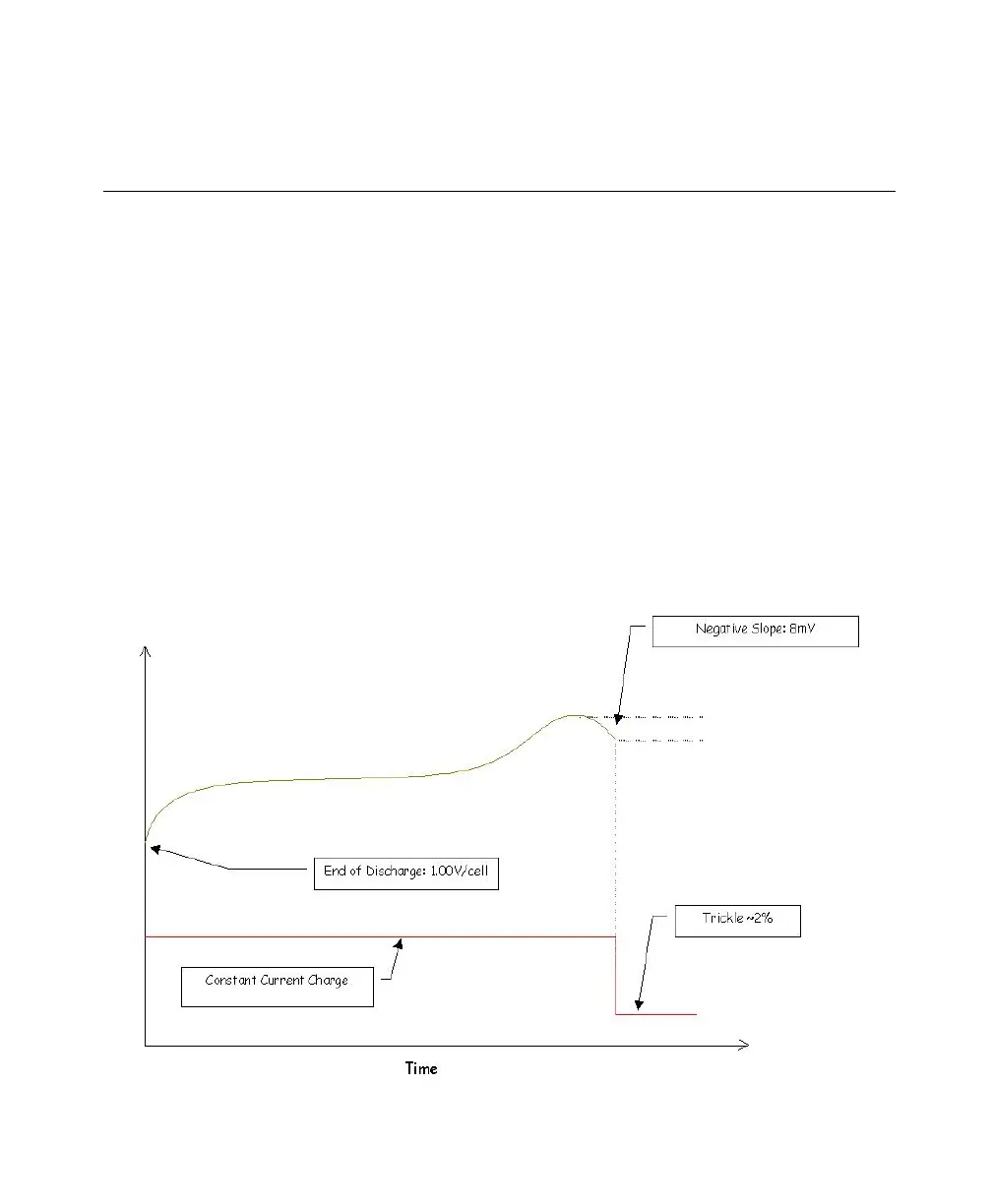

The C7x00 analyzer uses a constant current algorithm to charge NiCd and NiMH
batteries. A current and voltage plot is shown for a typical NiCd battery serviced on
the analyzer using default values. This plot is similar to a NiMH battery.
Cadex Electronics Inc. C7000-C Series Battery Analyzers .
148
