WIRING DIAGRAM
ELECTRICAL INSTALLATION
ELECTRICAL REQUIREMENTS AND PRECAUTIONS
Your spa has been carefully designed to give you maximum safety against electrical shock. Connecting the spa to an improperly wired circuit will negate many of the
spa’s safety features. Improper wiring may also cause electrocution, risk of fire, and other risks of injuries. Please read and follow the electrical installation requirements
and instructions for your spa completely!
THE SPAS MUST BE WIRED IN ACCORDANCE WITH ALL APPLICABLE NATIONAL AND LOCAL ELECTRICAL CODES. ALL ELECTRICAL WORK SHOULD BE
DONE BY AN EXPERIENCED, LICENSED ELECTRICIAN. WE RECOMMEND THE USE OF APPROPRIATE ELECTRICAL CONDUIT, FITTINGS, AND WIRE FOR ALL
CIRCUITS.
The Cumberland and Aventine spas requires a 16 amp, single phase, 230 volt, three wire service (one line, one neutral, one ground). Converting the Cumberland or
Aventine to a 20 amp service will allow the jet pump to operate simultaneously with the heater. The Olympia spa requires a 25 amp single phase, 230 volt, three
wire service (one line, one neutral, one ground) found on the next page. Additionally, one main disconnect switch with at least 3 mm separation between contacts
must be used for all electrical circuits to the spa.
Mount the subpanel according to local codes, but not closer than 1.5 meters (5 feet) away.
CONDUIT INSTALLATION INSTRUCTIONS
1. To connect the electrical service, first remove the screws and open the equipment compartment door.
2. Locate the control box. Loosen the screws on the front of the control box. Remove the screws and the control box cover.
3. Route the electrical conduit through the access opening on either side of the spa.

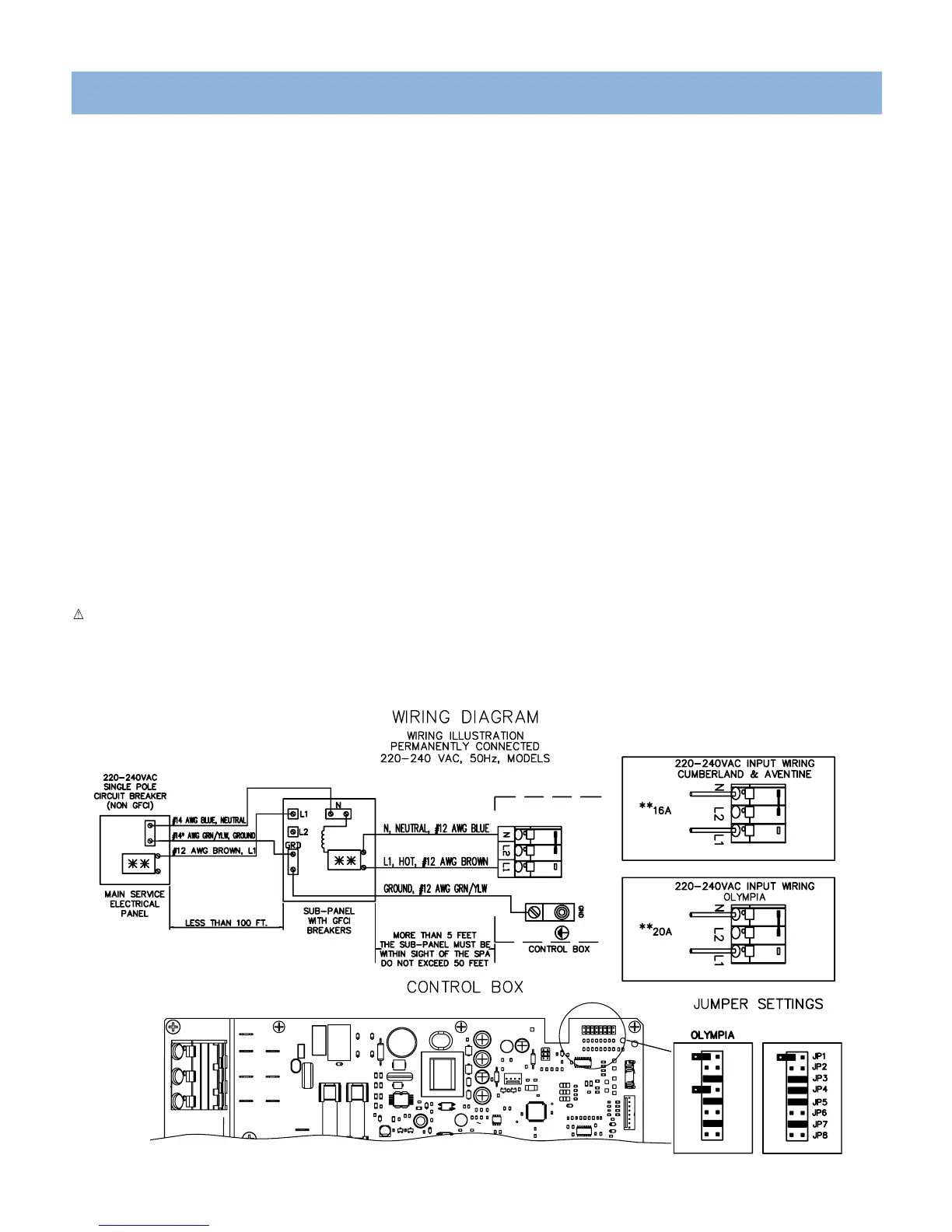

4. Connect the supply conduit to the control box and connect the wiring as detailed figure below, or on the wiring diagram label on the inside of the control box
cover.
WARNING: Removing or bypassing any GFCI breaker will result in an unsafe spa and will void the spa’s warranty.
IMPORTANT: Should you ever find the need to move or relocate your spa, it is essential that you understand and apply these installation requirements. Your spa has
been carefully engineered to provide maximum safety against electric shock. Remember, connecting the spa to an improperly wired circuit will negate many of its safety
features.
NOTE: Long wiring runs may require larger-gauge wire than stated.
To Next Page
