CUSTOMIZING YOUR MASSAGE

Your Caldera spa offers numerous ways for you to customize your massage experience. Experimentation is the best way to find what feels best to you. Try sitting in

different seats, adjusting the diverter valves, air controls, and jet nozzles and turning each pump on or off.

DIVERTER VALVES

The diverter valves on your spa allow you to direct the flow of water from the pumps to

various combinations of jets. The functions of these diverter valves can best be learned

by experimentation as follows:

1. Set all air controls to the “ON” position by rotating counterclockwise.

2. Turn on both pumps.

3. Turn the handle on each diverter valve and see which groups of jets are affected.

(Note that you can adjust the diverter valves to any position between the two

possible extremes to achieve the jet pressure that feels best to you.)

IMPORTANT: Your spa is not designed to provide full power to all jets when the diverter

valves are in the “mid” position. However, with the diverter valve in this position, you

may increase the power to selected jets by rotating the face of the Vigo and VigoTec

jets to close the ones that are not in use.

TIP: Turn both pumps on and place the diverter valves to the “Mid-Position”. Then

experiment with each of the air controls to see their effect.

WATERFALL VALVE

The Geneva

, Niagara

, Tahitian

, Elation

, Aspire

, Moorea

, Hawaiian, and Martinique

are equipped with the Acquarella

Waterfall feature (NOTE: The waterfall on the Moorea, Hawaiian, and Martinique does not light up). It is activated by

pressing on JETS2 (either low or high speed). The flow is regulated by turning the Acquarella Waterfall valve located on the

inside wall of the spa. The Olympia spa waterfall feature is activated by pressing JETS to activate the two-speed pump

and turning the valve, located on the front interior wall, counterclockwise. The flow is regulated by turning the waterfall

valve to the desired position.

ATLAS

NECK JET VALVE

The Geneva, Niagara, Tahitian

, and Elation spas are equipped with 4 directional neck jets located in the

Optomassage Seat. The flow of the neck jets is regulated by turning the Atlas NeckJet valve on the inside

wall of the spa.

AIR CONTROLS

Each jet system has its own air control. These allow you to change the power of the jets by regulating the

amount of air that is mixed with the water coming out of the jets.

HYDRO JETS

Note: All Hydro jet images are shown with stainless steel escutcheons.

AdaptaFlo

Jet - This jet allows you to redirect the jet stream by changing the position of the nozzle.

AdaptaSsage

Jet - This jet provides a rotating massage pattern, (optional on Olympia, Cumberland

, Aventine

The face plates in the AdaptaFlo jets and the AdaptaSsage jets are interchangeable. To remove a AdaptaSsage face

plate, turn it counter-clockwise until it stops turning. Turn the face once more until you hear a clicking noise. Push the

face in, and then pull it straight off. Install the face plate by snapping it into place. Additional AdaptaSsage dual-port

nozzles are available from your Caldera dealer.

Both the AdaptaFlo and AdaptaSsage jets allow you to regulate the force of the massage. Rotate the fascia ring clockwise to reduce the force, or counter-clockwise to

increase the force. Notice that turning off the flow to some jets increases the flow to the other jets. To avoid damage to your spa’s plumbing and components, do not

turn off more than half of these jets at the same time.

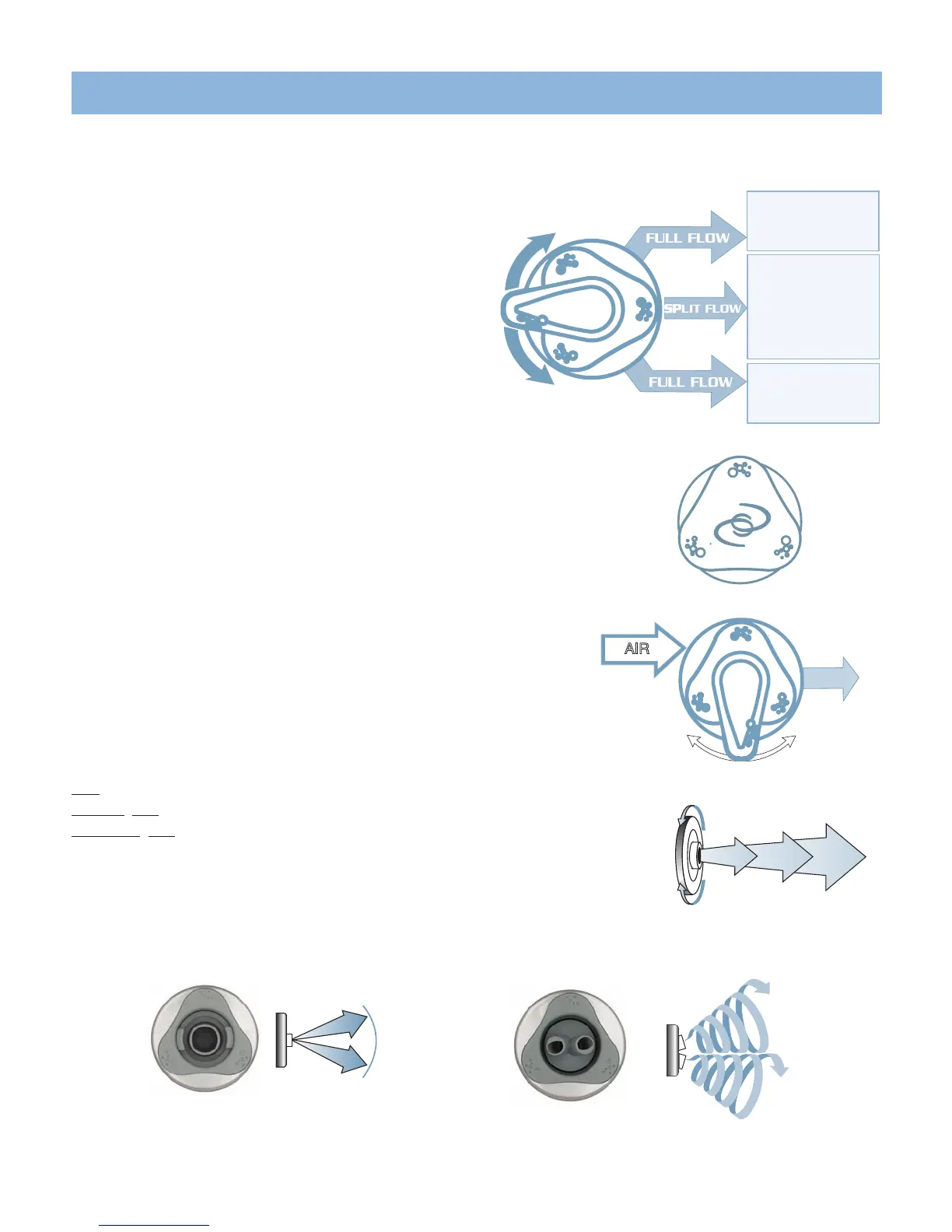

Position 1 - The full flow

is directed to one series

of jets.

Mid-Position -

Positioning the diverter

at any point between

position one and two

divides the flow between

the jet systems.

Position 2 - The full flow

is directed to a second
