Caliber MCD795 - Wiring Diagram - Audio; Video Connections

VIDEO IN
YELLOW
AUDIO IN R
AUDIO INPUT (RIGHT)
AUDIO IN L
AUDIO INPUT (LEFT)
VIDEO OUT (1)
VIDEO (1) OUTPUT
VIDEO OUT (2)
VIDEO (2) OUTPUT
RED
WHITE
YELLOW
YELLOW
VCR or DVD
or
GAME CONSOLE
SUB
WOOFER
FUSE
VIDEO INPUT
GPS AERIAL
GPS AERIAL
SUB-W OUT
SUB-WOOFER OUTPUT
BLUE
Connecting the System

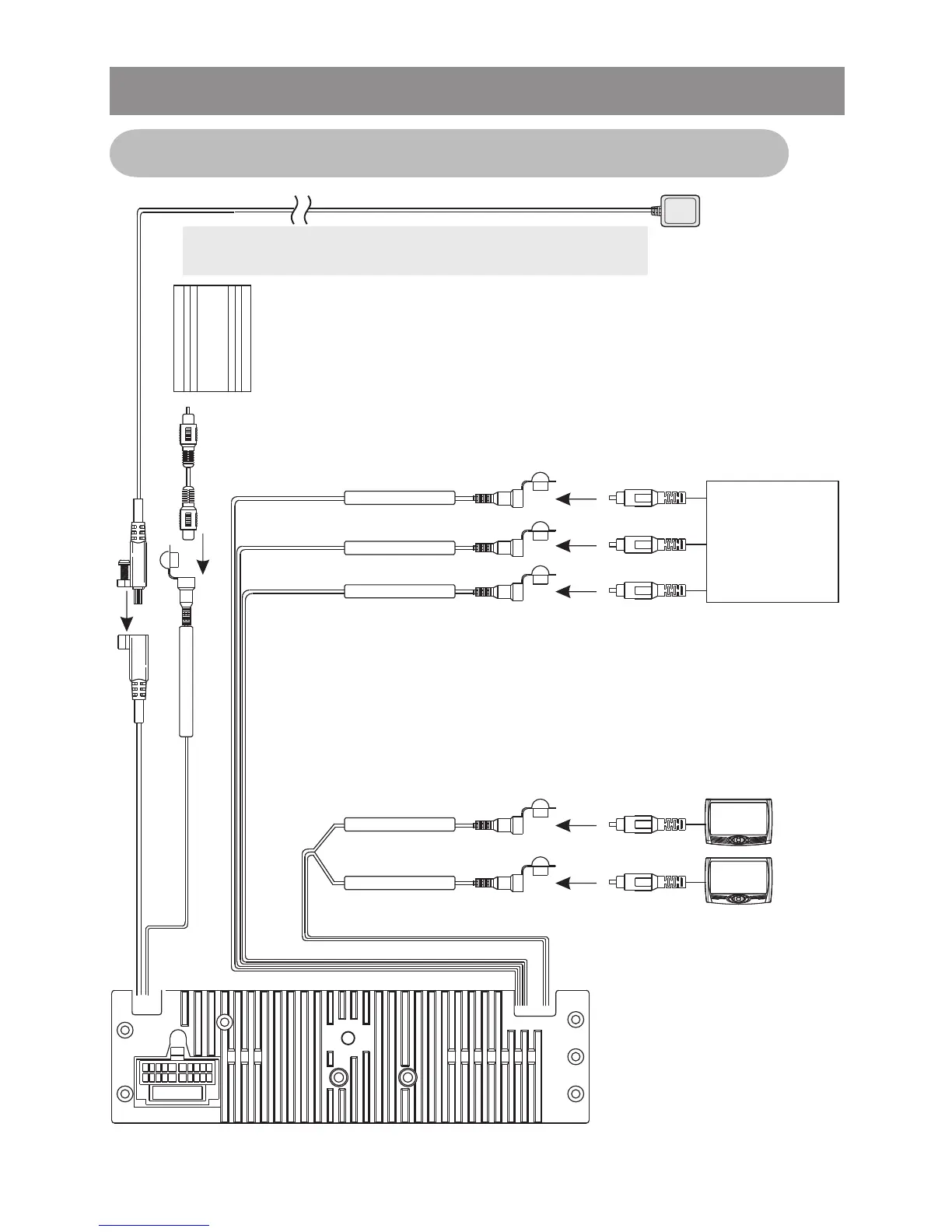

Wiring Diagram - Audio / Video Connections
Note: Please refer to the "Installing the GPS Aerial". For
the proper mounting or installation of this GPS AERIAL.
