166 BRIO 36 Audio Production System with Optional Networking COMMUNICATIONS

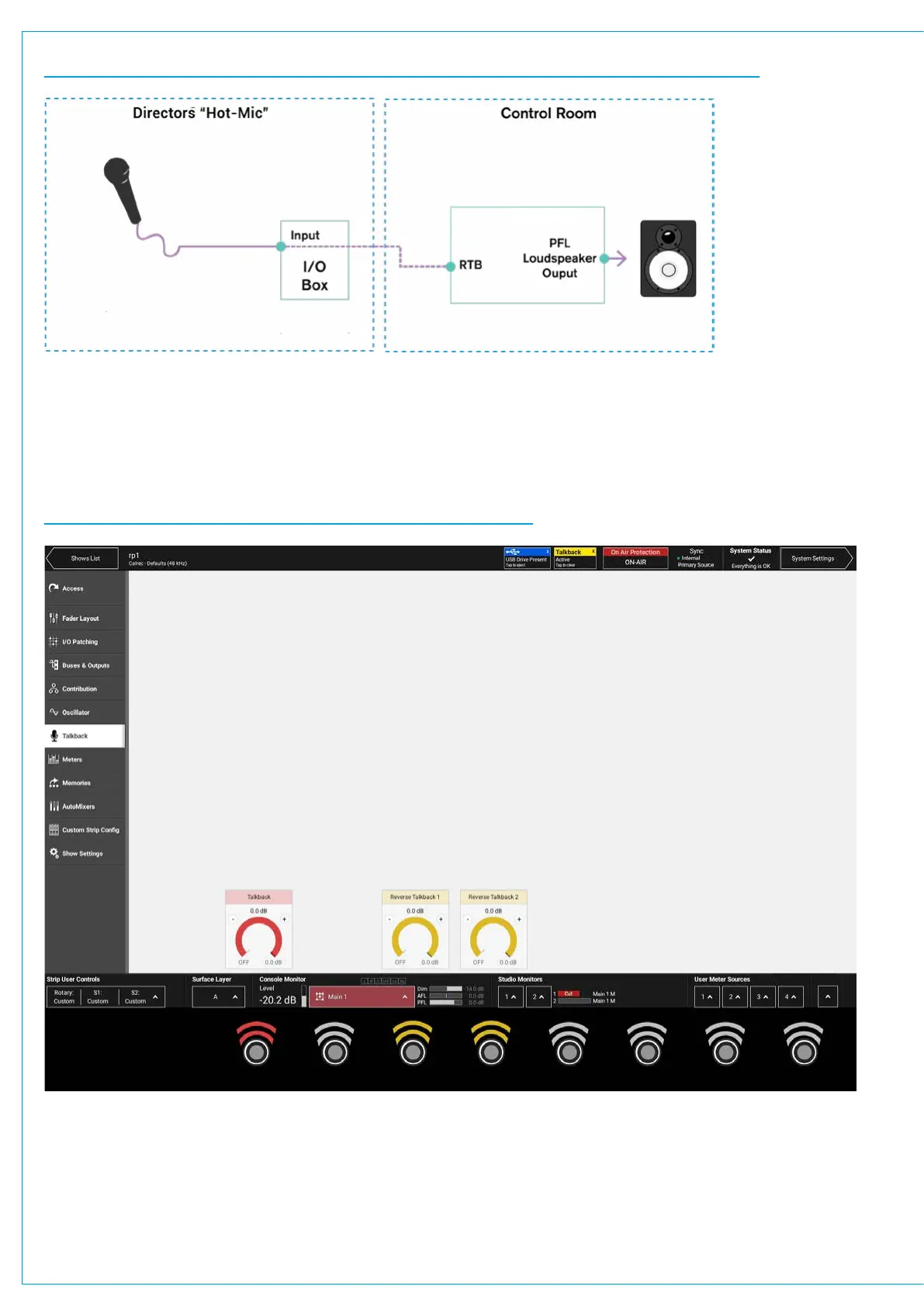

FIGURE 2 - REVERSE TALKBACK SWITCH SENDS THE MICROPHONE FEED TO THE PFL LS OUTPUT
Talkback & Reverse Talkback Levels
In the Active show page, Tap “Talkback” from the left hand menu this opens the Talkback and reverse talkback level
controls page as shown in Figure 3 together with their contextual controls.
FIGURE 3 - TALKBACK AND REVERSE TALKBACK LEVEL CONTROLS
