Talkback Output
• The talkback output feed is provided to allow you to patch the talkback feed from the console operator to a specific
location, e.g. a comms system.
Tone Output
• As well as being routed to paths, tone can be hard-patched to an I/O box or Hydra patchbay output using the tone
output.
Inserts
• Inserts provide a quick way to insert third-party signal processing equipment into a path.
• Each Insert can be placed pre EQ, pre fader or post fader. When switched in, an insert breaks the signal path,
providing a send out and a return back in, allowing devices like external effects processors to be placed within the
signal flow of a path.
• Insert sends and returns appear in the I/O patching screen from where they can be patched to I/O box ports for
connection to external devices.
• Inserts are available for faders, mains, groups and the console monitor.
• 2 fader inserts are available for each path. If the path is moved to a different fader, the insert will move along with it.
• Each insert has an individual ‘IN/OUT’ switch.
• Monitor inserts are used to insert processing into monitor feeds, such as surround processors and renderers.
See “INSERTS” on page 124 for more information.

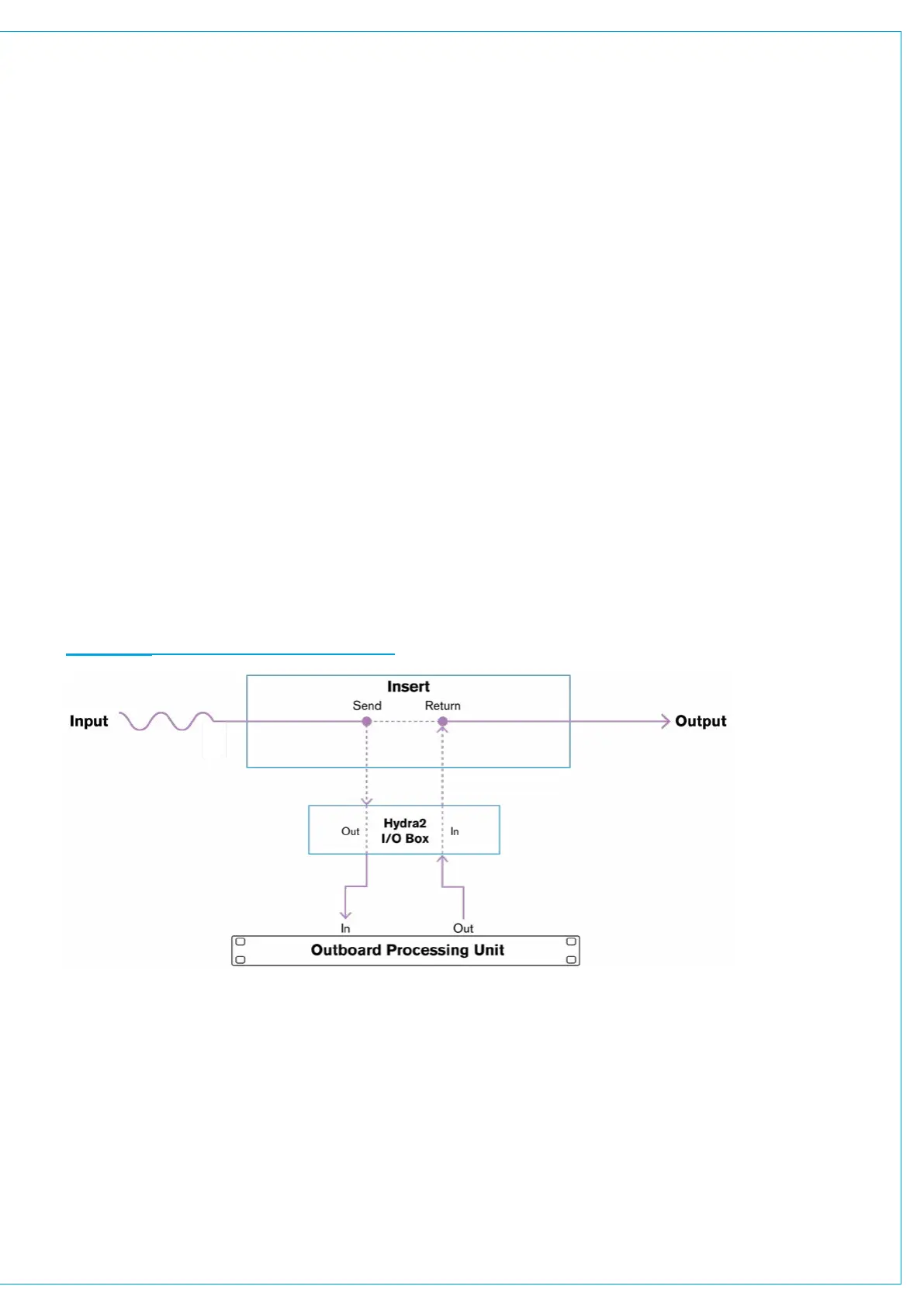

FIGURE 3 - INSERTS—GENERAL OPERATION
