Cambium Networks PMP 450 AP Planning And Installation Guide

Chapter 5: Installation Installing external antennas to a connectorized
ODU
Page 31
8
Attach the rear strap to the upper bracket using
(2) serrated flange nuts and (1) retaining
bracket. Do not tighten the nuts now.

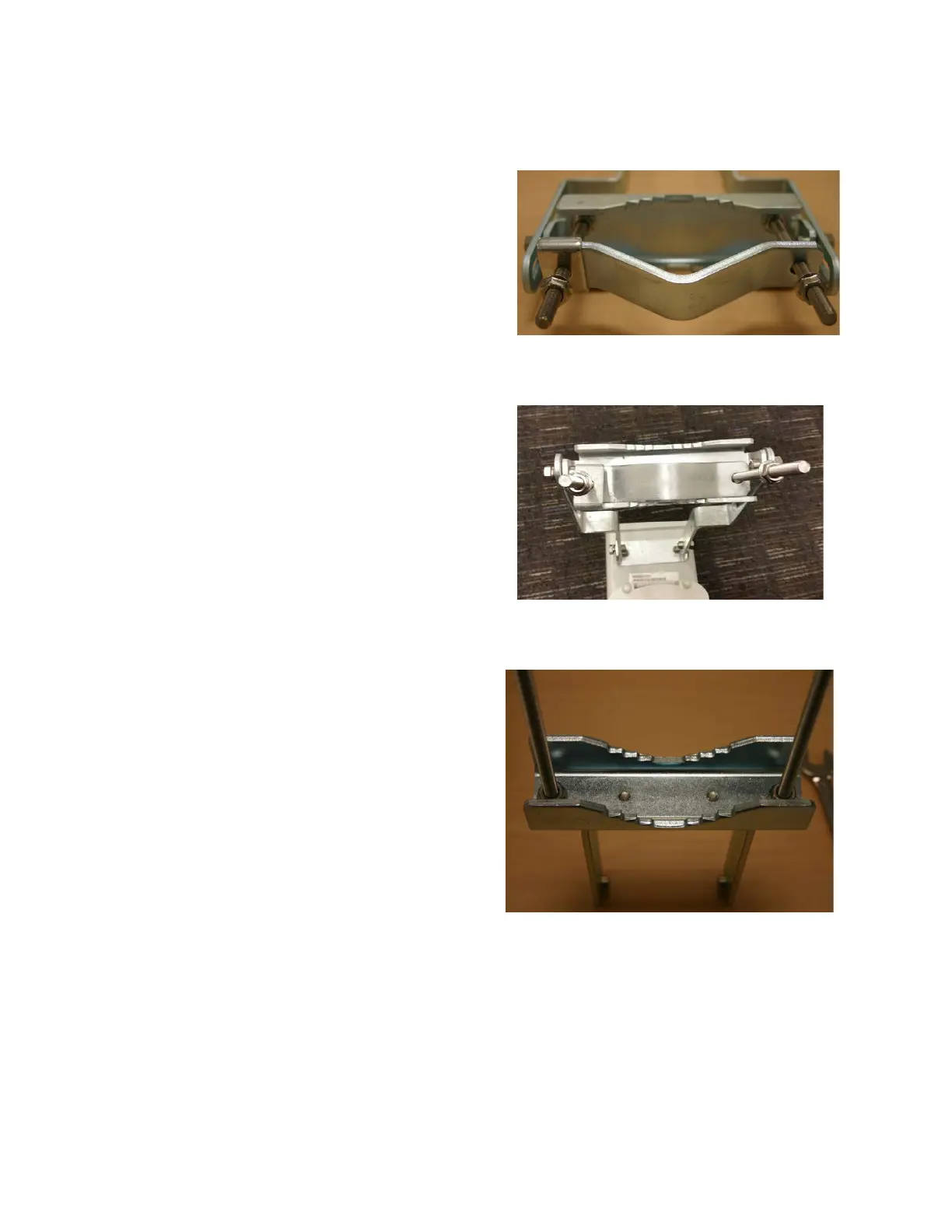

Figure 91 Rear strap connected to upper AP
antenna bracket
9
Attach the entire upper bracket to the antenna
using (2) hex bolts, (2) flat washers and (2) lock
washers. Feed the bolt through the lock washer
then flat washer, then thread the bolt into the
upper bracket’s threaded receptacle.
Figure 92 Assembled upper bracket
connected to AP antenna
10
Begin assembling the lower bracket by
attaching the (2) 7” hex bolts to the bracket
using (2) serrated flange nuts
Figure 93 AP Antenna Lower Bracket
Assembly
11
Attach the rear strap to the bracket using (2) serrated flange nuts and (1) retaining bracket. Do
not tighten the nuts now.
Attach the entire lower bracket to the antenna using (2) hex bolts, (2) flat washers and (2) lock
washers.
