Cambium Networks PMP 450 AP Planning And Installation Guide

Chapter 2: System hardware System Components
Page
2-13
PMP/PTP 450 Series interfaces - AP
The PMP 450 Series - AP interfaces are illustrated below.

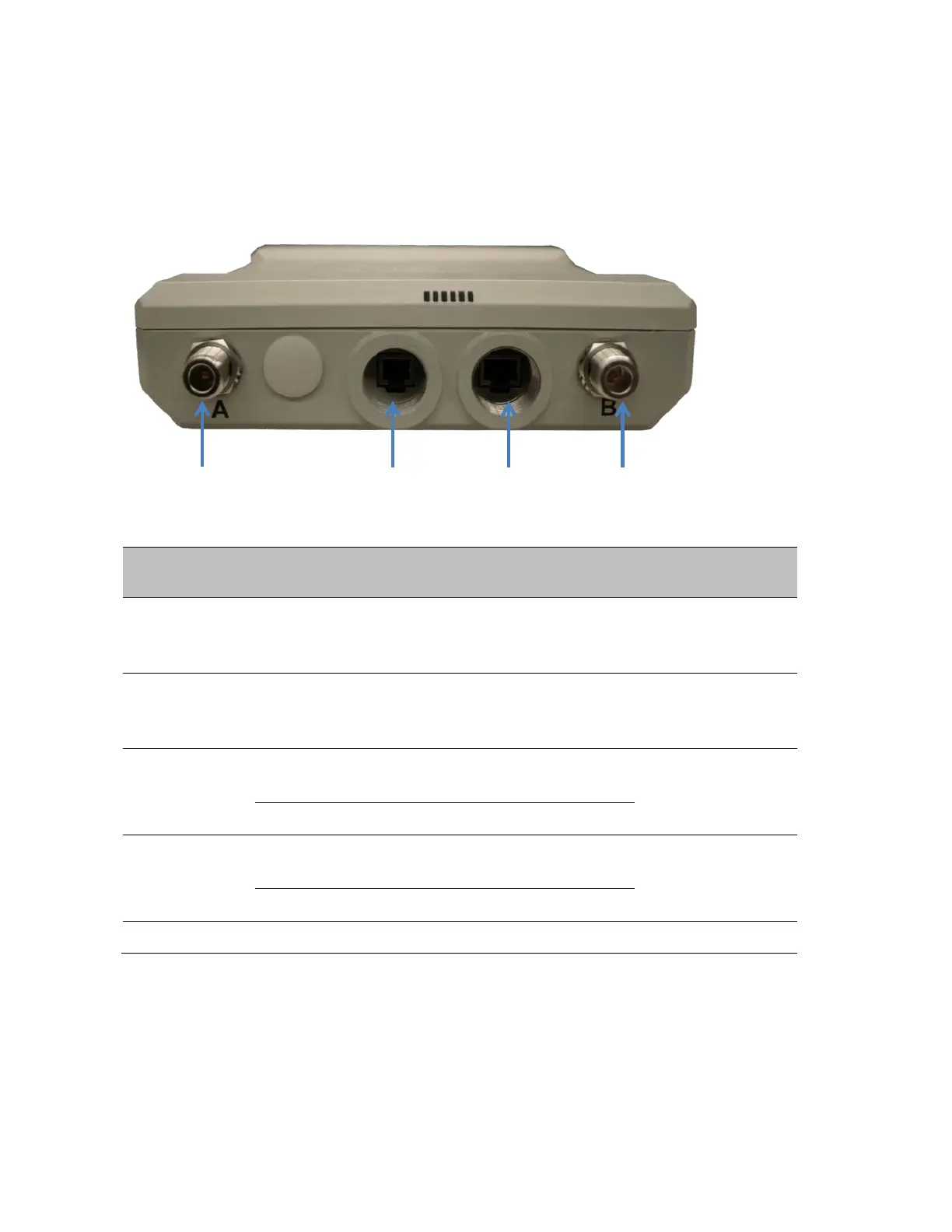

Figure 8 PMP/PTP 450 Series - AP interfaces
Table 23 PMP/PTP 450 Series - AP interface descriptions and cabling – 2.4 GHz and 5 GHz
Interface
Function
Cabling
PSU/Ethernet
Power-over-Ethernet, Ethernet
communications (management and
data)
RJ45 Cable
Sync/Default
GPS synchronization signaling, provides
power to UGPS module. Default plug
port.
RJ11 cable, default
plug.
RF Port A
2.4 GHz -45 degree RF connection to AP
antenna
50 ohm RF cable, N-
type
5 GHz
Vertical RF connection to AP antenna
RF Port B
2.4 GHz +45 degree RF connection to AP
antenna
50 ohm RF cable, N-
type
5 GHz
Horizontal RF connection to AP antenna
Ground Lugs For grounding the unit 10 AWG copper wire
PMP/PTP 450 Series interfaces – SM/BH
The PMP 450 Series SM/BH interfaces are illustrated below.
Figure 9 PMP/PTP 450 Series – SM/BH interfaces
RF Port A
Sync/Default
Ethernet
RF port B
