Cambridge Audio Edge NQ User Manual

12
Edge Link

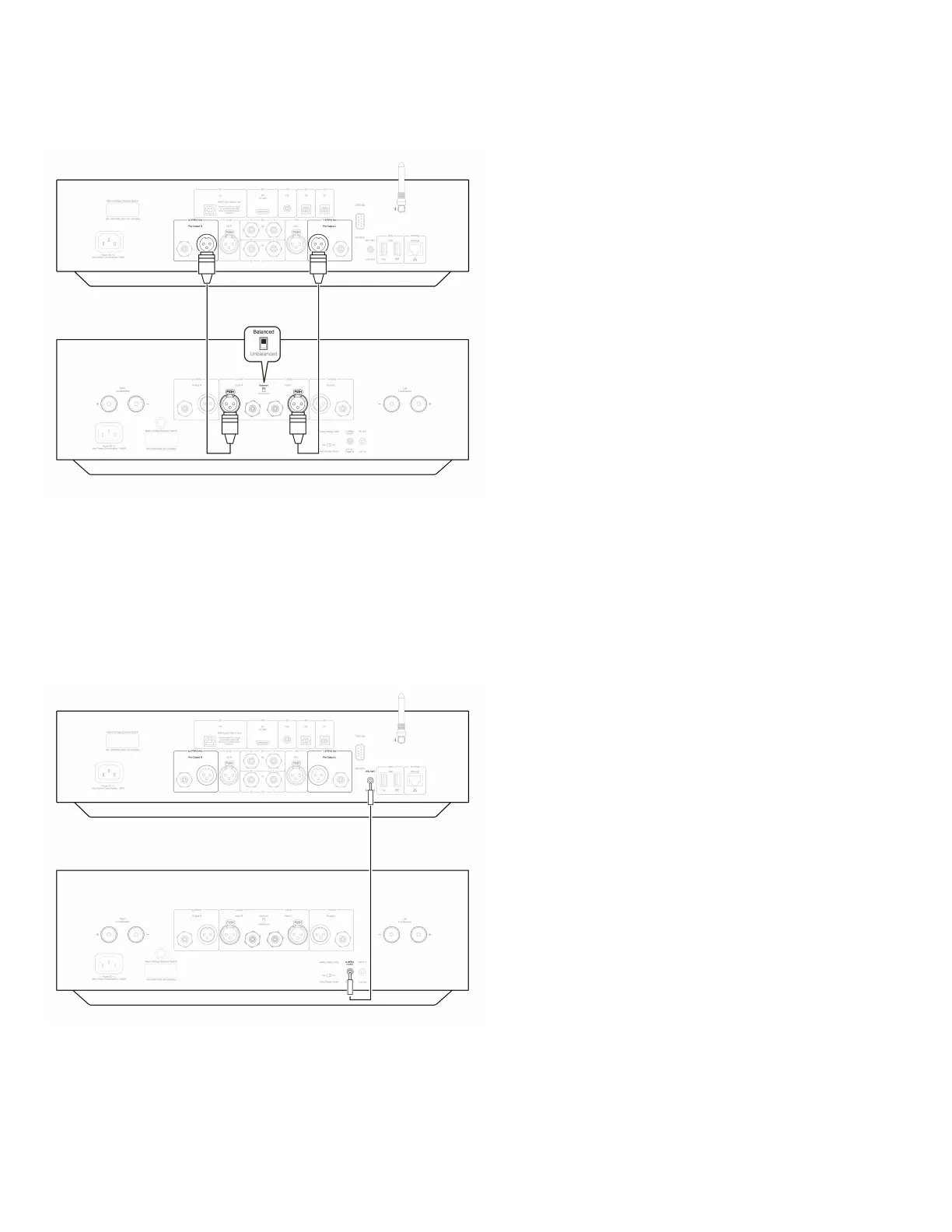

Edge Link allows Edge series products to synchronise when powering up the units. See the following diagrams when connecting the EDGE NQ using the
provided Link cable.
EDGE NQ with EDGE W (via StreamMagic app)
When using the app to turn the EDGE NQ on/off, this will also turn the EDGE W on/off.

Cambridge Audio Edge NQ Specifications

General

Type	Network Player / Preamplifier
DAC	ESS Sabre ES9018K2M
Maximum Resolution Supported	32-bit/384kHz PCM, DSD256
Ethernet	Yes
Weight	10.2 kg (22.5 lbs)
Inputs	2x Coax S/PDIF, 2x TOSLINK Optical, 1x USB Audio, 1x XLR
Outputs	1x RCA, 1x XLR, 1x Coaxial S/PDIF, 1x TOSLINK Optical
Streaming Services	Chromecast, Spotify Connect, TIDAL, Qobuz, AirPlay, Internet Radio
File Formats Supported	FLAC, ALAC, WAV, AIFF, MP3, AAC, WMA, OGG, DSD
Wi-Fi	Yes (802.11 b/g/n/ac)
Bluetooth	Yes, aptX HD
USB Audio Input	Yes
Headphone Output	Yes, 6.3mm jack
Dimensions	120 x 460 x 405mm (4.7" x 18.1" x 15.9")
