Cambridge Audio Edge NQ User Manual

6

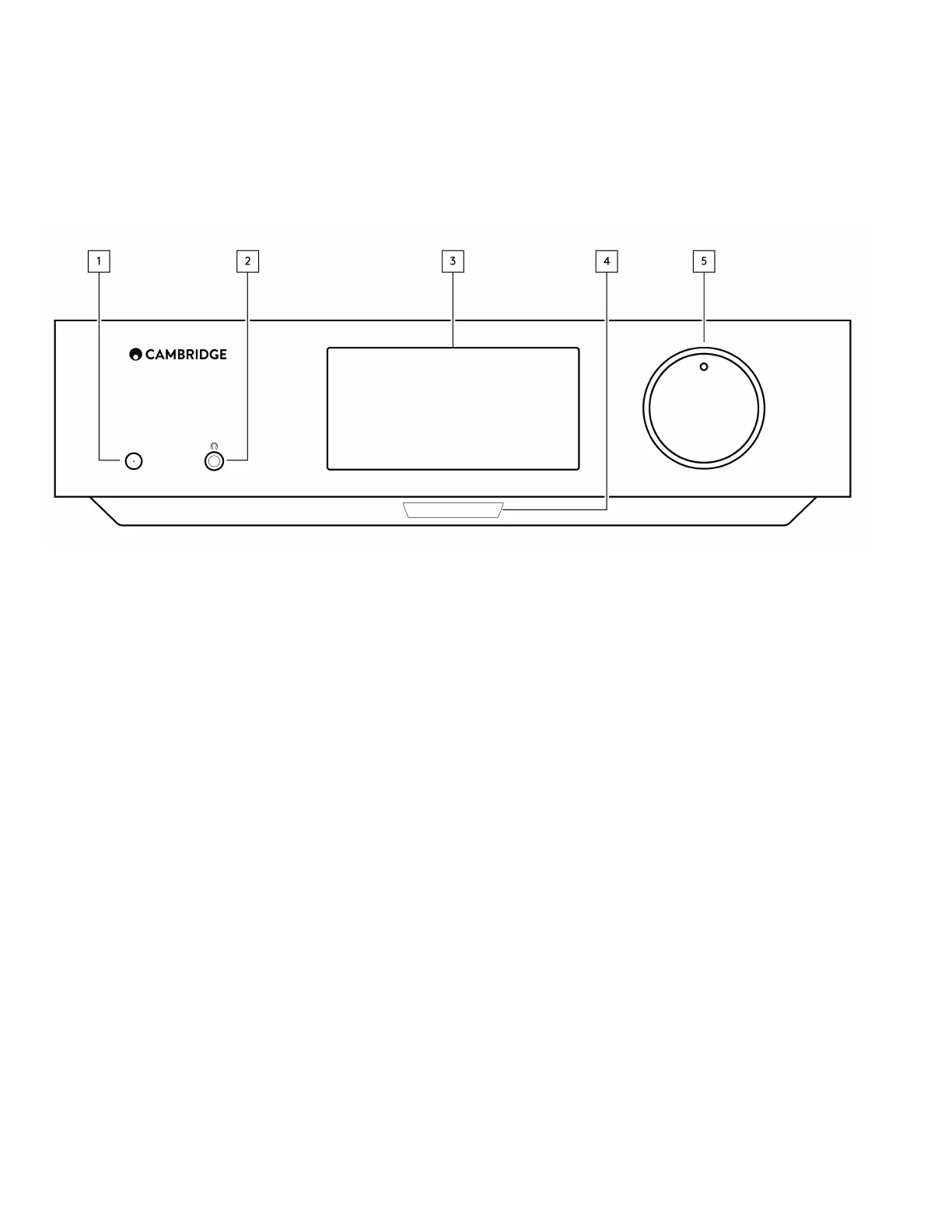

Front Panel Controls
Last updated: September 2, 2022 12:51. Revision #5802
1. Standby/On
Switches the unit between Standby Mode (indicated by dim power LED) and On (indicated by bright power LED). Standby Mode is a low power mode (0.5
Watts). The unit should be left in Standby Mode when not in use.
2. Headphones
For suitable headphones – connection will automatically mute the pre-out. Headphones with an impedance of between 8 and 600 Ohm's are
recommended.
3. Display
4. Infrared sensor
To enable IR sensor commands from the remote control.
5. Volume/Source Selector
To change the volume, rotate the front part.
To select a source, rotate the back part.

Cambridge Audio Edge NQ Specifications

General

Type	Network Player / Preamplifier
DAC	ESS Sabre ES9018K2M
Maximum Resolution Supported	32-bit/384kHz PCM, DSD256
Ethernet	Yes
Weight	10.2 kg (22.5 lbs)
Inputs	2x Coax S/PDIF, 2x TOSLINK Optical, 1x USB Audio, 1x XLR
Outputs	1x RCA, 1x XLR, 1x Coaxial S/PDIF, 1x TOSLINK Optical
Streaming Services	Chromecast, Spotify Connect, TIDAL, Qobuz, AirPlay, Internet Radio
File Formats Supported	FLAC, ALAC, WAV, AIFF, MP3, AAC, WMA, OGG, DSD
Wi-Fi	Yes (802.11 b/g/n/ac)
Bluetooth	Yes, aptX HD
USB Audio Input	Yes
Headphone Output	Yes, 6.3mm jack
Dimensions	120 x 460 x 405mm (4.7" x 18.1" x 15.9")
