CAME ATI series

A3000A A5000A
A 130 mm 200 mm
B 130 mm 200 mm
E 720 mm 920 mm
A
B
E


,4
,4



15!$2/#/-!.$/
&53)"),)
,).%!!
:!
#(
!&
&53)"),%
#%.42!,).!
!
4,
4#!
42-
/
.
#(
56789%%
30##8""
,,
5
6
7
8
9
56
7
M2
56
7
M1
Pag.
9
- Manual code:
119DV74
119DV74 ver.
1.0
01/2011
© CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH

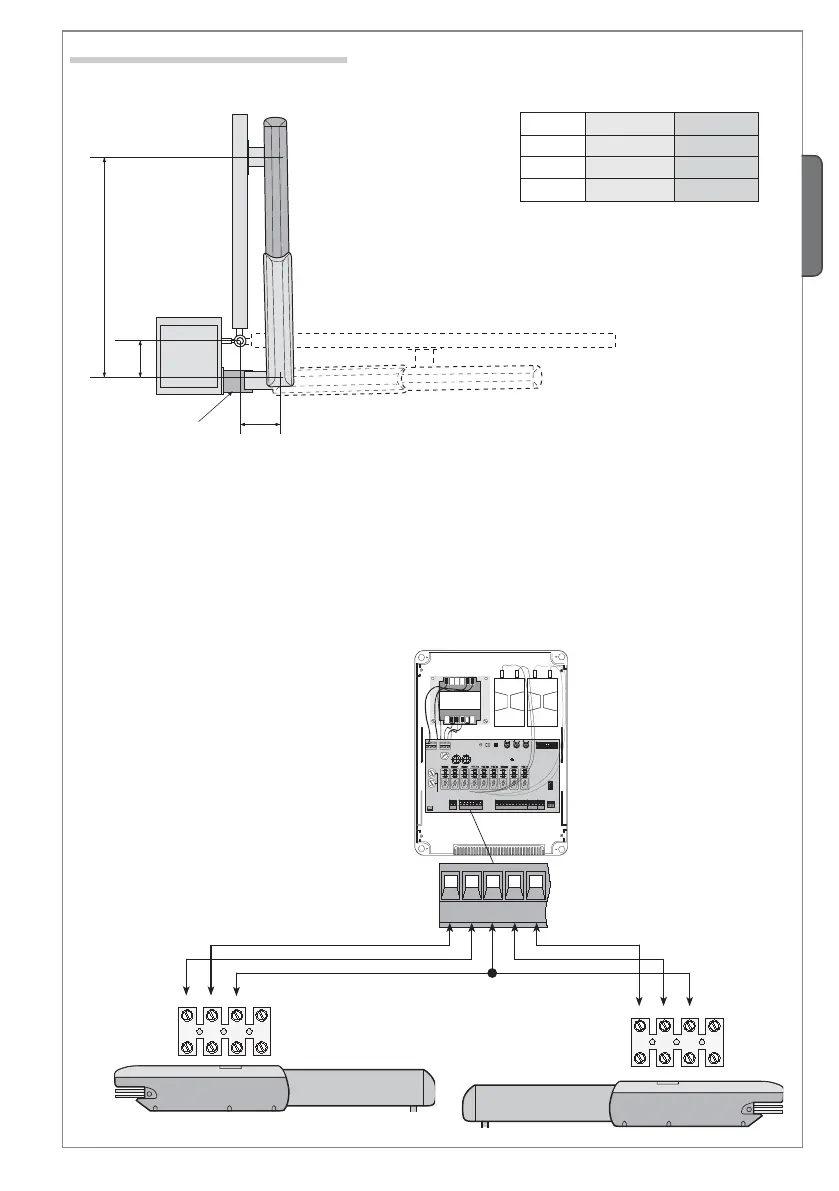

- Measure values A and B (Tab. 4)
- Secure the tail bracket to an extra bracket and apply to post.
- Open gate (max 90°), measure value E (Tab. 4) and secure head bracket to gate leaf.
- Perform electrical connections;
- Reposition and adjust openin stop microswitch.
5.9 Application for outward opening
Outward
Inward
Extra bracket
Tab. 4
