7 Maintenance
7.1 Periodic maintenance
Periodic maintenance to be carried out by the end-user is as follows: wipe clean the glass surface of the photocells; check
that the safety devices work properly; remove any obstructions.
We suggest checking the state of lubrication and tightness of the anchoring screws on the operator.
To check the efficiency of the safety devices, move an object in front of the photocells when gate is closing. If the operator inverts
the motion or stops, the photocells are working properly.
This is the only maintenance procedure to be carried out with the power source connected.
Before performing any maintenance procedures, cut off the main power, to prevent possible accidents due to gate movement.
To clean the photocells use a water dampened cloth. Do not use solvents or other chemical products which may ruin the devices.

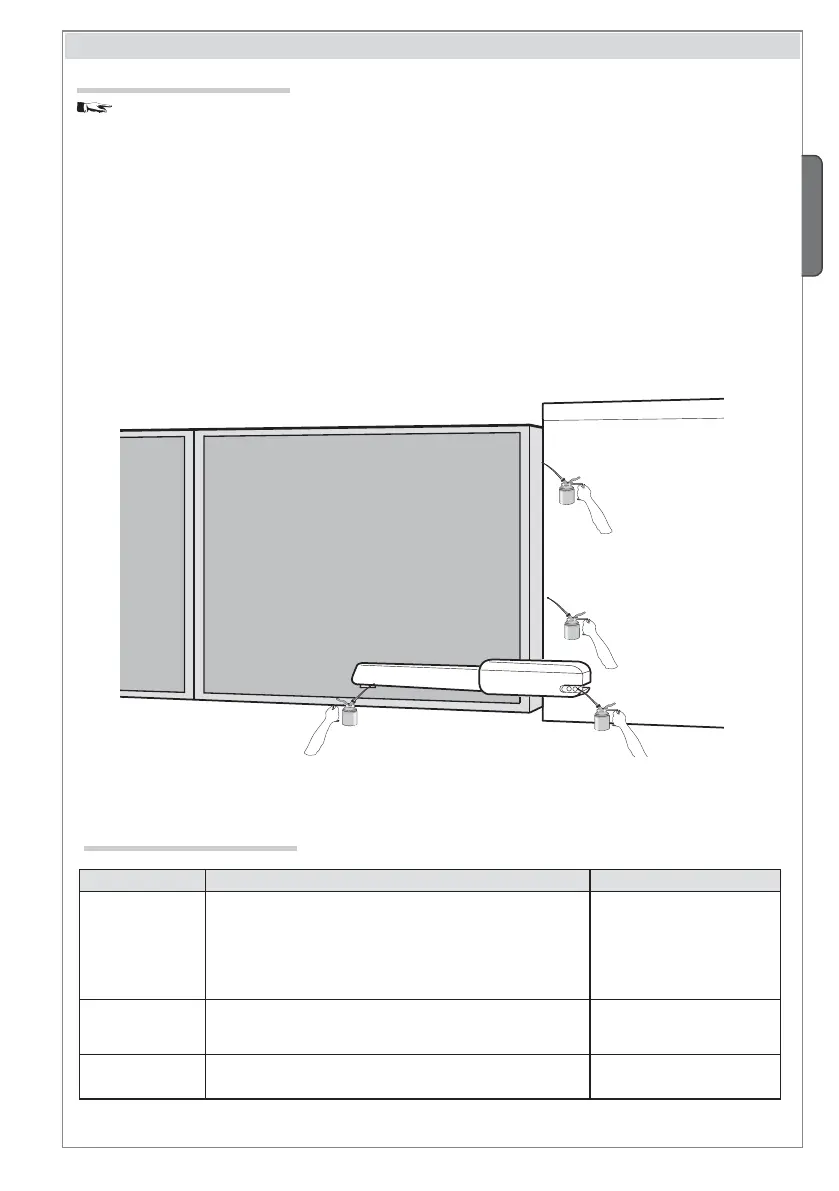

In the event of any strange vibrations or squeaking, lubricate the joints with grease, as shown in the diagram.
Make sure there are no plants within the photocell’s beam, and that the gate motion is free of any obstacles.
MALFUNCTIONS POSSIBLE CAUSES CHECK AND REMEDIES
The gate will not
open nor close
• There is no power
• The gearmotor is released
• The transmitter’s batteries are run down
• The transmitter is broken
• The stop button is either stuck or broken
• The opening/closing button or the keyswitch are stuck
• Check that the power is up
• Lock gearmotor (Chapt. 5.6)
• Replace batteries
• Call assistance
• Call assistance
• Call assistance
The gate opens but
will not close
• The photocells are engaged • Check that photocells are cle-
an and in good working order
• Call assistance
The flashing light
does not work
• The bulb is burnt • Call assistance
7.2 Trouble shooting

CAME ATI series Specifications

General

Operating Temperature	-20°C to +55°C
Warranty	2 years
Power Supply	230V AC
Max Gate Weight	800 kg
Max Gate Length	5 m
Opening Time	15 seconds
Thrust	3000N
Duty Cycle	30%
Control Options	Radio control
Safety Features	Obstacle detection
Manual Release	Yes
