Page 12 - Manual FA01295-EN - 03/2023 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions

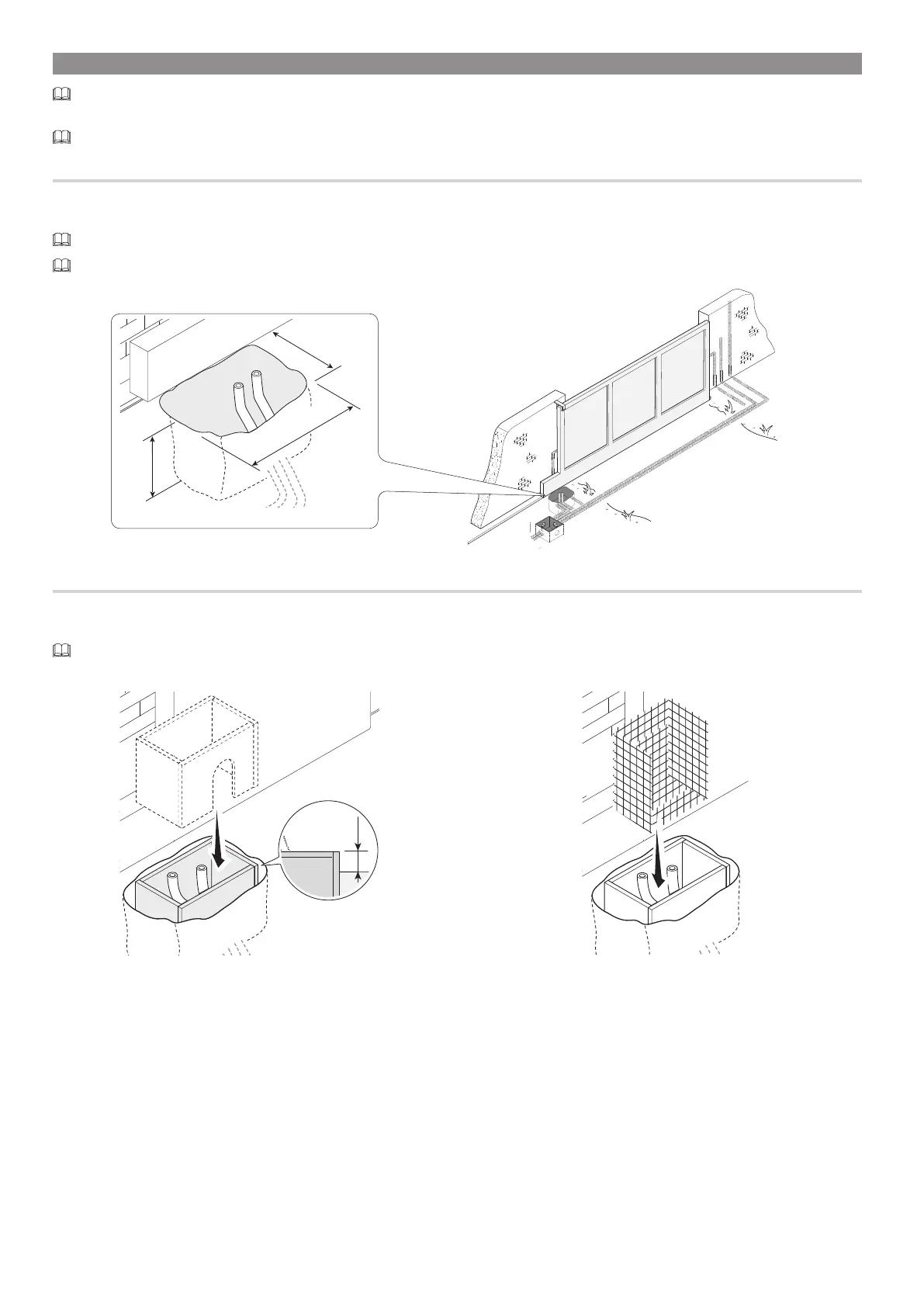

INSTALLATION
The following illustrations are examples only. The space available for fitting the operator and accessories varies depending on the area where it is installed. It is
up to the installer to find the most suitable solution.
The drawings show an operator fitted on the left.
Preliminary operations
Dig a hole for the foundation frame.
Set up the corrugated tubes needed for the wiring coming out of the junction pit.
For connecting the gearmotor we suggest using a Ø 40 mm corrugated tube, whereas for the accessories we suggest Ø 25 mm tubes.
The number of tubes depends on the type of system and the accessories that are going to be fitted.
300
500
450
Laying the anchoring plate
Set up a foundation frame that is larger than the anchoring plate.
Insert the foundation frame into the dug hole.
The foundation frame must protrude by 50 mm, above ground level.
Fit an iron cage in the foundation frame to reinforce the concrete.
