Page 20 - Manual FA01295-EN - 03/2023 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions

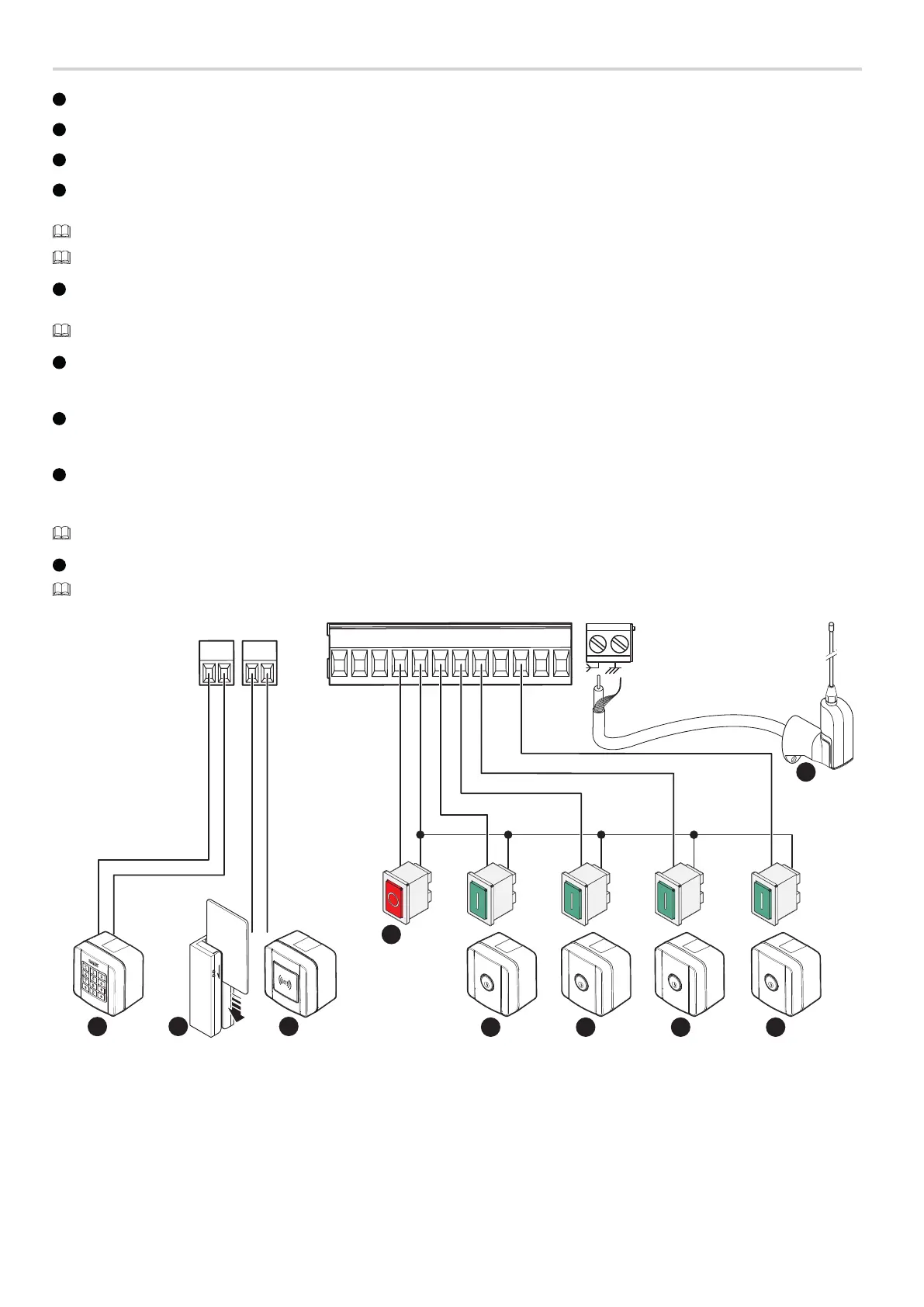

Command and control devices
1
Keypad selector
2
Card reader
3
Transponder selector switch
4
STOP button (NC contact)
This stops the operator and excludes automatic closing. Use a control device to resume movement.
When the contact is being used, it must be activated during programming.
See the [F1 – Total stop] function.
5
Control device (NO contact)
Open command
When the [F6 – Hold-to-run] function is active, a control device must be set to OPEN.
6
Control device (NO contact)
PARTIAL OPENING command
7
Control device (NO contact)
CLOSE command
8
Control device (NO contact)
Step-by-step command
Sequential command
See function [F7 - 2-7 command].
9
Antenna with RG58 cable
If the chosen signalling device can be fitted with an antenna, use the terminal shown to connect it.
10
S1
GND
AB
11 TS 1 2 3 3P 4 5 7 CX CY
32
1
5 6 7 8
4
9
