Fastening the operator in place
Only fasten the operator after adjusting the pinion-rack coupling.
Fasten the operator to the anchoring plate using stoppers and nuts.

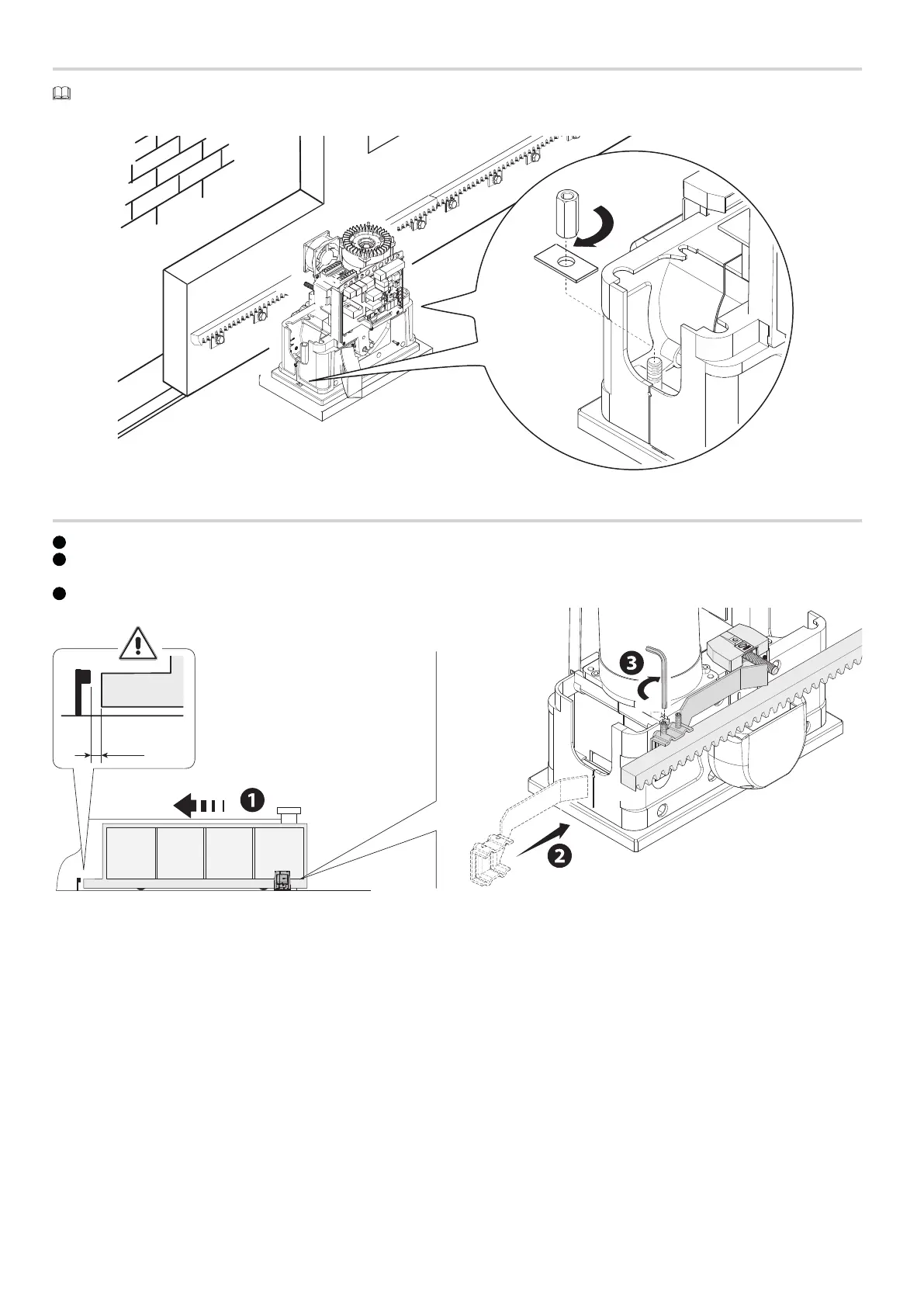

Establishing the limit-switch points
1
Open the gate.
2
Insert the opening limit-switch tab in the rack.
The spring must trigger the microswitch.
3
Fasten the opening limit-switch tab using the grub screws supplied.
1
2
~ 20 mm
