ELECTRICAL CONNECTIONS

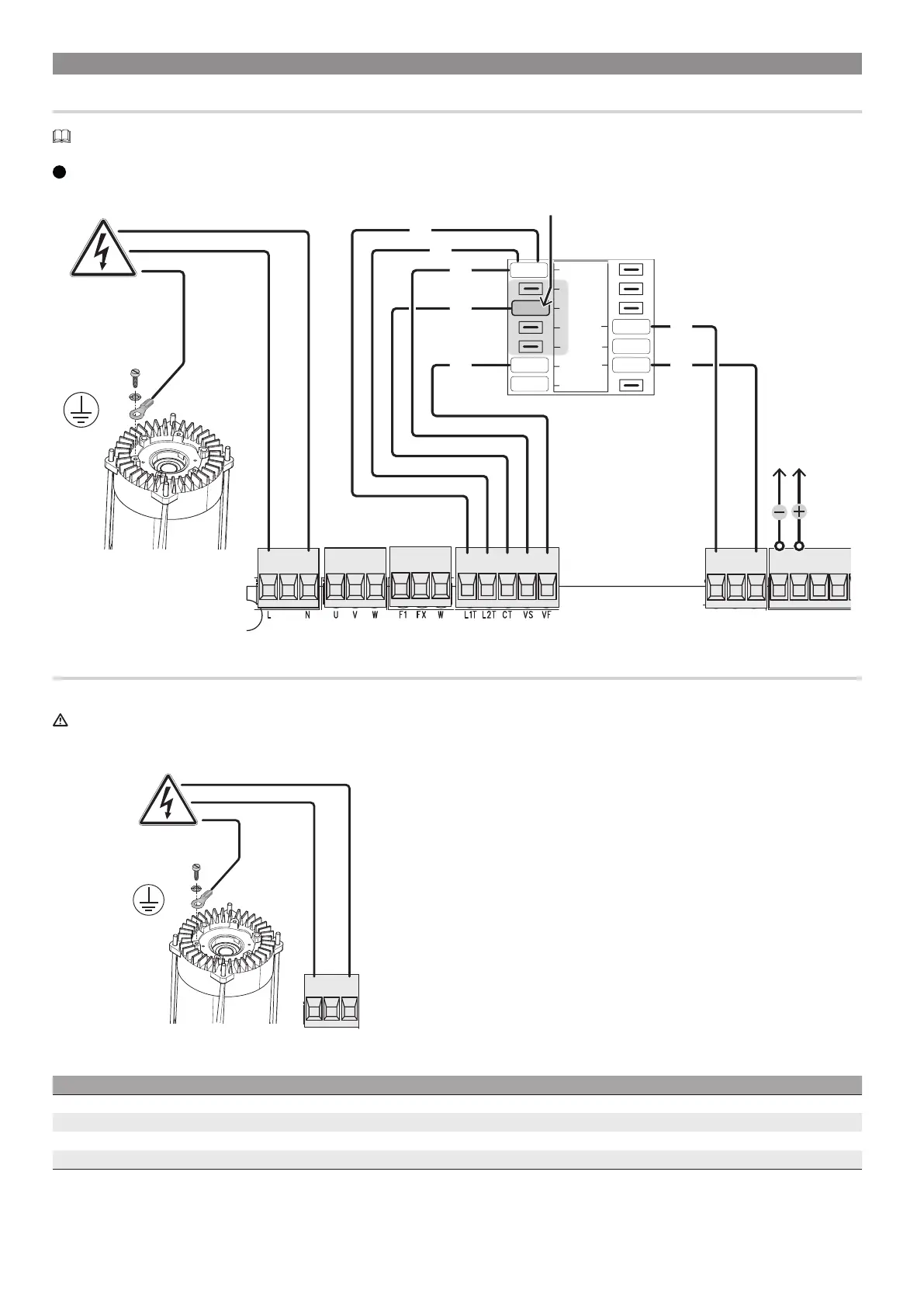

Passing the electrical cables
Connect all wires and cables in compliance with the law.
The electrical cables must not touch any parts that may overheat during use (such as the motor and transformer).
1
Cable glands on the board holder
10 11 TS 1
LNUVWE1EXW L1T L2T CT VS VF
24V 0
0
17
24
FR
1
2
3
4
SP
0
120 / 230 V AC
50/60 Hz
1
2
3
4
5 8
9
7
6
Power supply
Make sure the mains power supply is disconnected during all installation procedures.
Before working on the control panel, disconnect the mains power supply and remove the batteries, if any.
Connecting to the mains (230/120 V AC - 50/60 Hz)
LN
Maximum capacity of contacts
Device Output Power supply (V) Power (W)
Accessories 10 - 11 24 AC -
Additional light W - EX 230 60
Flashing beacon W - E1 230 AC -
Operator status warning light 10 - 5 24 AC -
