5 - Manual FA01413-EN - 02/2020 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions
PRODUCT DATA AND INFORMATION
Key
This symbol shows which parts to read carefully.
This symbol shows which parts describe safety issues.
This symbol shows what to tell users.
The measurements, unless otherwise stated, are in millimetres.
Description
801MS-0040
BX604AGS - Operator complete with electronic board with programming display, built-in radio decoder and mechanical limit switches for sliding gates up to 400 kg
in weight and 14 m in length.
801MS-0050
BX608AGS - Operator complete with electronic board with programming display, built-in radio decoder and mechanical limit switches for sliding gates up to 800 kg
in weight and 14 m in length.
801MS-0051
BX608ALS - Operator complete with electronic board with programming display, built-in radio decoder and mechanical limit switches for sliding gates up to 800 kg
in weight and 14 m in length.
Intended use
Sliding gate solution for residential buildings
Any installation and/or use other than that specified in this manual is forbidden.

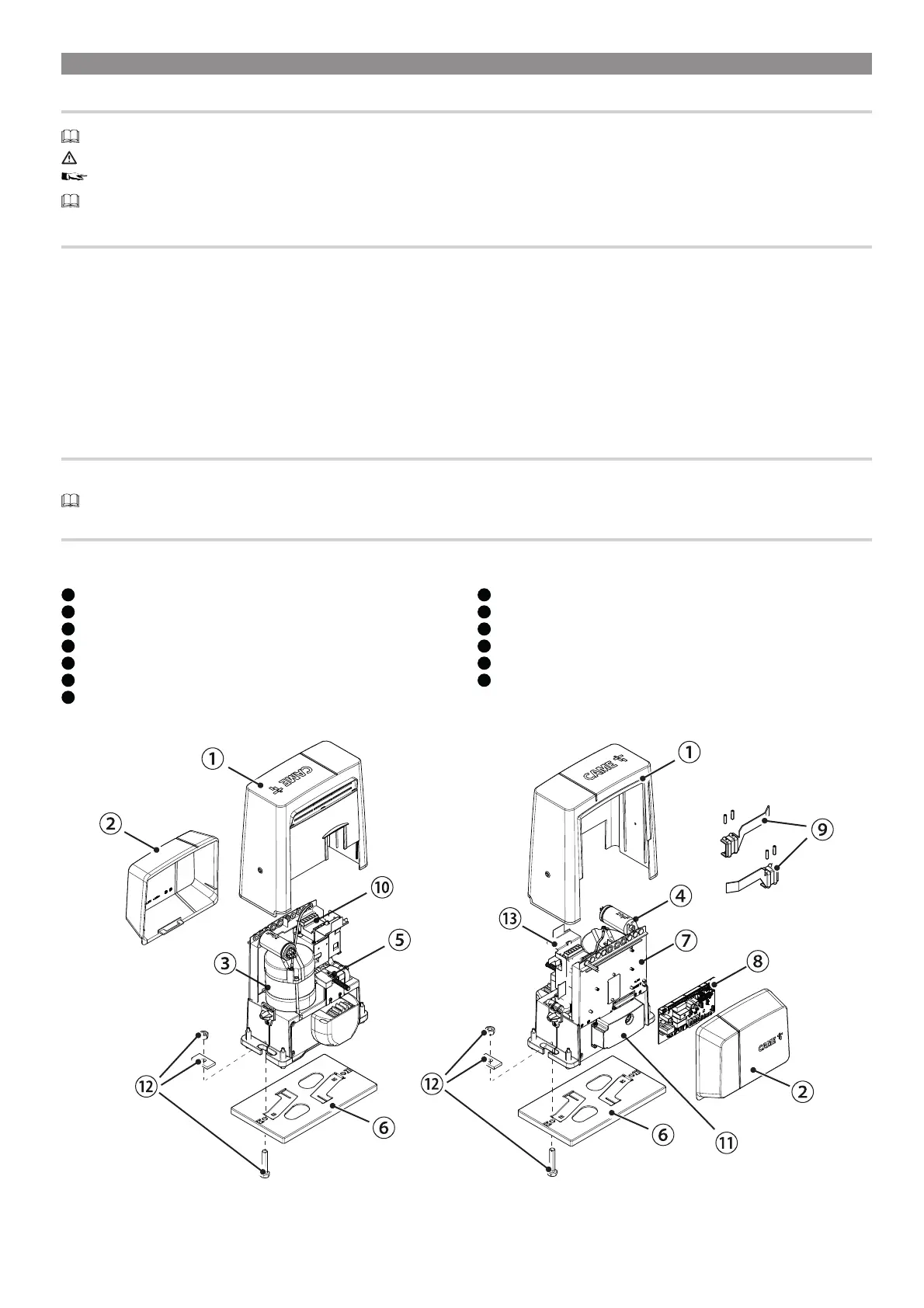

Description of parts
Operator
1
Cover
2
Front cover
3
Gearmotor
4
Capacitor
5
Mechanical limit switch
6
Anchoring plate
7
Control board holder
8
Control board
9
Limit-switch tabs
10
Transformer
11
Release hatch
12
Fixtures and fittings
13
Bracket to fasten accessories
