Operating cycles
The operating cycle calculation considers a gate that is of standard length (the sliding part), professionally installed, free of any mechanical issues and/or accidental
friction points, and measured at an ambient temperature of 20°C, as stated in EN standard 60335-2-103.
MODELS BX604AGS BX608AGS BX608ALS
Cycles/hour (no.) 17 17 17
Consecutive cycles (no.) 6 6 6
Standard reference length of the sliding part (m) 4 4 4
For gates where the sliding part is of a different length to the standard measurement, please see the graphs.

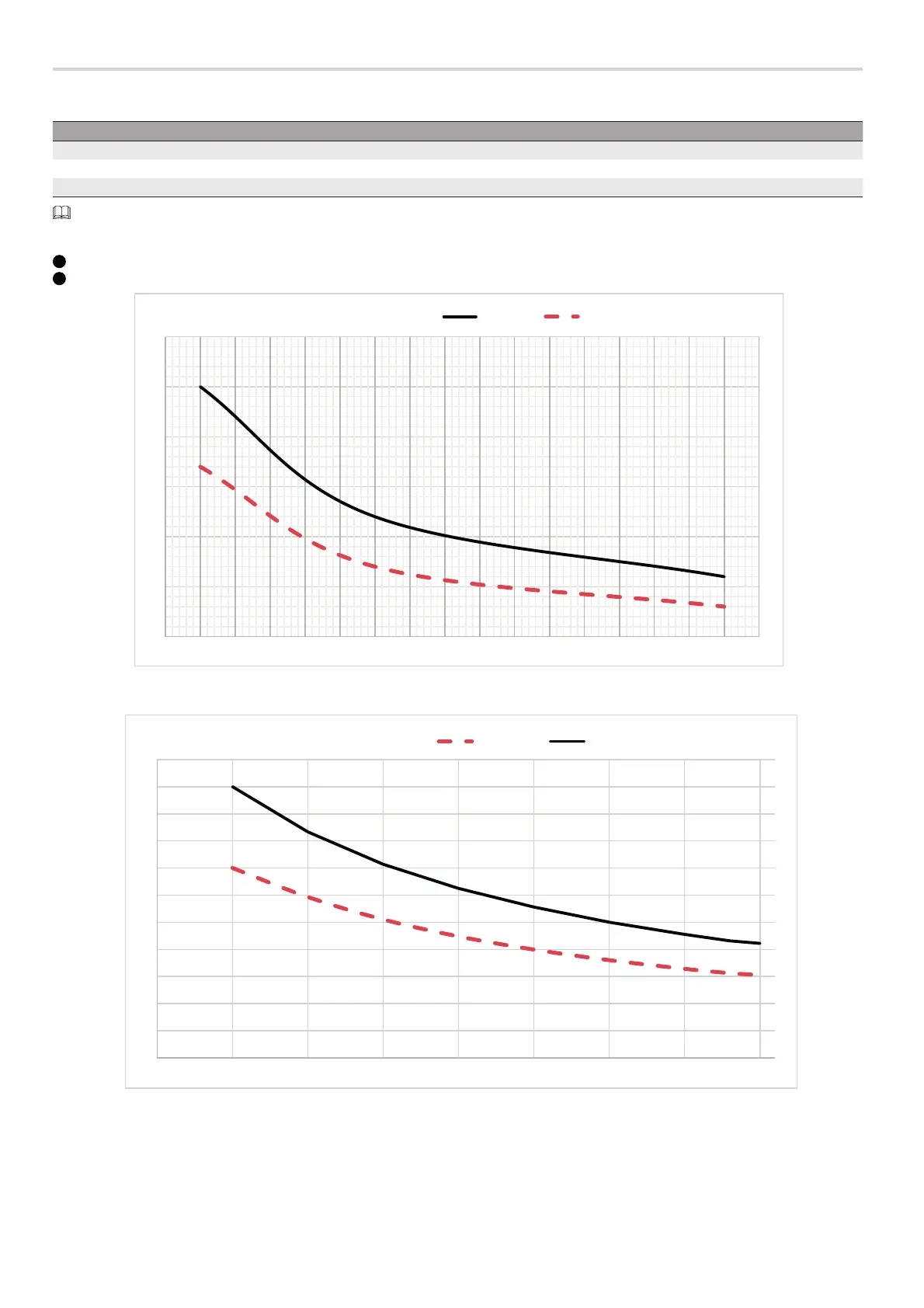

Cycles/hour graph
A
Number of cycles
B
Gate length
0
5
10
15
20
25
30
2 2,5 3 3,5 4 4,5 5 5,5 6 6,5 7 7,5 8 8,5 9 9,5 10 10,5
20°C 55°C
Consecutive cycles graph
0
1
2
3
4
5
6
7
8
9
10
11
22,533,544,555,56
55°C 20°C
