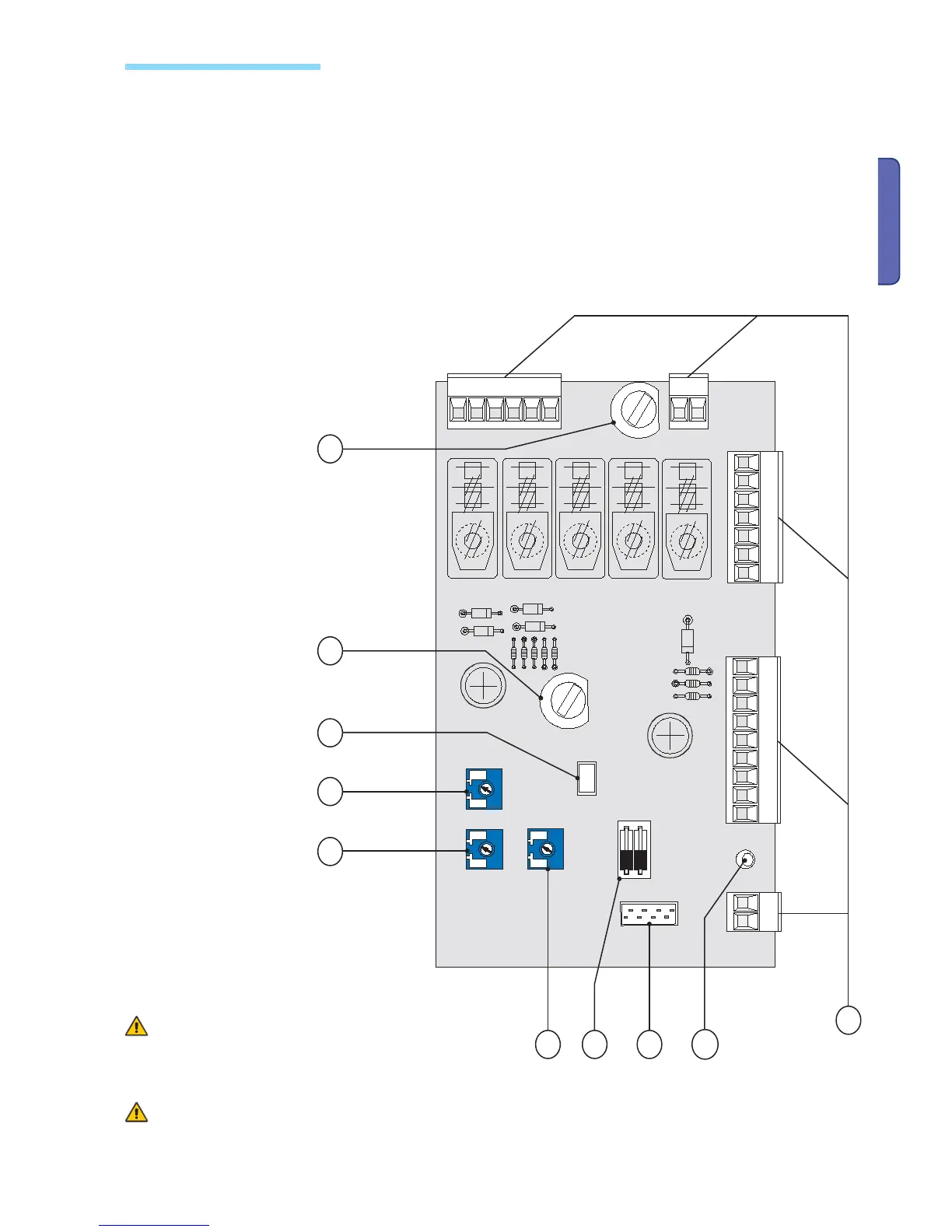

6.3 Main components
Warning! Before acting on the device,
cut off the mains power supply.
1. Connecting terminals
2. Line fuse
3. Accessories fuse
4. Buttons to memorise radio code
5. Trimmer for adjusting the delay of
gearmotor 2
6. Working time adjuster trimmer
7. Automatic closing time adjuster trimmer
8. Features selector
9. Radio frequency card socket
10. LED
Connect the wires coming out of the
board to the condenser connectors.
