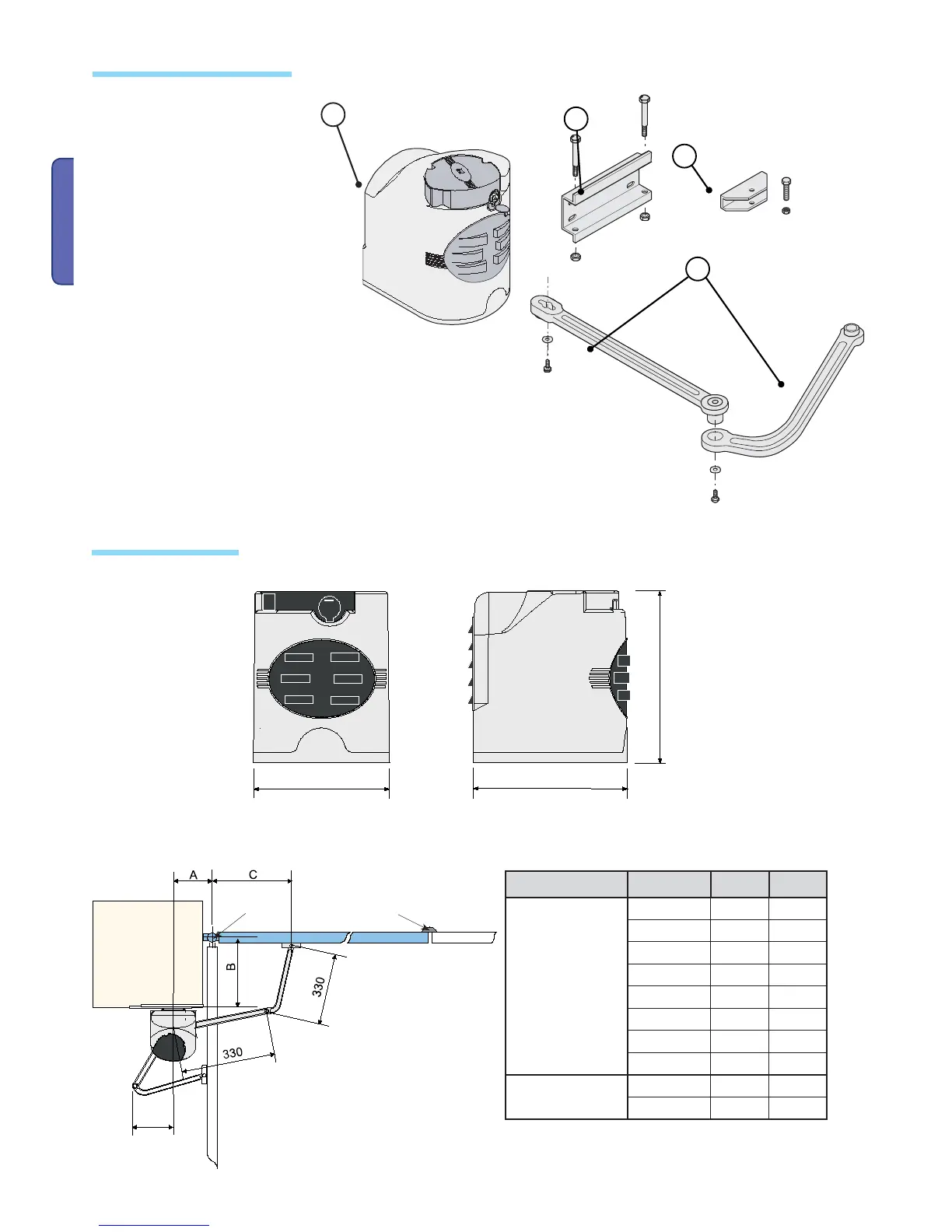

4.4 Dimensions
4.3 Description of parts
1. Operator
2. Post-fastening bracket
3. Articulated arm
4. Gate-fastening bracket
Hinge
Closing
strike plate
i = 240 mm max.
with 90° opening
Post
Opening angle
ABC
90°
137÷210 0 430
137÷205 50 430
137÷200 75 430
137÷195 100 430
137÷190 125 430
137÷185 150 400
137÷180 175 400
180÷175 200 400
110°
180÷210 0 430
200÷205 50 430
