4 01/2015
© CAME S.p.A. - The data and information in this manual may be changed at any time and CAME S.p.A. is under no obligation to inform users of said changes

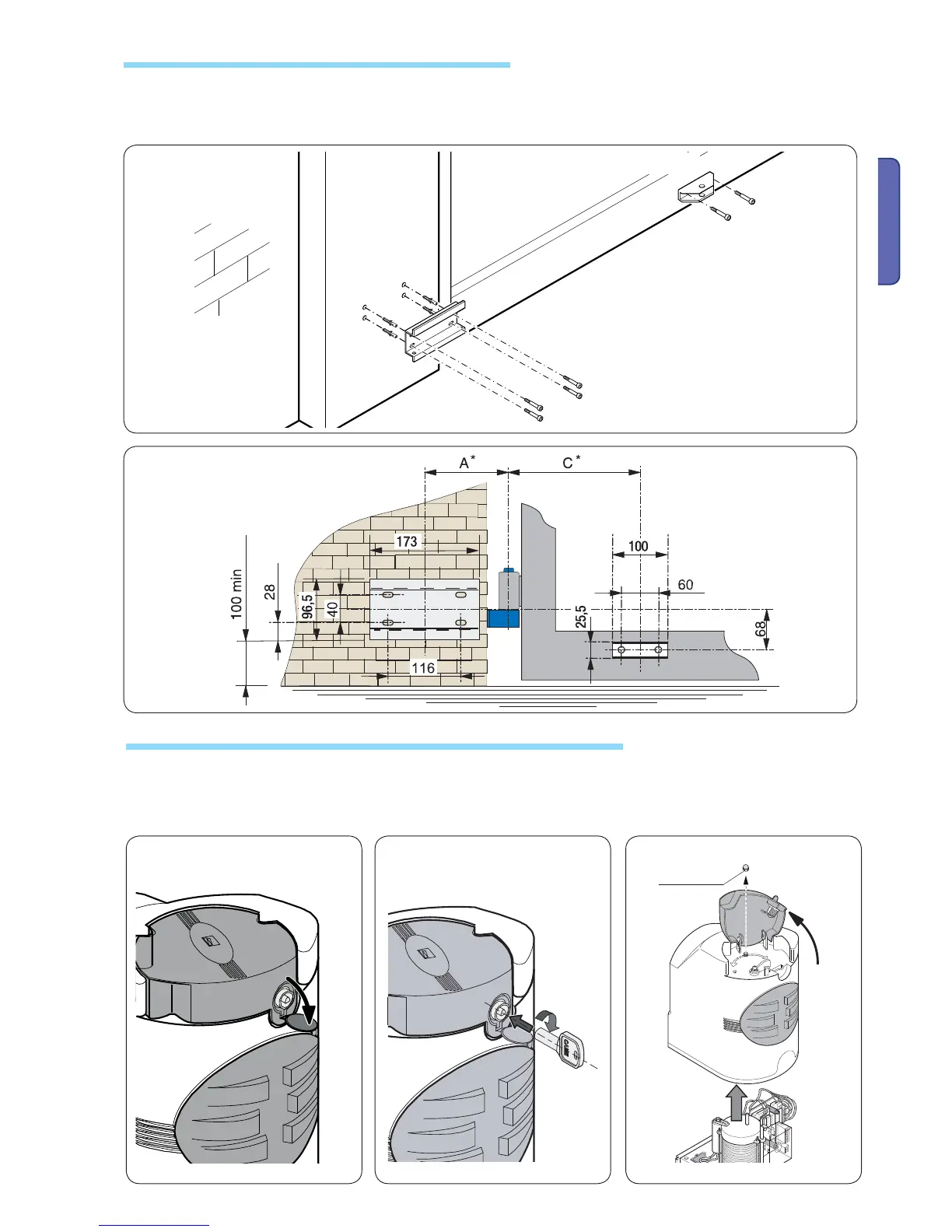

5.5 Applying brackets for fastening to the gate post
- Fasten the bracket to the post using M8 screws and ø 14 plugs while respecting the 100 mm minimum distance from the ground.
- Fasten bracket A to the gate leaf by welding it or using M6 screws and respecting the measurements in the table 2.2 Limitations
to use and the 68 mm level-di erence between the two brackets
Post bracket
Gate bracket A
* See chap. 4.4 Dimensions
Open the lock cover (1).
Insert the key, push it down and turn it clockwise (2).
Lift the cover, loosen the M4 hex nut and remove the cover from the gearmotor assembly (3).
5.6 Installing the gearmotor
