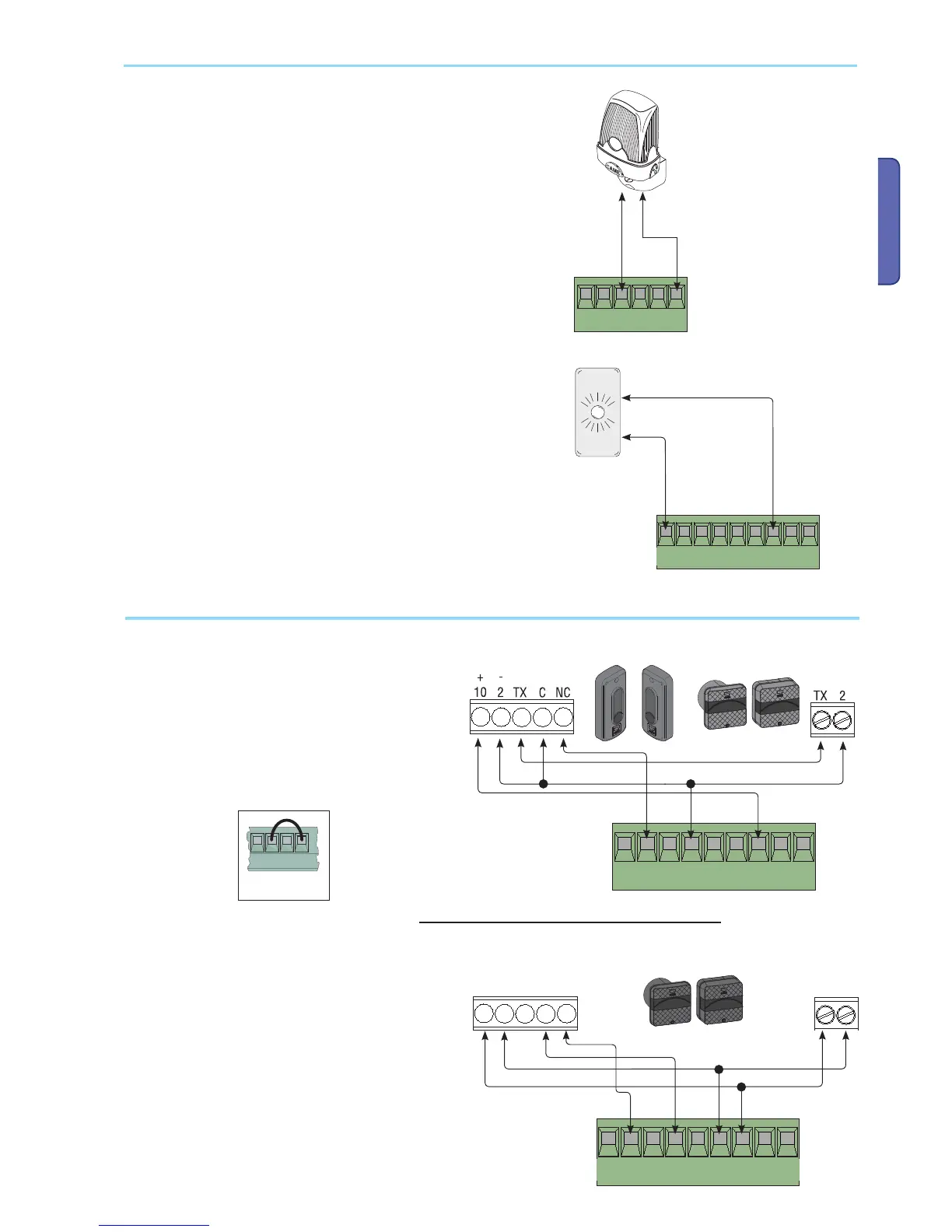

Warning devices
Gate open warning light (contact rated for: 24 V - 3 W Max)
Warns of open gate position, turns off when gate is closed.
Flashing light (contact rated for: 230V AC - 25W Max) Flashes while
gate opens and closes.
Safety devices
C1 = (N.C.) contact for reopening while closing
Input for safety devices like photocells, sensitive edges
and other devices that comply with EN 12978 regulations.
While the door is closing, opening the contact will invert
movement until it is fully opened.
If unused, short-circuit the contact 2 = C1.
C1 = (N.C. contact) for reopening while closing
if unused
